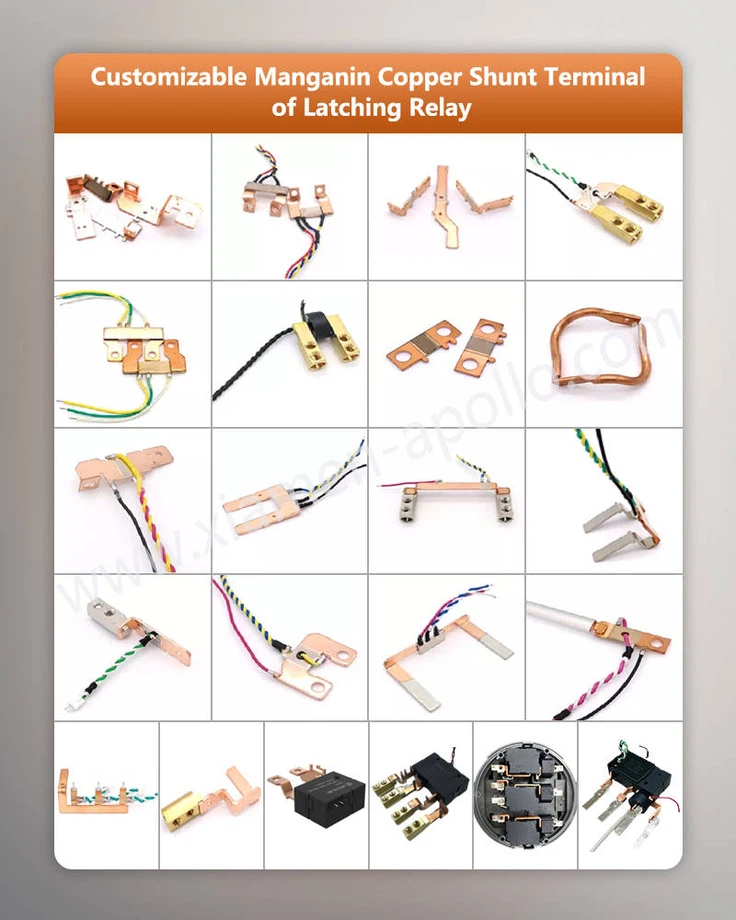

Product Profile of Manganin Shunt for Electricity Meter
Manganin Shunt for Electricity Meter is a precision component used in electricity meters to measure current by converting it into a small, measurable voltage drop. It consists of an alloy, typically composed of copper, manganese, and nickel, which is chosen for its excellent stability and low-temperature coefficient of resistance.
Product Properties
Product Properties
High Accuracy
Electric Meters Manganin Shunt is designed to provide consistent and highly accurate current measurement over a wide range of conditions. Its low-temperature coefficient ensures that the resistance remains stable, even when temperatures fluctuate, ensuring precise readings in metering applications.
Low Thermal EMF
One of the key properties of Manganin alloy is its low thermal electromotive force (EMF) when connected with copper. This minimizes errors due to thermal voltage differences, which is crucial for precision applications like electricity meters.
Good Mechanical Strength
Manganese Copper Stamping ensures that the shunt has excellent mechanical properties, making it durable and able to withstand physical stress and deformation. This is important in electric meters, where long-term reliability is a key factor.
Stable Resistance Over Time
The resistance of Manganin Shunt remains remarkably stable over time, even after extended use, which is critical for maintaining accuracy in electricity meters over many years.
Technical Advantages
Technical Advantages
Temperature Stability
One of the primary advantages of Copper Manganin Shunt is its low-temperature coefficient of resistance, meaning that the resistance remains constant over a wide temperature range. This ensures that the shunt performs accurately even under fluctuating environmental conditions.
Minimal Drift
Electric Meters Manganin Shunt exhibits minimal drift in resistance over time, making it ideal for applications where long-term accuracy and stability are essential. This ensures that electricity meters using these shunts maintain consistent performance throughout their lifespan.
High Current Handling
Copper Manganin Shunt components are capable of handling high currents without significant degradation in performance. This makes them suitable for use in electric meters where high current accuracy is necessary.
Storage Methods
| Dry Environment | Store Electric Meters Manganin Shunt in a dry and controlled environment to prevent moisture-induced corrosion. This is important as any oxidation or corrosion could compromise the shunt's precision and electrical properties. |
| Anti-Oxidation Packaging | For long-term storage, it's recommended to use anti-oxidation packaging, such as sealed plastic bags or vacuum-sealed packaging, to protect the Copper Manganin Shunt from air and humidity exposure. |
| Organized Storage | Clearly label and store shunts according to their size and resistance values to ensure easy identification and retrieval. Proper organization also reduces the risk of damage due to improper handling. |
| Avoid Physical Stress | Store shunts in padded containers to avoid physical damage, such as bending or deformation, which could affect their mechanical properties and lead to inaccurate measurements. |
