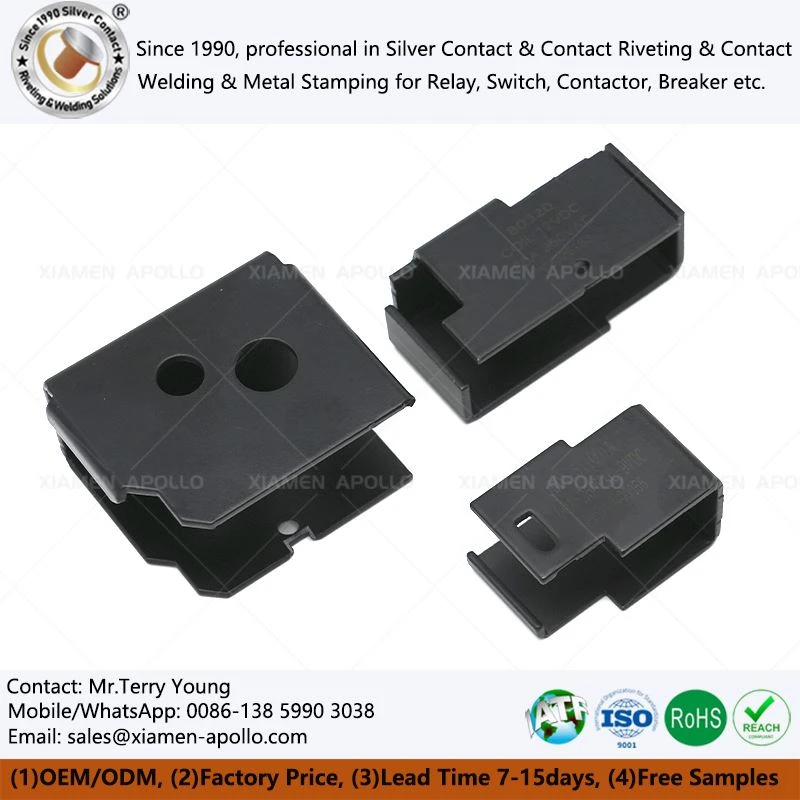

What is the Relay Shield Cover?
Relay Shield Cover components made from cold-rolled carbon steel provide a formed metal enclosure for magnetic latching relays used in smart electricity meters. The steel substrate supports structural rigidity and low-frequency magnetic shielding when the cover geometry, material properties, and installation are appropriately specified. A powder-coated surface helps protect exposed steel against corrosion. Custom stamping, forming, coating, and dimensional inspection can be arranged to match customer drawings, relay assembly interfaces, and production-volume requirements.
Technical Specifications & Materials of Stamped Metal Cover
Raw Material Selection & Cold Rolling
SPCC cold-rolled steel sheet is selected for its stable initial magnetic permeability and predictable mechanical spring-back behavior. Cold-rolling refines grain boundary structure, ensuring uniform flux density distribution across the shield geometry.
Precision Progressive Stamping
Multi-stage progressive dies control piercing, forming, and blanking operations in a single automated stroke. This process eliminates burrs that cause micro-shorts or localized dielectric breakdown during relay operation.
Dimensional Consistency Under Thermal Stress
Precision tool design compensates for metal relaxation and stress relief during high-temperature powder coating bake cycles, preserving strict mounting alignment tolerances.
Direct Factory Customization
Custom tooling accommodates various latching relay frame configurations, offering tailored knockout slots, mounting tabs, and custom wall thicknesses for OEM applications.
Low-Frequency Magnetic Shielding in Smart Meter Relays
Shielding Function and Design Limits
A steel shield cover can redirect low-frequency magnetic flux because of the substrate's magnetic properties. Actual shielding depends on material permeability, thickness, enclosure shape, field direction, and the presence of openings or assembly gaps.
Protection of Magnetic Latching Relay Operation
Magnetic latching relays use magnetic forces to maintain or change contact states. External magnetic fields may affect operation under certain combinations of field strength, orientation, relay construction, and operating conditions.
Integration Inside Smart Electricity Meters
In smart electricity meters, the shield cover is typically fitted around or near the magnetic latching relay assembly. Its shape must accommodate the relay body, terminals, mounting points, and adjacent insulating components without interfering with electrical clearances or mechanical movement.
Verification of Shielding Performance
A useful validation plan defines the magnetic field frequency, amplitude, orientation, measurement position, and baseline condition. The test should compare the unshielded and shielded assembly using the same setup.
Frequently Asked Questions about Electromagnetic Interference Protection Cover
What prevents the electrostatic powder coating from peeling at sharp stamped edges?
+
-
Our manufacturing process utilizes deburring operations combined with optimized electrostatic charge parameters. Powder particles wrap around edge radii evenly before thermal cross-linking, eliminating bare metal exposure and preventing edge flaking during transport and automated insertion.
How do you maintain dimensional tolerances after high-temperature curing?
+
-
Continuous die tooling includes precise spring-back and thermal-expansioncompensation factors. Stamped SPCC parts undergo stress-relieved forming, ensuring dimensions and mounting planarity remain within ±0.02mm after passing through 200°C powder-curingovens.
What is the dielectric breakdown rating of the powder-coated insulating layer?
+
-
The electrostatic epoxy-polyester coating layer maintains a nominal thickness of 60 to 100 μm. This delivers dielectric withstand capability exceeding 2.5 kV AC at 50 Hz, effectively preventing high-voltage flashover between internal switching contacts and grounded external shields.
Can this shield cover be customized for specific latching relay footprints?
+
-
Yes. As a direct China factory manufacturer, we engineer custom progressive stamping dies based on customer CAD drawings. Mounting tab locations, lead clearance cutouts, overall depth, and wall thickness can all be tailored to match your relay specs.
What is the minimum order quantity and sample lead time for custom designs?
+
-
Mass production minimum order quantities start at 1,000 pieces, with automated progressive die lines capable of delivering over 500,000 units monthly per customized tool set.
contact us
Submit your relay drawings and shielding requirements now to obtain a manufacturing feasibility review, custom tooling assessment, and factory quotation for your Relay Shield Cover wholesale project.
