Auto-Tapping Screw

Found prominently on Self-Drilling Thread-Forming Screws and Self-Engaging Drilling Screws for Tapping, this hardened tip acts like a miniature drill bit. Its aggressive cutting edges efficiently penetrate sheet metal, plastics, wood composites, and even some castings, eliminating the need for pre-drilling. Flutes behind the point efficiently evacuate chips, preventing clogging and ensuring smooth penetration.

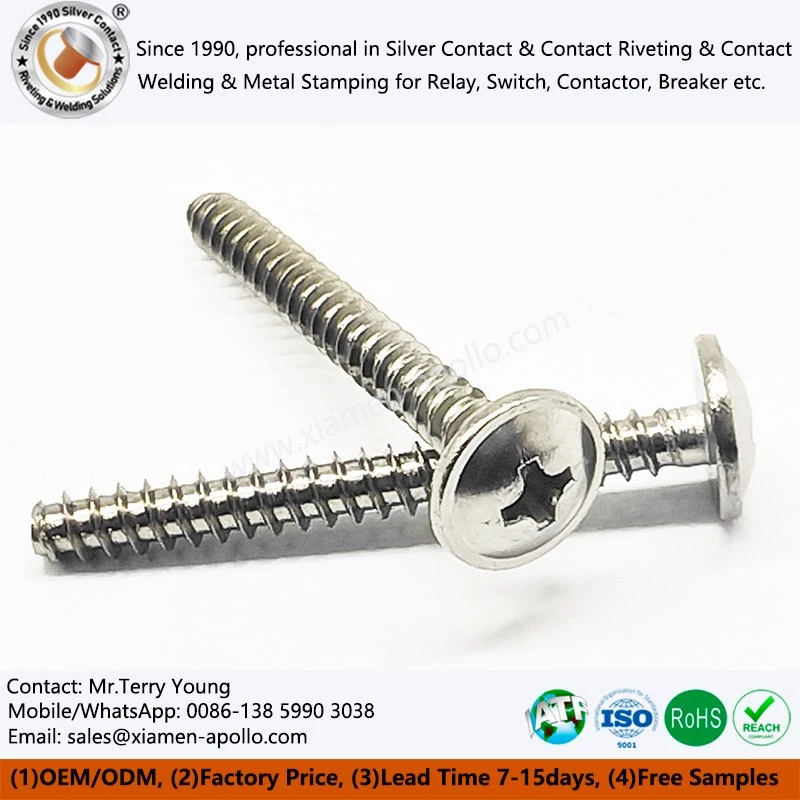

Following the drill point (or starting immediately on Fast Thread-Forming Screws), a precisely shaped thread profile engages the material. Instead of cutting material away like a traditional tap, this section displaces the substrate material, cold-forming mating threads. This process creates threads with higher strength and better fatigue resistance compared to cut threads, as the material grain flow follows the thread contour and work hardening occurs.

Many designs incorporate features like trilobular (tri-lobed) shanks or thread distortion zones. As the Quick Acting Screw for Tapping is driven, these features create controlled interference within the formed threads, generating radial pressure that significantly enhances resistance to vibrational loosening – a critical advantage in demanding applications.

Designed for efficient power transfer, common drives include Torx® (for high torque transmission and cam-out resistance), Phillips, or Pozidriv. Head styles range from pan and flat for flush finishes to hex washer heads for high clamp load and bearing surface.
