Products Description

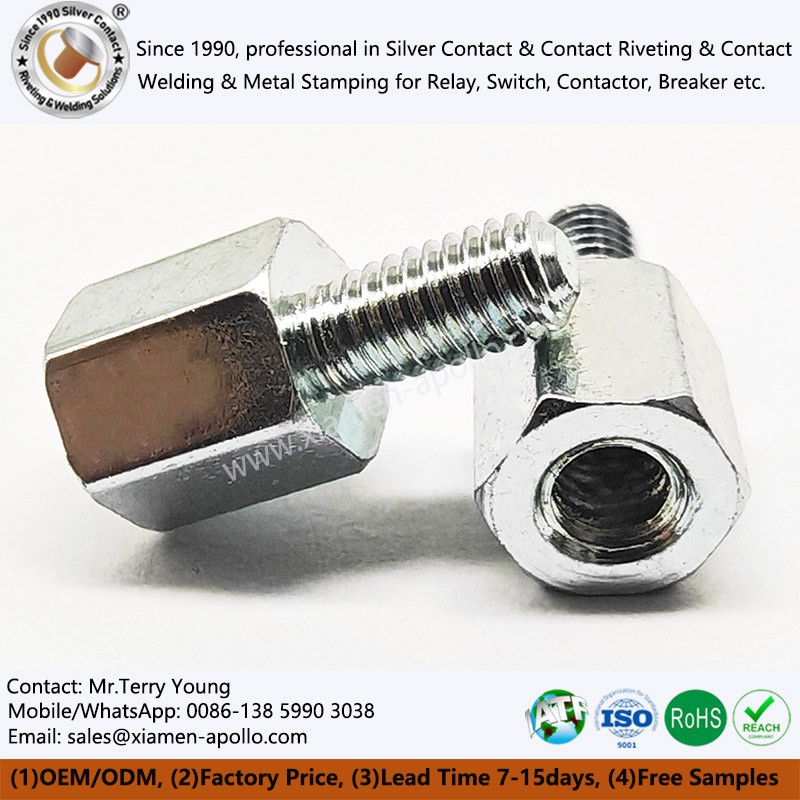

Hex Male-Female Standoff is a hexagonal fastener with internal and external threads. It features a double-ended structure integrated with an internal thread and an external thread, with a male thread on one end and a female thread on the other. This design enables it to connect with other components via the male thread and fix with other parts through the female thread, thereby providing an ideal spacing and support between two components.

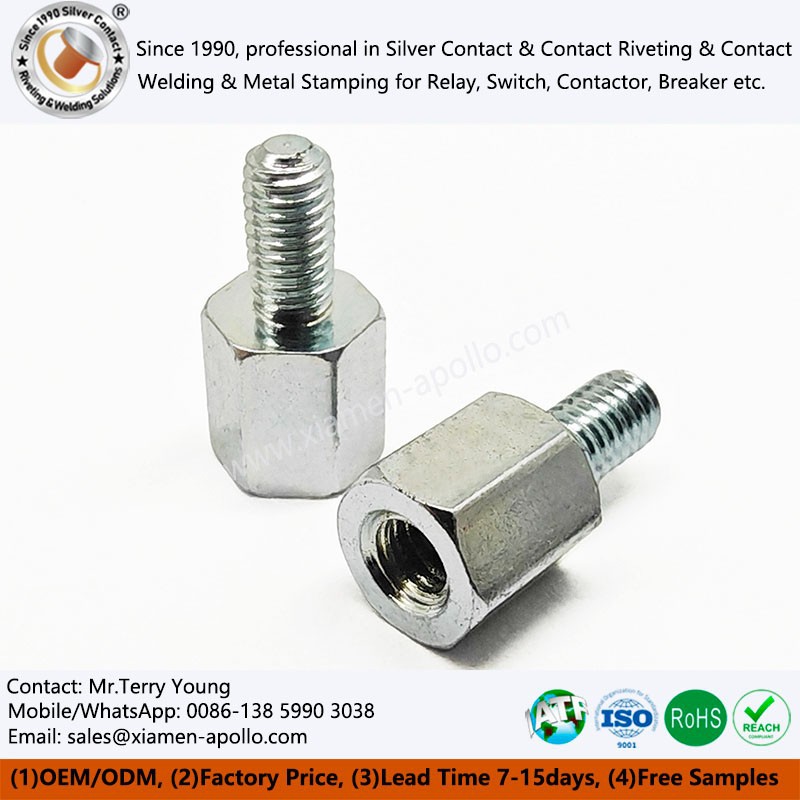

This type of standoff has a highly simplified structure, yet it effectively addresses the requirements for separation, support, and fixation in numerous engineering applications. Thanks to its hexagonal design, the Hexagon Standoff Screw allows for easier installation and disassembly, eliminating the cumbersomeness of traditional threaded structures.
Product Advantages
High-Strength Vibration Resistance
The tensile strength of the glass fiber reinforced material is more than twice that of ordinary nylon. Combined with the external hexagonal anti-slip structure, the force is evenly distributed during tightening, avoiding deformation caused by local stress concentration. In high-frequency vibration tests, the positioning offset of the Male-Female Hex Spacer is far lower than the industry average, ensuring the long-term stable connection between the PCB board and the chassis, and adapting to the high-vibration scenarios of industrial equipment and new energy vehicles.
High Insulation and Voltage Withstand Performance
The volume resistivity of the insulating matrix of the Zinc Plated Hex Male-Female Standoff is over 10^14Ω·cm, with excellent insulation and voltage withstand performance. It can effectively isolate the electrical connection between the PCB board and the chassis, avoiding the risks of short circuits and electric leakage. Meanwhile, the non-metallic material will not generate electromagnetic eddy currents, eliminating the electromagnetic interference caused by metal standoffs, ensuring the stability of high-frequency signal transmission, and adapting to the scenarios of communication equipment and precision electronics.
Integrated Structural Design

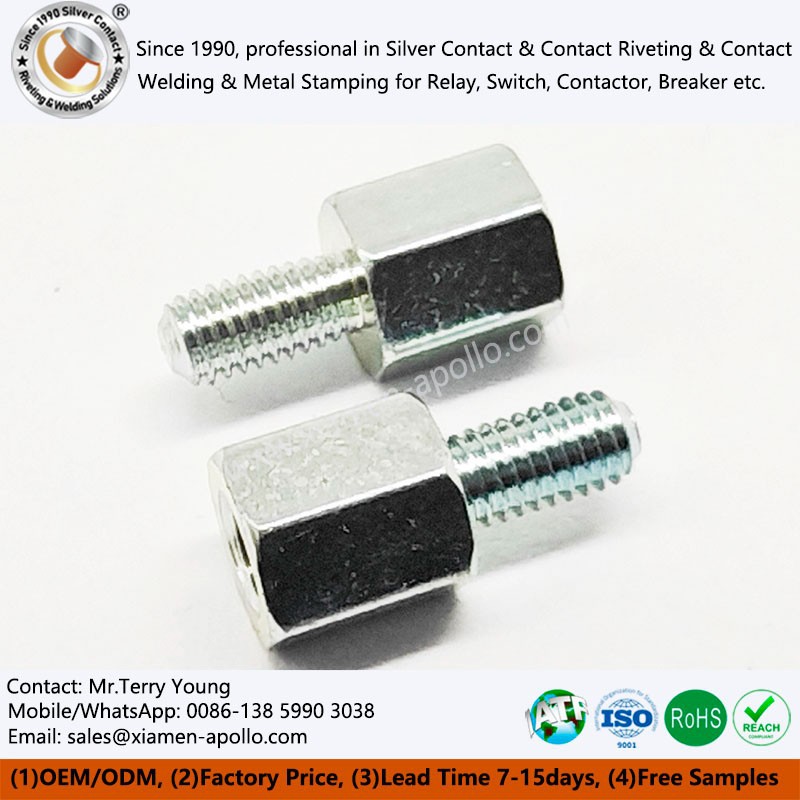

The integrated design of male and female threads enables fixation without additional nuts, reducing assembly steps by more than 30% and significantly improving production efficiency. The external hexagonal structure is compatible with standard wrench tools, enabling automated assembly of the Electrical Grade Hex Standoff. It also supports customized combinations of different thread specifications, adapting to the diverse installation requirements from miniature PCBs to large chassis.
Upgraded Weather Resistance and Protection
The material of the Precision Hex Male-Female Spacer has excellent resistance to high and low temperatures and corrosion, maintaining stable performance in a wide temperature range of -40℃~150℃ with no risk of surface coating peeling. For complex scenarios such as outdoor and vehicle-mounted applications, modified material options with water resistance and flame retardancy are provided to further enhance protection performance and ensure long-term reliable operation.
Customization and Services
Scenario-Based Customization Solutions
We provide full-dimensional customization services for Steel Hex Standoff Screw, covering materials to structural design. Tailored modified materials, such as glass fiber reinforced and ceramic-filled types, can be customized according to the load-bearing requirements and insulation specifications of equipment. For special installation needs, we offer non-standard threads and special-shaped hexagonal structure customization, which is adaptable to diverse scenarios ranging from miniature PCBs to large enclosures and enables direct assembly without the need for secondary modification by customers.
Full-Process Technical Support
Our technical team provides end-to-end support from support scheme design to performance verification: we assist in evaluating the load and environmental characteristics of equipment and recommend optimal materials and specifications; we provide free customized samples of Threaded Hex Male-Female Standoff, and cooperate with customers to complete reliability tests such as tensile and insulation tests to verify the actual adaptation effect. This helps customers quickly complete product verification and mass production switchover, effectively shortening the project cycle.
Global Delivery and Quality Assurance
We have the capability of global logistics delivery, with the following lead times: free samples in 1-2 days, newly molded samples in 20-30 days (including new mold development and sample production), and mass production orders in 15-20 days (after order confirmation and payment). All products are certified to ISO9001-2015, IATF16949, and other standards, and comply with RoHS and REACH environmental protection regulations. Complete production and inspection records are retained for each batch of Hexagon Standoff Screw, supporting full quality traceability.
Application Scenarios
Industrial Control Equipment
In frequency converters and PLC control cabinets, Male-Female Hex Spacers support and isolate PCBs from metal enclosures. Their high insulation performance prevents electromagnetic interference, and excellent vibration resistance ensures stable equipment operation in industrial environments, meeting the continuous working requirements of automated production lines.
New Energy Vehicle Electronic Systems
In battery management systems (BMS) and motor controllers, Zinc Plated Hex Male-Female Standoffs provide PCB support and electrical isolation. The PPS high-temperature resistant material adapts to the high and low temperature working conditions of vehicles, and its flame retardant performance complies with automotive-grade safety standards, making it a key supporting component for new energy vehicle electronic systems.
Communications and Consumer Electronics
In 5G base stations and smartphones, Electrical Grade Hex Standoffs support RF modules and motherboards. The non-metallic material eliminates electromagnetic interference and ensures stable high-frequency signal transmission; the ultra-thin wall design adapts to the installation requirements of miniaturized equipment and improves space utilization.
High-Voltage Power Equipment
In high-voltage switchgear and electric metering equipment, Hex Male-Female Standoffs made of ceramic-filled nylon boast outstanding insulation and voltage resistance performance. They can isolate high-voltage circuits from grounded enclosures, avoid the risks of electric leakage and electric arc, and ensure the safe operation of power systems.
Contact Us
If you have any requirements concerning the procurement, selection, sample request, or customization of Hex Male-Female Standoff, or if you wish to obtain further information regarding product details, please do not hesitate to contact us. We will deploy a professional team to provide personalized one-on-one service, develop customized adaptation solutions, and guarantee stable supply, precise selection, and efficient procurement processes.
