Products Description

The Pointed Locating Bolt is a type of fastener specially designed for precise positioning and is widely used in the assembly and positioning of various mechanical devices and equipment. Thanks to its unique pointed design, this bolt can easily achieve accurate alignment between components, helping to improve assembly precision and reduce assembly errors, thus ensuring the stability and operational efficiency of the entire equipment system. The Spike Head Positioning Screw plays an indispensable role in industries requiring highly precise assembly, especially in automated production, heavy machinery, and electrical equipment.
This page is intended to provide comprehensive solutions for Hex Head Pointed Set Screws for professional purchasers and engineering clients around the world, helping you to efficiently and accurately position components in the production process, and improve the precision and stability of the production line.

Core Product Advantages

1. Zero-Deviation Positioning

The pointed head of the Hex Head Pointed Locating Bolt can automatically penetrate the insulating adhesive layer or soft metal layer during tightening, guiding the bolt to align precisely with the hole center with a positioning accuracy of ≤0.02mm. This completely solves the hole deviation problem caused by the side slip of traditional bolts, ensuring the coaxiality and contact reliability of electrical contacts.

2. Long-Term Stability Under High-Frequency Working Conditions

The optimized anti-loosening thread, combined with an optional thread locking agent, eliminates the risk of loosening for the Hex Head Pointed Bolt for Switchgear Assembly under high-frequency arc impact and vibration loads. Its high-rigidity core can withstand the instantaneous impact during equipment on-off cycles, preventing deformation and ensuring long-term stability of electrical connections.

3. Durability Guarantee in Harsh Environments

The multi-layer nickel/silver plating forms a dense protective layer, effectively isolating moisture and oxidation. In complex environments such as humidity and salt spray, the surface of the Electrical Grade Pointed Positioning Screw shows no rust or coating peeling, and its service life is more than twice that of traditional bolts.

4. High Installation Efficiency

The self-positioning pointed head design of the Spike Head Positioning Screw eliminates the need for additional positioning tools, improving installation efficiency by more than 30% compared with traditional bolts. Meanwhile, it avoids rework caused by positioning deviations, meeting the large-scale assembly requirements of electrical equipment.

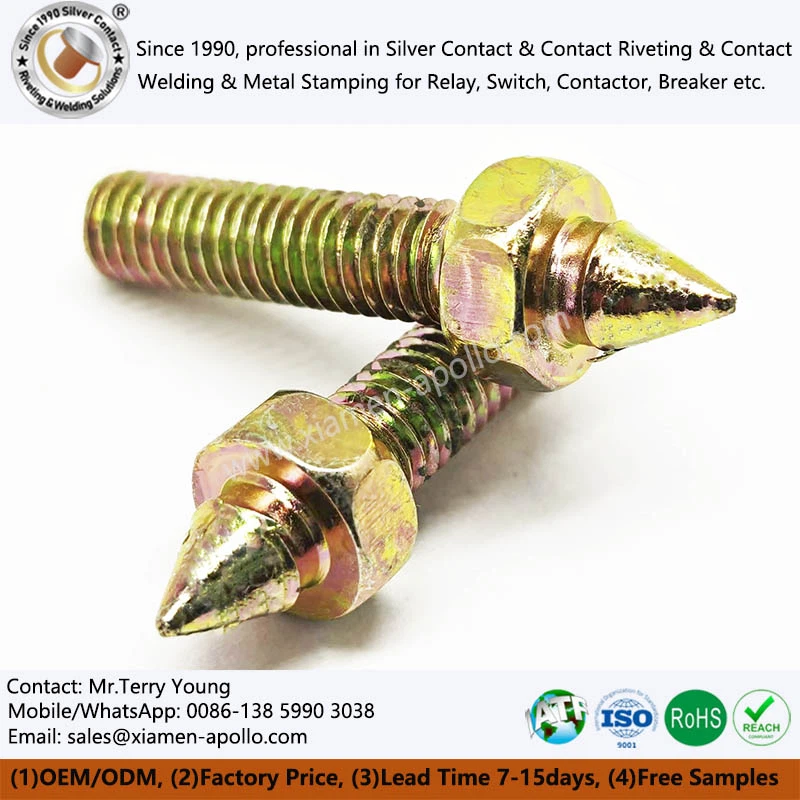

Hex Head Pointed Locating Bolt

Production Process

Material Selection

Material Selection: We select durable materials such as high-strength alloy steel or stainless steel to ensure that the Pointed Locating Bolt has sufficient hardness and corrosion resistance. The pointed end is specially hardened to maintain its sharpness and wear resistance during long-term use.

Cutting and Forming

technologies, all parts of the Hex Head Pointed Set Screw (including the pointed end, thread, and bolt head) are processed to standard dimensions. The precise forming process ensures a perfect fit between the bolt and the locating hole, improving positioning accuracy.

Hardening Treatment

The pointed end of the Hex Head Precision Pointed Alignment Bolt is usually subjected to hardening treatment to enhance its wear resistance and hardness. This process ensures that the pointed end can effectively penetrate and stably fix components without being easily worn or deformed due to long-term use.

Surface Treatment

To improve the corrosion resistance of the Hex Head Pointed Bolt for Switchgear Assembly and prevent rusting or oxidation, we adopt galvanizing, nickel plating, or other surface treatment processes to enhance its durability and oxidation resistance.

Quality Inspection

Each Electrical Grade Pointed Positioning Screw undergoes strict quality control and inspection during the production process, including checks on dimensions, threads, hardness, tensile strength, and other aspects, to ensure that the product complies with industry standards and has excellent performance.

Production Process of Pointed Locating Bolt

Application Scenarios

Circuit Breaker Assembly

Serving as the Spike Head Positioning Screw for the arc-extinguishing chamber and contacts inside the circuit breaker, its zero-deviation positioning ensures the coaxiality of the arc-extinguishing chamber and contacts. The shock-resistant and anti-loosening design withstands arc impact during short-circuit faults, guarantees the reliable breaking performance of the circuit breaker, and acts as a safety guarantee for the power distribution system.

Contactor Fixation

The Hex Head Pointed Set Screw is suitable for the installation and positioning of contactor coils and contacts. The pointed tip enables self-positioning to simplify the assembly process, while the shock-resistant and anti-loosening structure resists high-frequency vibration at the moment of power-on, ensuring the stable operation of equipment in scenarios such as industrial motor control.

Industrial Switch Panel Installation

The Hex Head Pointed Locating Bolt is applied to the positioning and installation of control panels, emergency stop switches, and other components of industrial equipment. Its multi-layer protective coating adapts to the complex working conditions of factory workshops, and the pointed tip positioning ensures the precise alignment of the panel and equipment, improving the overall assembly accuracy.

Application of Pointed Locating Bolt

Why Choose Us

Focus on High-Precision Positioning Technology

We have accumulated rich experience in the design and manufacturing of Hex Head Pointed Bolts for Switchgear Assembly, and are committed to providing customers with accurate positioning solutions. Our engineering team conducts in-depth research on the application requirements of each product. Through precise design and strict process control, we ensure that every Rainbow Zinc Plated Pointed Positioning Bolt can work stably in high-load and high-precision industrial environments.

Strict Quality Control and Standards

We have a rigorous quality management system. Every Electrical Grade Pointed Positioning Screw undergoes a number of precision tests before leaving the factory, ensuring that key parameters such as product dimensions, hardness, and tensile strength all meet international standards. We strive for excellence in every aspect, from the precision of thread dimensions and uniformity of surface treatment to the hardness of the bolt tip, to guarantee that each bolt can provide efficient positioning and stability for your equipment.

Customized Services to Meet Individual Needs

We understand that the needs of each customer and project are unique. We offer comprehensive customization services, providing tailored options for dimensions, materials, and surface treatment according to your specific application requirements. Whether it is material selection for a specific working environment or dimension adjustment for special components, we can provide customized solutions to ensure that every detail of the Pointed Locating Bolt meets your needs.

Global Technical Support and After-Sales Service

Our services cover the globe, enabling us to provide localized technical support and after-sales service for you. Whether you encounter technical difficulties in the selection or use of the Precision Pointed Alignment Bolt or experience product quality issues, our team of engineers will provide you with solutions in a timely manner. In addition, we also offer regular product operation training and technical guidance for customers, ensuring that you can use our products efficiently.

Why Choose Our Pointed Locating Bolt
