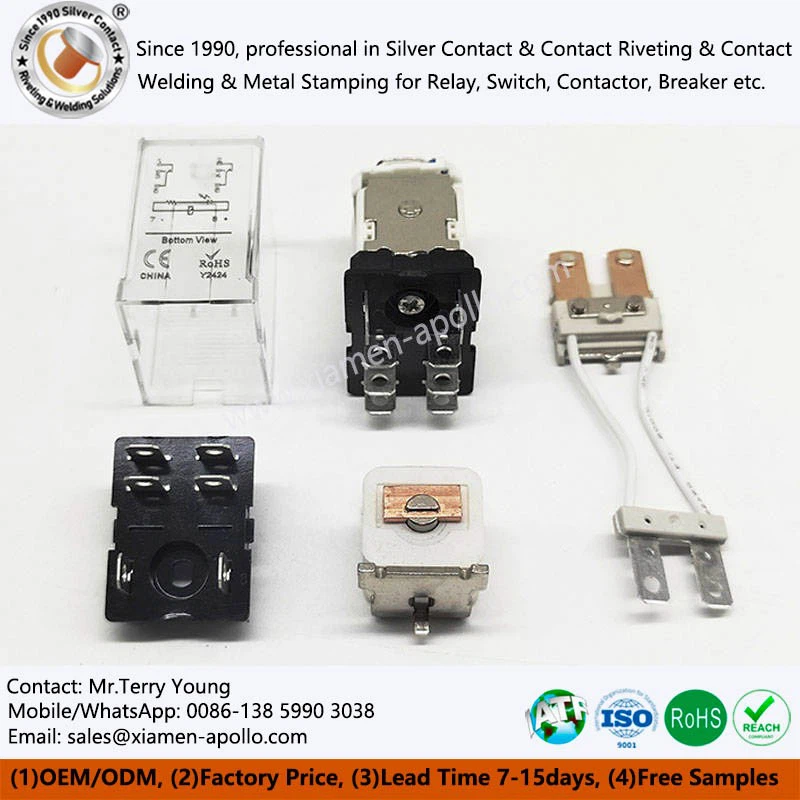

Yoke Metal Skeleton For Relay
Yoke Metal Skeleton For Relay

Yoke Metal Skeleton For Relay

Yoke Metal Skeleton for Relay is built from premium pure iron to optimize magnetic circuits for electromagnetic relays. Precision‑stamped with tight tolerances, this sturdy component supports coil assembly and suits automotive and industrial relays, with custom manufacturing support.
Send Inquiry
What is a Yoke Metal Skeleton for Relay?




Yoke Metal Skeleton For Relay


Yoke Metal Skeleton for Relay is a stamped ferrous frame used in electromagnetic relay assemblies to support the magnetic circuit and maintain the designed relationship between the coil, iron core, and armature. For relay manufacturers serving automotive control, industrial automation, and low-voltage equipment, the part can be developed to customer drawings with specified material grade, profile, mounting dimensions, and surface requirements. Custom stamping, tooling development, sample evaluation, and batch production can be quoted against the approved technical specification.



Key Selling Points of Relay Coil Yoke



Magnetic Circuit Support

The stamped yoke connects designated parts of the relay's magnetic path. Its geometry must match the coil, core, and armature arrangement to maintain the intended magnetic circuit and mechanical clearances.

01

Drawing-Controlled Stamping

Mounting holes, bend positions, overall profile, and formed heights can be controlled against the released engineering drawing. Critical-to-function dimensions should be identified before tooling design and included in the inspection plan.

02

Material Specification Control

DT4C or DT4E may be specified for applications requiring electric pure iron. Selection should be based on the relay's magnetic design, required material condition, and validated property limits rather than a generic purity claim.

03

Assembly Interface Consistency

Flatness, burr direction, edge condition, and mounting features can affect assembly fit and the relationship between the yoke and adjacent components. These requirements should be included in the drawing and confirmed during sample approval.

04

Magnetic Yoke







Our Manufacturing Advantages of Yoke Mount Kit for Relay


In-House Tool Design

Complete control over progressive die engineering reduces prototype lead times, optimizes metal yield, and eliminates external tooling vendor markups.



Raw Material Traceability

Direct sourcing of certified DT4C electrical pure iron coils ensures heat-to-heat chemical consistency, minimal carbon impurities, and stable magnetic flux response.



Direct Wholesale Supply

Operating as a direct OEM china factory, we supply fully finished, plated relay skeletons directly to global assembly plants without intermediary trading delays.





Electrician Pure Iron Cold Rolled Steel for Yoke Metal Skeleton For Relay





Frequently Asked Questions about Yoke Metal Parts of Relays


Why is DT4C pure iron preferred over standard cold-rolled steel for the Yoke for Electromagnetic Relays?

+

-

DT4C electric pure iron possesses lower carbon content (≤ 0.008%), yielding exceptionally low coercive force (Hc ≤ 80 A/m) and high permeability. Standard cold-rolled steel retains residual magnetism after coil de-energization, causing the relay armature to stick or delay opening, whereas DT4C eliminates magnetic hysteresis lag.

What dimensional tolerances are achievable on high-speed progressive stamped relay skeletons?

+

-

Critical hole pitches, bend angles, and armature pivot centers are routinely held within ±0.01 mm. Flatness across primary pole face contact zones is maintained within 0.015 mm using specialized coining stations within the progressive stamping die set.

What electroplating options pass 48-hour neutral salt spray tests without changing part dimensions?

+

-

Bright acid nickel plating (3--5μm) or trivalent blue-white zinc passivation (5--8μm) easily achieves 48-hour salt spray resistance (ISO 9227) while remaining well within the standard dimensional tolerance band of the underlying stamping print.

What technical data is required to issue a custom relay yoke skeleton quote?

+

-

Submit 2D dimensional drawings (PDF/DWG) with tolerance callouts, 3D CAD models (STEP/IGES), material grade specs (e.g., DT4C), surface finish requirements, magnetic test parameters, and estimated annual production quantities for accurate unit costing.

How are delicate stamping geometries protected against bending during bulk international transport?

+

-

Parts are arranged in custom thermoformed plastic trays or packed in density-controlled layer boxes with corrugated separators, enclosed in VCI rust-preventative vacuum bags, and secured on export-grade pallets to absorb shipping shock loads.

Yoke Metal Skeleton For Relay Packaging Process





















contact us


Submit your relay drawing and target order quantity today to obtain a factory quotation for Yoke Metal Skeleton for Relay, including tooling assessment, material review, and drawing-based inspection planning.
