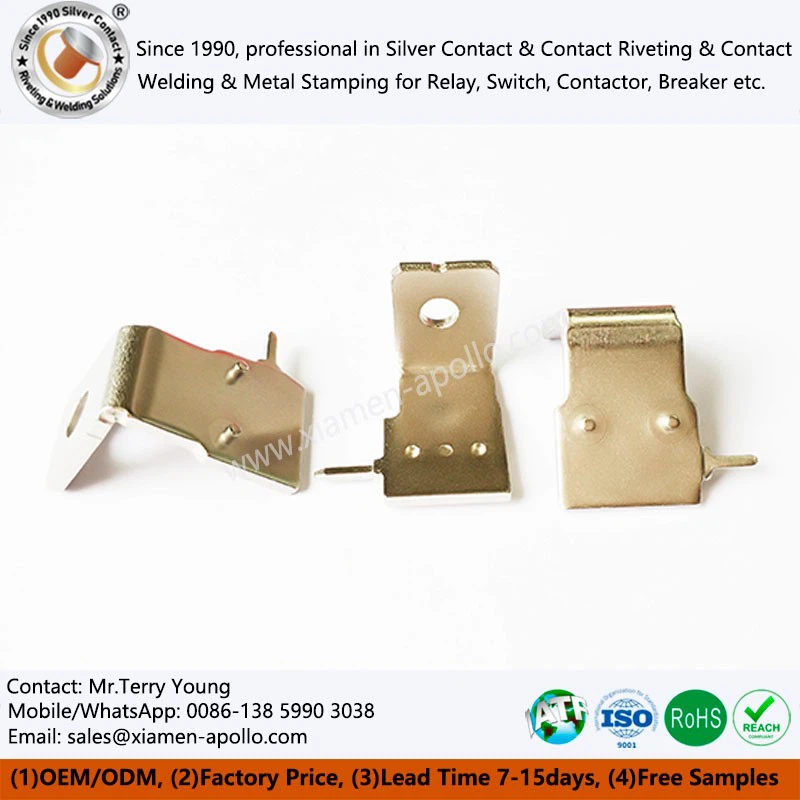

EV Relay Yoke Mount Kit adopts high‑purity iron plates to boost magnetic flux and lower energy loss. Precision‑fabricated with optional anti‑corrosion finishes, this modular kit delivers stable electromagnetic performance for multiple electric‑vehicle relay assemblies.
Send Inquiry
What is the Yoke Mount Kit for EV Relay?



Product Profile


Yoke Mount Kit for EV Relay components provides the formed iron structure used to support the magnetic circuit and mechanical arrangement of electromagnetic relays for electric vehicle power systems. The kit can be developed around customer drawings, material requirements, mounting geometry, and assembly interfaces. Custom stamping, tooling, dimensional inspection, prototype evaluation, and production supply can be coordinated for EV relay and contactor manufacturers. Final material grade, thickness, tolerances, surface protection, and magnetic properties should be confirmed against the approved drawing and component specification.

Yoke Mount Kit for EV Relay

Technical Specifications & Electromagnetic Parameters of Yoke Metal Parts of EV Relays





Technical Parameter Engineering Specification / Measured Value
Chemical Composition Iron ≥ 99.85%, Carbon ≤ 0.006%, Phosphorus ≤ 0.012%, Sulfur ≤ 0.008%
Electrical Conductivity 10.2--10.8% IACS
Coercivity ≤ 40 A/m (Post-Decarburization Anneal)
Maximum Permeability ≥ 0.012 H/m



Electric Pure Iron DT4E Raw Material for Relay Yoke Armature



Advanced Stamping Process & Magnetic Field Stability of Yoke for Electromagnetic EV Relay




Vacuum Decarburization Annealing

To eliminate internal lattice stress induced during progressive cold stamping, each yoke component undergoes continuous vacuum atmosphere annealing at 850℃. This controlled heat treatment reduces carbon content below 0.006%, restoring magnetic domain mobility. The process drops coercivity below 40 A/m, eliminating magnetic hysteresis during high-frequency relay switching cycles.




Precision Progressive Tooling Integration

Manufacturing uses multi-station carbide stamping dies operating on high-speed press lines. Blanking, pierces, and forming operations maintain pitch tolerances within ±0.015 mm. Structural mounting faces remain flat within 0.02 mm TIR, eliminating air gaps between the yoke, core, and armature to prevent magnetic flux leakage.




Surface Treatment and Corrosion Mitigation

Components receive electroplated bright nickel or trivalent chromium zinc finishes. Plating thickness (5--8μm) undergoes X-ray fluorescence verification to ensure uniform coverage across complex interior corners and mounting holes. This protective barrier withstands 96-hour neutral salt spray tests, resisting oxidation under harsh under-hood environmental conditions.




Cold Riveting and Structural Rigidity

When integrated into multi-piece bracket assemblies, joining relies on automated cold-heading riveting. Interlocking joints achieve shear strength levels exceeding 220 MPa. Physical connection points remain structurally stable under continuous 30G mechanical shock loads and random thermal vibrations (-40℃ to +125℃).



Dust-free Workshop of Metal Stamping



























Packaging and Transportation of Yoke Metal skeleton for EV Relay



Protective Packaging - Each component is individually wrapped in anti-static materials to prevent damage.
- Foam inserts and sturdy boxes provide additional protection against impact.
Clear Labeling - Each package is labeled with detailed product information and handling instructions.
- Barcode scanning for inventory management facilitates easy tracking.
Efficient Logistics - Partnering with reliable logistics providers ensures timely delivery.
- Transportation methods are chosen based on efficiency and environmental considerations.
Customs Compliance - All international shipments adhere to customs regulations to prevent delays.
- Proper documentation is provided to facilitate smooth cross-border transport.



Packing Delivery by Express Sea China Railway Express



Direct-source factory engineering capabilities deliver certified precision components for your high-voltage DC switching projects; contact our technical team today to request a custom quote and material sample for your Yoke Mount Kit for EV Relay.
