Products Description

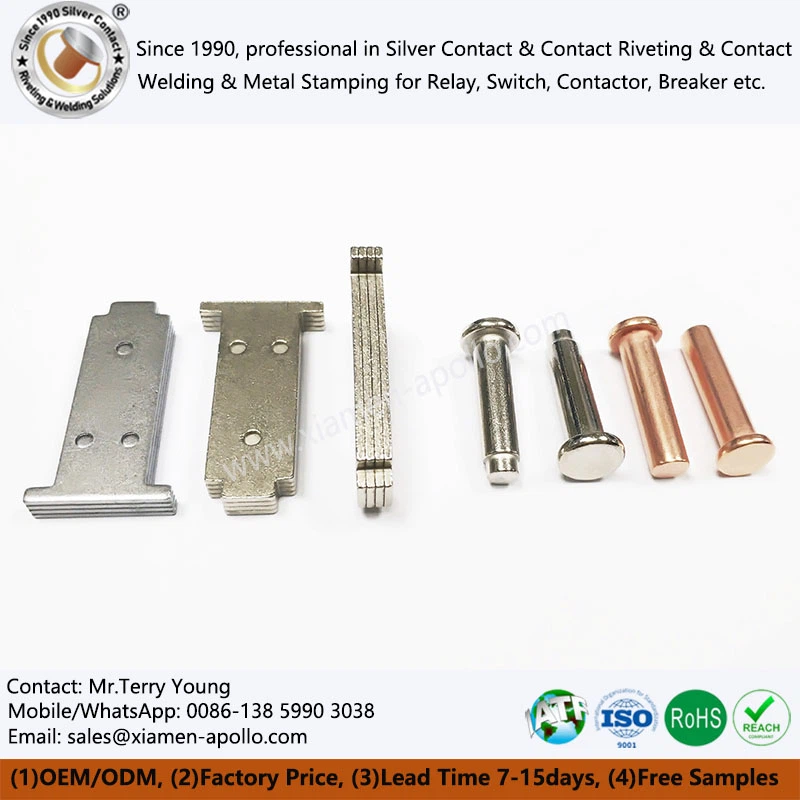

In electrical control systems, relays are key devices for automatic control and power switching. Their stability and response speed are directly related to the safety and efficiency of the entire system. Within the relay, the core pin, the core component of the driving magnetic circuit, carries the critical responsibilities of electromagnetic conversion, action triggering, and system linkage. Our Core Pin for Relay products are designed for high-performance applications such as new energy vehicles, industrial control, smart grids, and home appliance control systems. They offer superior magnetic performance, machining precision, and structural consistency, making them an ideal choice for efficient control and stable triggering.

Five perceptible and quantifiable core advantages

High magnetic permeability for faster response

· Constructed from high-quality soft magnetic materials: Materials with excellent magnetic properties, such as cold-rolled silicon steel, pure iron, or iron-nickel alloy, ensure high magnetic permeability and low loss.
· Reduced electromagnetic delay: Rapid response to coil energization signals, increasing relay engagement speed and reducing hysteresis.
· Stable magnetic flux density output: Maintains stable attraction even during long-term operation, enhancing long-term product reliability.

Precise dimensions for smoother assembly

· High-precision machining: Utilizes CNC turning, precision grinding, and rolling processes to ensure consistent axial and radial dimensions.
· Strict concentricity control: Ensures a tight fit between the Pure Iron Core, coil, and armature components, effectively reducing noise and structural deviations.
· Excellent consistency and adaptability: High batch stability, suitable for automated assembly lines, significantly reducing assembly errors.

Optimized Surface Treatment for Rust and Corrosion Resistance

· Diverse Surface Protection Options: Optional rust-proofing treatments such as blackening, electroplating, phosphating, and oxidation are available to enhance weather resistance.
· Excellent Moisture and Heat Resistance: Coil Core for Electromagnetic relay. Suitable for high humidity, high salt spray, or high-temperature operating conditions, such as new energy vehicle control systems and outdoor installations.
· Reduced Maintenance Costs: Enhanced durability extends relay life and maintenance intervals.

Customizable for Flexible Adaptation to Multiple Scenarios

· Optional Sizes/Shapes/Materials: Supports standard sizes and customizable services to meet the magnetic circuit design requirements of various relay structures.
· Compatible with Various Coil Voltage Levels: Customizable options are available for everything from low-voltage signal control relays to high-voltage DC contactor Iron Core Relay Parts.
· Fast Delivery and Technical Support: Respond to the rapid iteration requirements of engineering projects and help shorten product development cycles.

Strict Quality Control and Process Traceability

· Full-process quality tracking system: Each DT4C AC Relay Iron core has a production batch record to ensure traceability;
· Advanced testing equipment calibration: Equipped with automated optical inspection and three-dimensional coordinate measuring machines to ensure geometric dimensions and magnetic performance;
· Stable supply and guaranteed delivery: Mature production lines and efficient inventory management ensure the timely delivery of large-volume orders.

Core Pin for Relay Cold Heading Production Dust-free Workshop

Material Advantages: Strong Magnetic Properties and High Stability

Material is the fundamental guarantee of Soft Magnetic Iron Rod RFe80 performance. We maintain long-term partnerships with renowned domestic and international steel and magnetic alloy suppliers, selecting materials with low magnetic loss, strong saturation magnetic induction, and stable mechanical properties. These materials include, but are not limited to:

Cold-rolled low-carbon steel: Offers excellent magnetic conductivity and reasonable cost, suitable for general-purpose relays;

Iron-nickel alloys (such as 1J85): Suitable for precision control applications requiring high magnetic properties;

High-purity iron: Offers high magnetic permeability and low hysteresis loss, suitable for high-frequency, fast-acting applications;

Oriented silicon steel laminated structures: Designed for specialized applications, such as soft iron core in relay components of high-power relays.

Through precise heat treatment and surface treatment, we achieve stable and highly consistent magnetic properties, ensuring the lifespan and performance of each nickel-plated Relay Core.

Pure Iron Coil for Core Pin for Relay

Wide Application Areas: The Core Foundation of Drive Control

New Energy Vehicles	In high-voltage DC relays and battery management systems (BMS), Relay Pin Cores must exhibit high magnetic flux response and extremely low power consumption to ensure rapid operation and safe disconnection of the electronic control system.
Industrial Automation Control	High-frequency control scenarios such as PLC control systems, motor starters, and time relays place extremely high demands on the Soft Magnetic Iron Rod for the Relay's dimensional stability and magnetic induction stability.
Smart Grid and Substation Systems	In devices such as electricity meters, smart circuit breakers, and load-switching relays, Pure Iron Rod for Relays operates in high-humidity and high-temperature environments for extended periods, requiring excellent corrosion resistance and stable suction.
White Goods and Consumer Electronics	Micro relays used in home appliances such as air conditioners, washing machines, and induction cooker controllers require Relay Core Cold Headings that are compact, magnetically stable, and cost-effective.
