Products Description
As a key component in industrial automation systems, the Iron Core for Industrial Control Relay plays a decisive role in control accuracy, response speed, and system stability. Our company's independently developed and mass-produced relay cores, utilizing high-permeability magnetic alloy materials, precision machining equipment, and multiple authoritative certifications, are widely used in high-end industrial control scenarios such as industrial control equipment, PLC systems, elevator controls, automated production lines, energy control cabinets, and railway and mass transit systems.

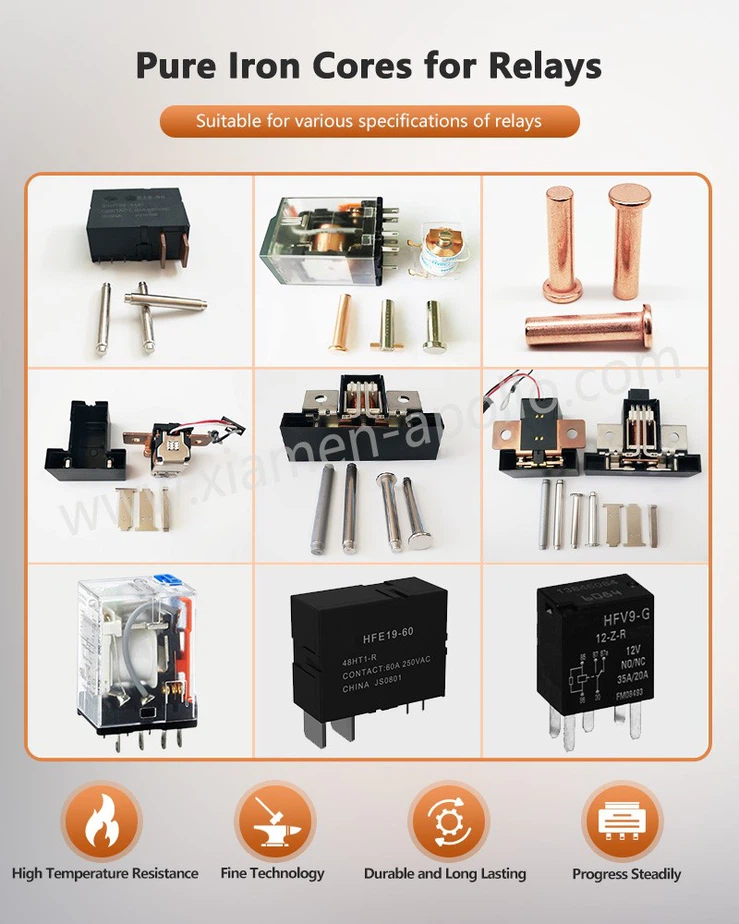

Typical Application Scenarios for Precision Cores in Industrial Control Relays
| PLC (Programmable Logic Controller) I/O Modules | Input/output relay Pure iron Relay Cores. They require high density, low power consumption, long life, and fast response to ensure accurate control signals. |
| Power Protection Relays | Overcurrent, undervoltage, and intermediate relays. They require extremely high reliability, strong anti-saturation capabilities, and precise operation to ensure power grid safety. |
| Motor Starters and Contactors | Control coil Soft Magnetic Iron Cores for Relays. They must withstand frequent starts and stops and high current surges, requiring high mechanical strength, low noise, and high-temperature resistance. |
| Automation Equipment and Instrumentation | Various control relays and signal relays. They require precise dimensions, low power consumption, and strong environmental adaptability to ensure stable equipment operation. |
| Rail Transit and New Energy Equipment | Relays are used in vehicle control systems, charging stations, and photovoltaic inverters. They must meet extreme requirements such as wide operating temperatures, high vibration, and long life. |
Production Process Overview: Precision Manufacturing, Quality Assurance

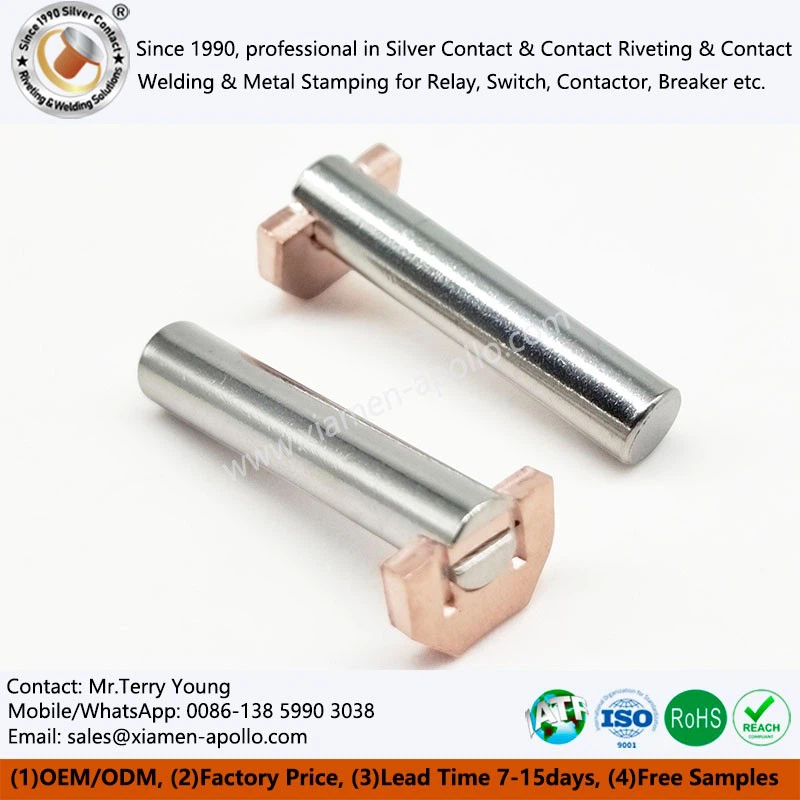

1. Material Arrival and Inspection for AC Relay Core and Copper Ring
Strictly select high-silicon steel, Permalloy, and low-carbon pure iron.
Composition analysis, thickness measurement, and magnetic testing are performed before delivery.
All materials are accompanied by original material certification and inspection reports.
2. Precision Stamping and Processing for AC Rod
High-speed punching presses with automatic feeding ensure dimensional consistency.
CNC grinders are used for finishing key parts, with tolerances controlled to ±0.01 mm.
Custom molds and non-standard structure designs are supported.
3. Heat Treatment and Demagnetization for the Core of an Electromagnetic Relay
Atmosphere-protected annealing furnaces are used to eliminate stress and restore magnetic properties.
Complete demagnetization ensures no residual magnetic interference.
Full process parameter records ensure batch consistency.
4. Surface Treatment for DT4C AC Relay Iron core
Optional electrophoresis, blackening, electroplating, and insulating paint are available.
Improves resistance to rust, moisture and enhances insulation properties.
Why Choose Us?
Specializing in Electromagnet Core manufacturing, we're your trusted industrial control partner.
In today's world, where high performance, high reliability, and high consistency are standard features of industrial automation equipment, we leverage our manufacturing expertise to provide customers with truly reliable solutions. From materials to craftsmanship, from quality to service, we consistently adhere to a results-oriented approach, helping customers implement their projects efficiently and ensure long-term stable operation.
Original equipment manufacturing, stable quality
In-house stamping shop, CNC center, heat treatment, and surface treatment lines
Full process control of key processes, achieving over 98% batch consistency
Monthly production capacity of 2 million pieces, meeting both standard and custom needs
Material traceability, guaranteed parameters
All Cold Heading Pure Iron Cores are provided with material reports, component analysis, and magnetic test curves
Carefully selected high-permeability materials support parameter optimization for different application scenarios
Meets RoHS, REACH, and other export environmental and quality certification requirements
Fast customization response and strong technical support
Supports custom-made processing/customized magnetic performance development/custom mold design
Our engineering team has an average of over 10 years of industry experience and provides one-on-one technical support
Sample delivery in as little as 3 days, facilitating rapid verification and project implementation
Extensive export experience, serving global customers
Products are exported to over 40 countries and regions, including Europe, America, Japan, South Korea, Southeast Asia, and the Middle East
Familiar with various client verification processes and certification requirements, with comprehensive supporting documentation
Providing Chinese and English technical documentation, internationally accepted packaging, and various trading methods
