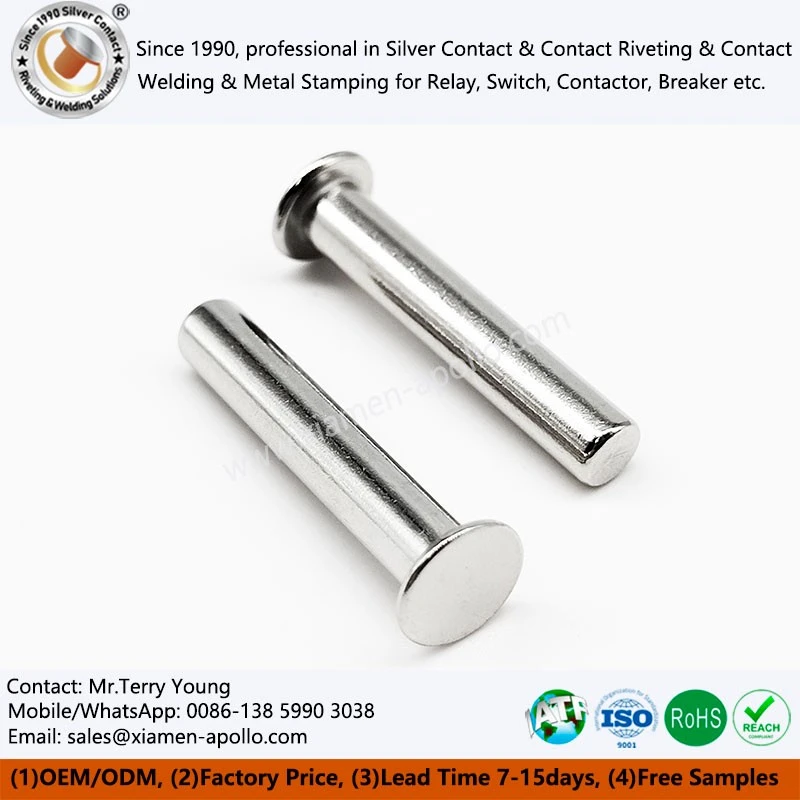

Products Description
Core pins are key metallic magnetic components used in various relay frames to construct stable and efficient magnetic circuit systems. As a core component of the electromagnetic system, the product directly participates in the establishment and conduction of the magnetic field after the coil is energized, significantly impacting the relay's pull-in performance, response speed, reliability, and lifespan. This product is designed for automotive and industrial relay applications, suitable for relay frames of various structural forms. It maintains stable magnetic permeability and structural consistency under complex operating conditions, meeting the stringent requirements of professional buyers and engineering clients for high reliability, manufacturability, and long-term consistency.
Technical Features
Dynamic Magnetic Response Characteristics
Our Relay Pin exhibits superior magnetic response characteristics under dynamic operating conditions. Rapid magnetization ensures the relay quickly establishes its working magnetic field upon receiving a control signal, shortening the relay's pull-in time; while optimized demagnetization characteristics guarantee rapid demagnetization after the control signal is disconnected, reducing release time. This characteristic is crucial for automotive relay applications requiring high-frequency switching.
Breakthrough Temperature Stability
Addressing the extreme temperature requirements of automotive electronics, our core material undergoes a special formulation and processing, controlling the permeability change rate to within ±8% over a temperature range of -40°C to +150°C, far lower than the ±15% change rate of conventional industry products. This temperature stability ensures consistent performance parameters for the relay under various climatic conditions and the high temperatures of the engine compartment for Pure Iron Core.
Long-Term Magnetic Performance Retention
Through material purification, stress relief, and structural stabilization treatments, we have endowed the core with excellent resistance to magnetic aging. Accelerated life testing shows that under vibration, temperature, and humidity cycling conditions equivalent to the lifespan of a vehicle, our core magnetic properties decay by less than 3%, while conventional products typically reach 8-10%. This long-term stability directly extends the reliable lifespan of the relay for Cold Forging Relay Core.
Detailed Display and Product Consistency
Dimensional and Geometric Consistency
As the axial core component in the magnetic circuit, the straightness, coaxiality, and end dimensions of the product directly affect the magnetic flux path and assembly stability. Through stable molding processes and process monitoring, Pure iron Relay Core maintain a highly consistent geometric shape in batch production, ensuring smooth assembly and reliable positioning in different relay frames.
01
End Structure and Magnetic Circuit Contact Surface
ThePure Iron Core end is a crucial area for magnetic circuit closure; its flatness and structural integrity directly affect magnetic flux transmission efficiency. In the end molding and subsequent processing, we focus on the integrity and stability of the contact surface, ensuring a continuous and controllable magnetic flux path when mating with components such as the armature and yoke.
02
Surface Condition Control
Surface condition not only affects assembly smoothness but also stability during subsequent use. Through reasonable process control, the Cold Forging Relay Core surface remains uniform, clean, and free of obvious defects, avoiding assembly jamming, magnetic performance fluctuations, or potential risks during long-term use due to surface abnormalities.
03
Internal Structure and Stress Stability
For magnetic cores, the internal structure and residual stress are key factors determining the consistency of magnetic properties. Through mature process routes and management, internal stress fluctuations are reduced, ensuring stable magnetic conductivity across different batches and operating conditions, meeting the requirements of high-frequency relay operation.
04
Manufacturing Process
Precision Forming Process
We employ a composite machining technology combining multi-stage cold heading and precision cutting to optimize the material's metal flow lines while ensuring dimensional accuracy. This process not only achieves micron-level dimensional and positional tolerance control but also enhances the mechanical strength and magnetic permeability consistency of the core through continuous fiber flow. Compared to traditional single machining methods, the composite process of Relay Pinachieves an ideal balance between efficiency and performance.
Heat Treatment Process
Through proprietary stepped annealing technology, we precisely control grain size and stress relief processes. In a protective atmosphere, the material undergoes directional temperature-controlled treatment to obtain stable and uniform soft magnetic properties. This process significantly improves the Cold Forging Relay Core's magnetic permeability and temperature stability, ensuring consistent performance across a wide temperature range.
Surface Treatment Technology
We use a modified phosphate coating process to form a microporous structure on the Pure Iron Core surface that combines protection and functionality. This coating not only provides long-lasting corrosion protection but its microporous structure also adsorbs lubricating media, reducing wear during operation. The coating thickness is precisely controlled to ensure protective performance while minimizing the impact on the effective magnetic cross-section.
