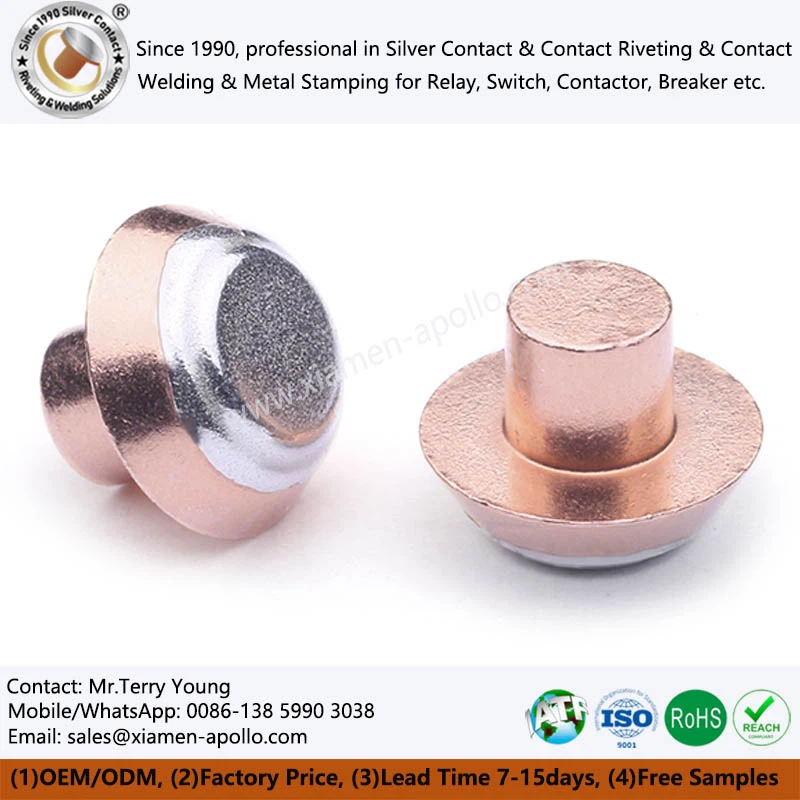

Electronic Contact For Smart Meter Relay

Optimize performance and cost for smart meter magnetic latching relays with our Steps Silver Contacts and Electronic Contact for Smart Meter Relay, designed for bistable power latching systems in advanced AMI (Automatic Metering Infrastructure). Crafted with dual-layer silver structures and bimetal riveting technology, these cap head silver contacts deliver reliable conductivity, mechanical durability, and factory-direct value—backed by IATF 16949, ISO 9001, and RoHS/REACH compliance.

Send Inquiry

Products Description

Our Electronic Contact for Smart Meter Relay is specifically engineered for DC electronic latching relays in smart meters, featuring:
Asymmetric Steps Silver Design:
Non-working head: 20-50μm silver layer (AgNi10/AgSnO₂) reduces material cost by 40%.
Working face: 80-120μm thick silver layer ensures ≤5mΩ contact resistance and 100A surge current tolerance.
Bimetal Riveting Technology: Silver contact riveted to oxygen-free copper (T2) or copper-tungsten substrate, achieving bond strength ≥80MPa for vibration resistance.
Cap Head Geometry: Standardized cap head design fits TE Connectivity/Schrack-style latching relays, enabling plug-and-play integration into smart meter modules.

Key Advantages

1. Dual-Layer Structure for Cost & Performance
Targeted Material Savings: 50% less silver usage compared to solid silver contacts, while maintaining 95% conductivity via thickened working face-ideal for mass-produced smart meters.
Bistable Power Stability: Steps design ensures consistent contact in both latched states of bistable power latching relays, reducing arc erosion by 30% during state transitions.

2. Smart Meter-Centric Performance

Feature	Technical Advantage	Keyword Integration
DC Latching Reliability	≤10ms switching speed in DC electronic latching relays	Critical for real-time AMI signal control
Thermal Stability	-40°C to +85°C operation in outdoor meters	Matches magnetic latching relay requirements for smart grids
Rivet Bond Strength	≥80MPa shear force	Ensures durability of bimetal contact rivets in vibration-prone installations

3. Certified Quality & Factory Efficiency
Global Compliance: IATF 16949 certified for automotive-grade relay suppliers, RoHS-compliant for EU smart meter deployments.

Bimetal Contact Rivets for Magnetic Latching Relay

Applications

Smart Meter Magnetic Latching Relays

LPrepaid Meter Systems: Steps silver contacts ensure low-power latching in meters, supporting 10+ years of operation with ≤10μA standby current.
AMI Network Relays: Bimetal contact rivets in relays enable reliable data transmission in smart grid networks, even during voltage fluctuations (±15% nominal voltage).

DC Electronic Latching Systems

Renewable Energy Meters: Used in solar/wind energy metering relays, cap head silver contacts withstand 1,500V DC surge from inverter switching, meeting IEC 62053-23 standards.
Industrial IoT Meters: Bistable relays with steps silver contacts reduce maintenance in remote IoT sensors, supporting NB-IoT connectivity with <1ms response time.

Bistable Power Latching Applications

Smart Circuit Breakers: Riveted bimetal contacts for ABB/Fluke bistable relays provide stable connections in smart home panels, reducing arcing during 10,000+ switching cycles.

Application of Steps silver contacts

Factory Strengths: Smart Grid-Dedicated Manufacturing

Vertical Integration for Precision

In-House Riveting Lines: Automated robotic cells for bimetal contact rivets, achieving 0.02mm positional accuracy and 99.8% first-pass yield.
Silver Composite Technology: Hot-rolling process bonds silver to copper with <5μm intermetallic layer, ensuring long-term conductivity stability.

Customization for Smart Meter Innovations

Steps Angle: 30°/45°/60° angles for optimized latching force in bistable power latching relays.
Cap Head Sizes: M2/M3/M4 threads compatible with mainstream relay sockets (e.g., Omron G6KL).
Material Upgrades: Gold flash plating (0.1μm) for ultra-low contact resistance in high-frequency AMI signals.

Rigorous Smart Meter Testing

1. Silver Purity: 100% XRF testing for 99.9% Ag content.
2. Rivet Integrity: Ultrasonic flaw detection to detect micro-cracks in bimetal joints.
3. Environmental Testing: 1,000-hour humidity test (85% RH, 85°C) for outdoor meter compliance.
4. Latching Performance: 100,000-cycle testing under real-world load (10A DC, 24V).
5. EMC Compliance: Tested to CISPR 22 Class B for low electromagnetic interference in smart grid networks.
