Products Description

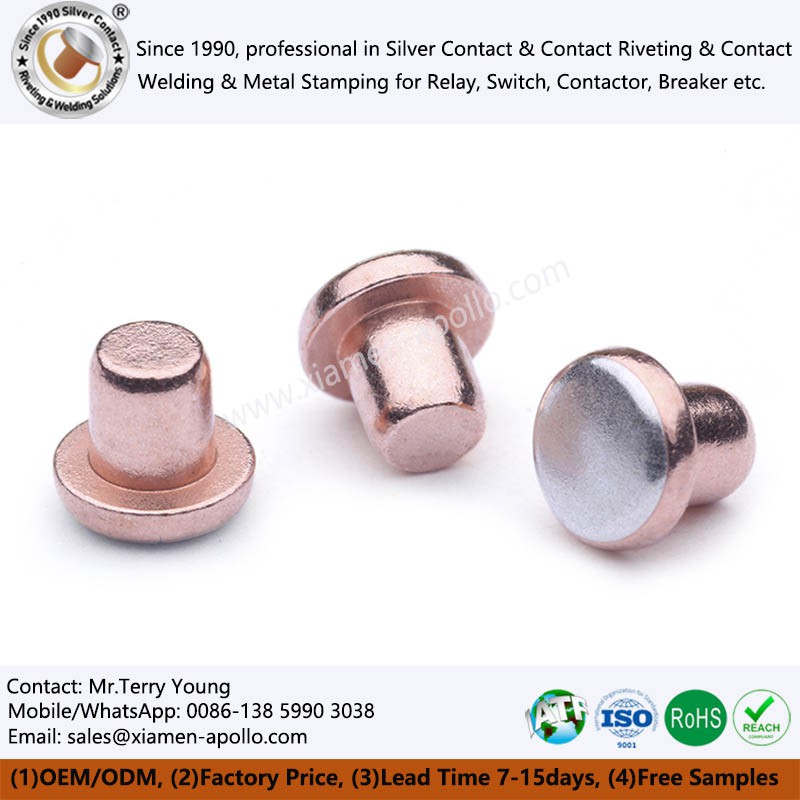

Silver Bimetal Contact Rivets for Electrical Contactor is rivet-style electrical contact components in which a high-performance silver-based contact alloy is permanently metallurgically bonded to a substrate of high-conductivity, high-strength copper or copper alloy. Specifically designed for switching devices-such as AC contactors, relays, and circuit breakers-that require frequent current switching (making and breaking), these rivets utilize a silver alloy in the critical contact zone (the working layer) to optimize contact resistance, arc erosion resistance, and anti-welding properties. Simultaneously, the use of copper in the supporting structure (the substrate) ensures mechanical strength, thermal conductivity, and cost efficiency, making these rivets a core component for achieving an optimal balance between functionality, reliability, and economic viability.
Key Functions and Design Advantages
Key Functions
Establishing and interrupting conductive paths; managing arc energy; conducting electric current and heat for Bimetal Electronic Contacts.
Design Advantages
Customizable Performance Gradients: Stress distribution and heat dissipation paths can be optimized by adjusting the thickness of the Bimetallic Contact Rivet layer and the geometry of the composite interface (flat, curved, or stepped).
Flexible Geometric Adaptability: Bimetallic Rivet Contact can be fabricated with flat, rounded, or various irregular head shapes to meet the specific requirements of different contact bridges and riveting processes.
Product Features
Balanced Performance
Bimetallic Rivet Contact combines the low contact resistance and arc-resistance of silver alloys with the high strength and thermal conductivity of copper-based materials; it exhibits no significant performance deficiencies and is well-suited for complex operating conditions.
Precision Machining
Features high-dimensional accuracy and a smooth surface for Bimetallic Silver Contacts, free from defects such as burrs or scratches; this meets the precise installation requirements of contactor contact systems, thereby ensuring excellent electrical contact.
Environmental Adaptability
Demonstrates excellent resistance to high and low temperatures, as well as moisture and dust; Bimetal Contacts Ag/Cu is capable of operating stably under diverse environmental conditions, making it suitable for applications across a wide range of fields.
Frequently Asked Questions
How do I choose the right Bimetal Contacts Ag/Cu for the application?
+
-
Selection depends on three primary factors: rated current, operating voltage, and switching frequency. For continuous currents below 50A, standard AgNi10 rivets provide ample performance. When currents exceed 100A, a thicker silver layer or an AgCdO alternative is required. High-frequency switching applications benefit from AgSnO₂, as it offers superior resistance to contact welding.
What environmental conditions can Bimetal Electronic Contacts withstand?
+
-
These rivets operate reliably within a temperature range of -40°C to 150°C. Under non-condensing conditions, their standard humidity tolerance reaches 95% RH. For corrosive environments containing sulfides or chlorides, additional protective coatings can be applied. The bimetallic structure resists thermal cycling fatigue, making it suitable for installation in outdoor switchgear cabinets.
What causes premature wear in Bimetallic Contact Rivet, and how can it be prevented?
+
-
Premature wear typically stems from three sources: excessive contact force leading to mechanical deformation, insufficient silver layer thickness resulting in copper exposure, or arc energy exceeding the material's limits. Preventive measures include verifying that the silver-to-copper thickness ratio is ≥15%, selecting the appropriate silver alloy based on the application's current requirements, and ensuring proper spring compression within the contactor assembly.
