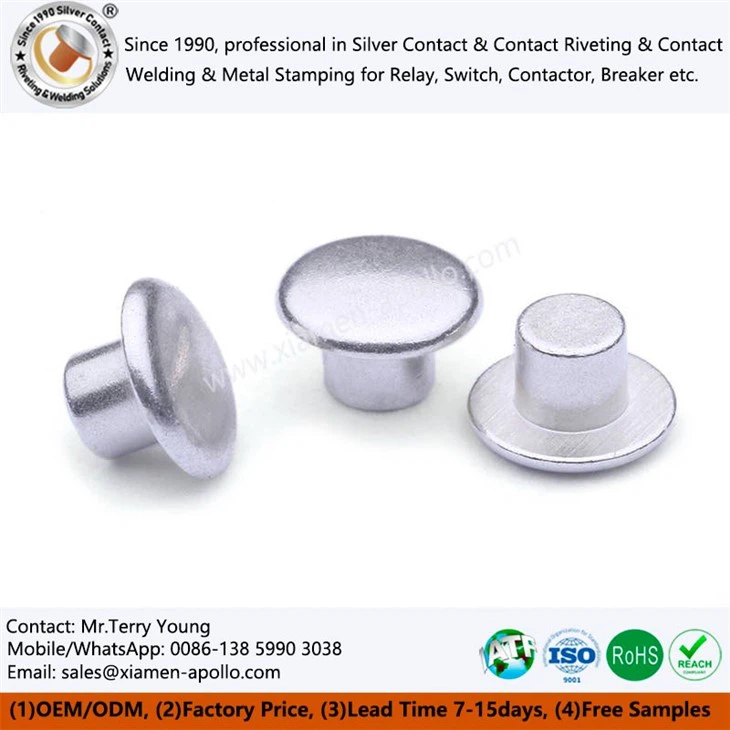

What are Electrical Contacts Silver Plated?
Operating within high‑frequency switching environments demands contact components that prevent micro‑arcing and excessive contact resistance. In low‑voltage molded case circuit breakers and smart home latching relays, sub‑standard electrodeposited layers degrade rapidly under continuous mechanical cycling and thermal expansion. Engineering teams require consistent Electrical Contacts Silver Plated that maintain structural integrity and steady electrical performance over tens of thousands of actuation cycles. This product line provides precision copper substrates engineered with uniform silver electroplating, manufactured directly in volume to match exact assembly tolerances.
Technical Specifications of electroplated Silver contact
| Technical Parameter | Specification Value |
|---|---|
| Plating Material | Pure Silver (Ag ≥ 99.9%) |
| Plating Thickness | 3μm to 5μm (Customizable) |
| Contact Resistance | < 0.5 mΩ at 10A Load |
| Hardness (HV) | 85‑120 HV (Depending on temper) |
Our Controlled Silver Electroplating Workflow of Silver-plated rivet
Automated Current Density Regulation
Rectifiers maintain stable direct current output across rack and barrel plating lines, eliminating localized burning or unplated micro‑voids on complex stamped geometries.
Multi‑Stage Acid Activation and Cleaning
Substrates undergo ultrasonic degreasing, electrolytic alkaline cleaning, and acid activation to strip surface oxides completely before entering the primary silver plating bath.
Anti‑Tarnish Passivation Treatment
A proprietary organic‑inorganic passivation dip is applied post‑plating to the Silver Plated Rivet to form a microscopic protective barrier against sulfurization and atmospheric oxidation during long‑term ocean transit.
Real‑Time XRF Thickness Verification
Coating thickness is sampled continuously across production runs using X‑ray fluorescence instrumentation to ensure every lot meets precise contractual micrometer depth requirements.
Selection Guidance: Vs General Silver Plating Electrical Contacts
1. Substrate Purity Differentiation
Unlike standard commercial components that use recycled scrap copper, these Silver Plating Electrical Contacts utilize high‑purity cathode copper to eliminate internal gas pockets that cause blistering during high‑temperature reflow.
2. Coating Uniformity Control
Standard electroplating often leaves edge‑buildup and thin recess areas. Our specialized current‑shielding tooling guarantees uniform thickness distribution across sharp 90‑degree corners and deep recesses.
3. Passivation Longevity Comparison
Unprotected silver coatings tarnish rapidly in industrial sulfur‑laden atmospheres. Our dual‑layer passivation treatment extends shelf‑life stability and solderability window beyond 12 months.
4. Cost‑to‑Performance Ratio Optimization
By matching exact plating depth requirements (3μm vs 5μm) for Silver Plated Rivet to specific operational lifecycle demands, unnecessary precious metal consumption is eliminated without sacrificing switching reliability.
contact us
Secure engineering‑grade samples or request a formal volume quotation for Electrical Contacts Silver Plated by submitting your component drawings and electrical load requirements directly to our technical sales engineering team today.
