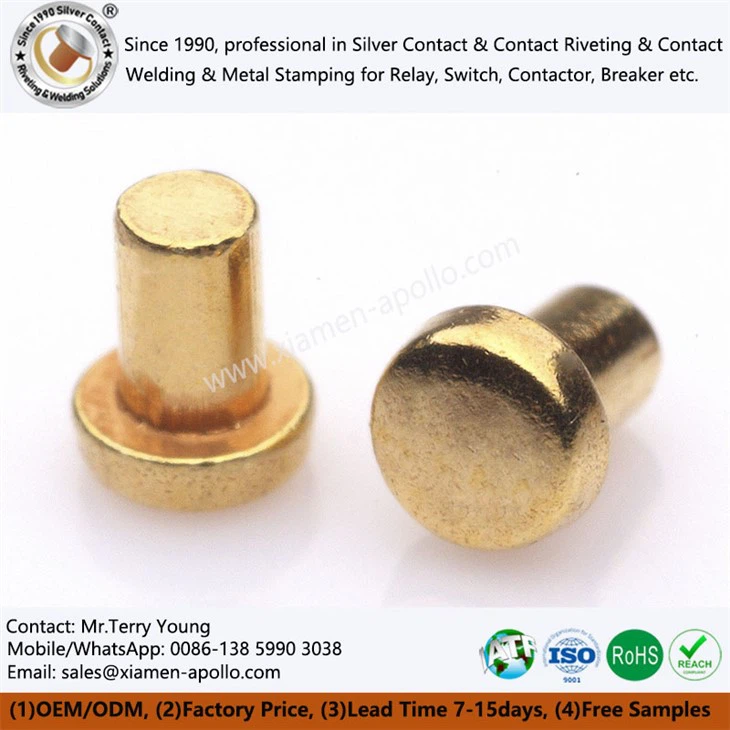

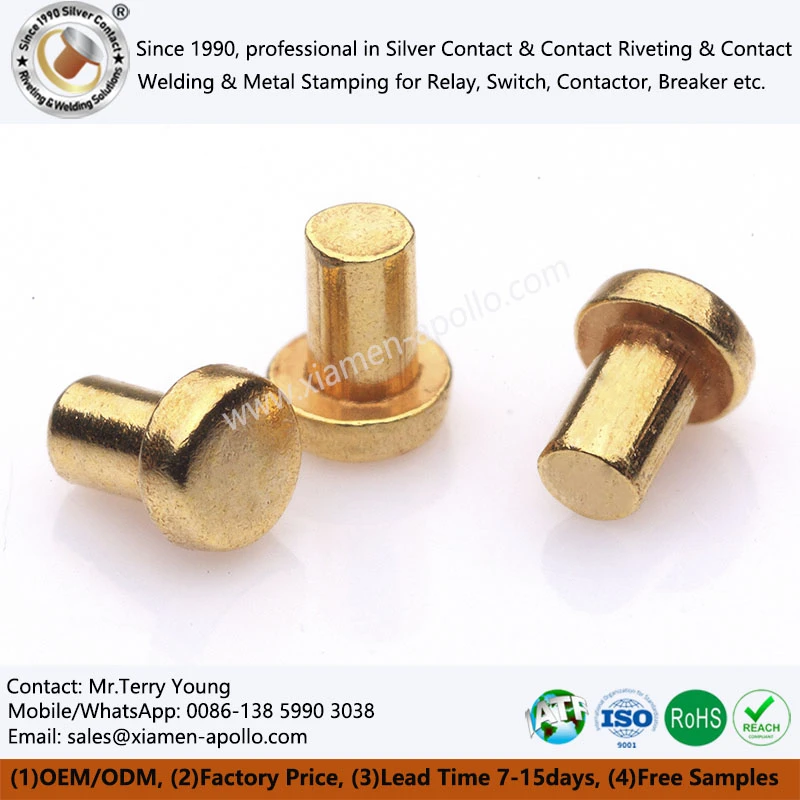

What are Gold Coated Electrical Contacts?
Engineered for demanding low-voltage switching devices and miniature relay applications, these Gold Coated Electrical Contacts deliver consistent signal integrity and minimal contact resistance across millions of operational cycles. Fabricated from high-purity copper and silver alloy substrates, the components feature an electrodeposited gold layer that prevents surface passivation and oxidation in harsh atmospheric conditions. Backed by extensive cleanroom stamping capacity and advanced barrel and rack plating lines, we supply global tier-one electrical manufacturers with custom-engineered contact solutions built to precise dimensional tolerances.
Technical Specifications of Electrical Contacts Gold Plated
| Technical Item | Specification |

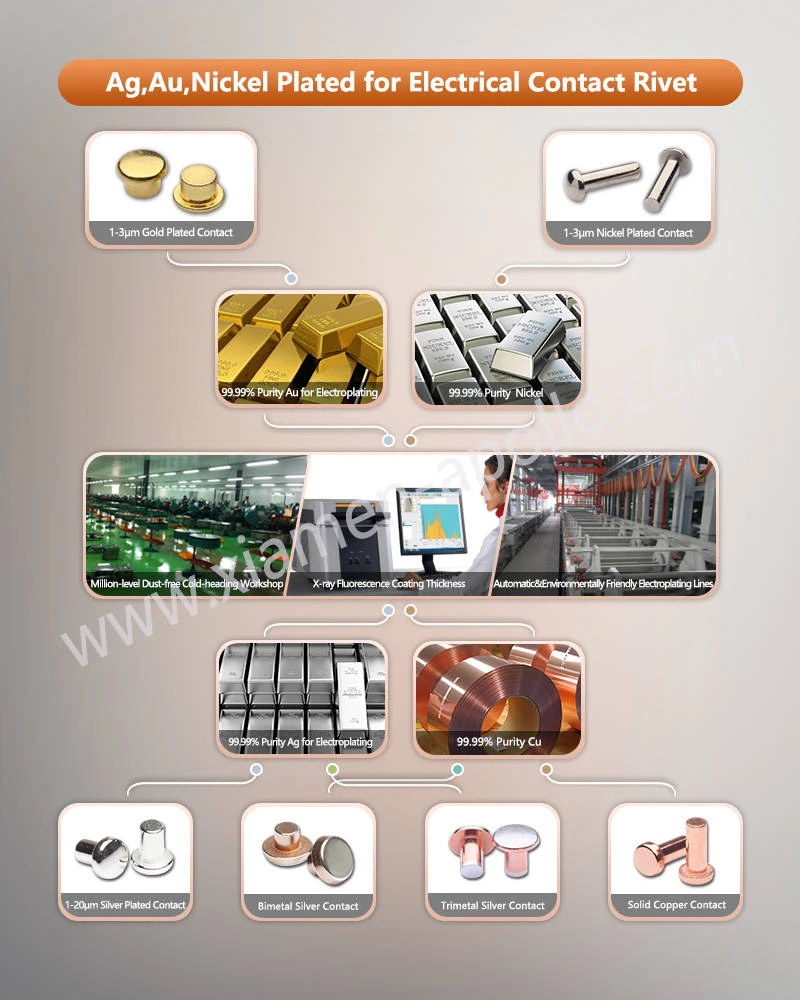

| Base Material | Silver alloy, Copper alloy |
| Gold Plating Thickness | 1μm‑3μm (customizable) |
| Key Properties | High conductivity, anti‑corrosion, low contact resistance |
| Custom Service | OEM, ODM, custom dimensions |

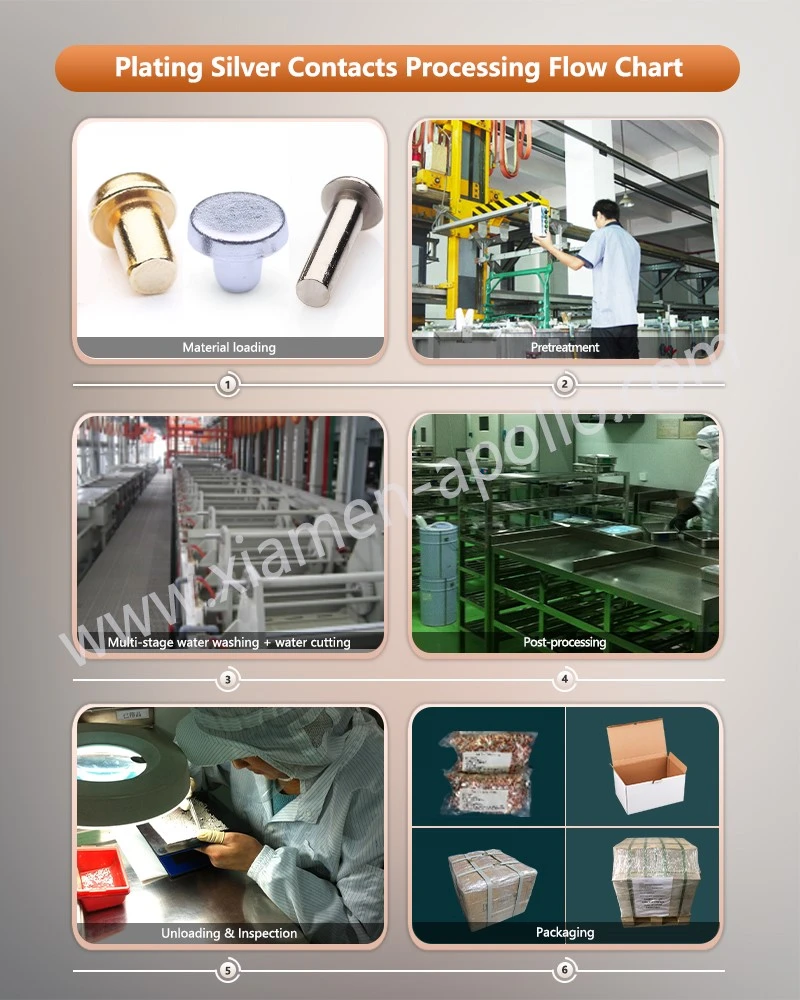

Our Gold Electroplating Technology of gold plated contact
Precision Thickness Control Technology
Advanced X-ray fluorescence (XRF) thickness gauges monitor real-time deposition rates during barrel and rack electroplating runs. This ensures the gold layer maintains consistent micrometric depth across complex contact geometries without edge accumulation or thinning.
01
Uniform Plating Process
Proprietary multi-cathode plating bath configurations optimize current distribution across bulk production runs. The resulting microstructure eliminates pinholes, guaranteeing complete surface coverage over copper substrates or silver alloy contact bases.
02
Eco‑Friendly Electroplating Method
Cyanide-free gold plating chemistry minimizes environmental impact while delivering superior deposit density and hardness. Wastewater treatment loops recover precious metal traces efficiently, adhering to strict international ecological standards.
03
Low Contact Resistance Engineering
Optimizing grain refinement during electrodeposition reduces surface asperities. This microstructure reduces initial electrical contact resistance, preventing signal degradation in low-voltage telemetry and precision relay circuits.
04
Product appearance quality inspection of Gold Plating Copper Rivets
Plating integrity inspection
Use a high-power microscope to carefully check whether the gold-plated layer of Electrical Contacts Gold Plated is intact. Strictly screen for pinholes, cracks, or peeling to ensure uniform coverage of the plating and effectively exert its protective and performance-enhancing effects.
Surface flatness measurement
Use a precision profilometer to measure the flatness of the gold-plated surface of Gold Plating Copper Rivets. Strictly control the undulations and roughness to ensure a smooth and flat surface to achieve good contact performance and reduce signal transmission loss and the risk of poor contact.
Color consistency evaluation
Compare the color of the gold-plated parts of the contacts under a standard lighting environment. Accurately determine whether it is uniform and consistent, avoid color differences, mottling, and other problems, and ensure that the appearance meets the strict requirements of high-quality products.
Edge processing inspection
Check the gold-plated condition at the edge of the contacts to see if there are burrs, curling, or abnormal changes in gold plating thickness. Ensuring that the edges are neat and smooth not only meets aesthetic standards for appearance, but also prevents performance hazards and safety risks caused by edge defects.
contact us
Secure your supply chain with direct-from-factory pricing and rigorous quality control for Gold Coated Electrical Contacts. Submit your engineering drawings and annual volume projections to our technical sales team today for a comprehensive quotation and sample evaluation within 24 hours.
