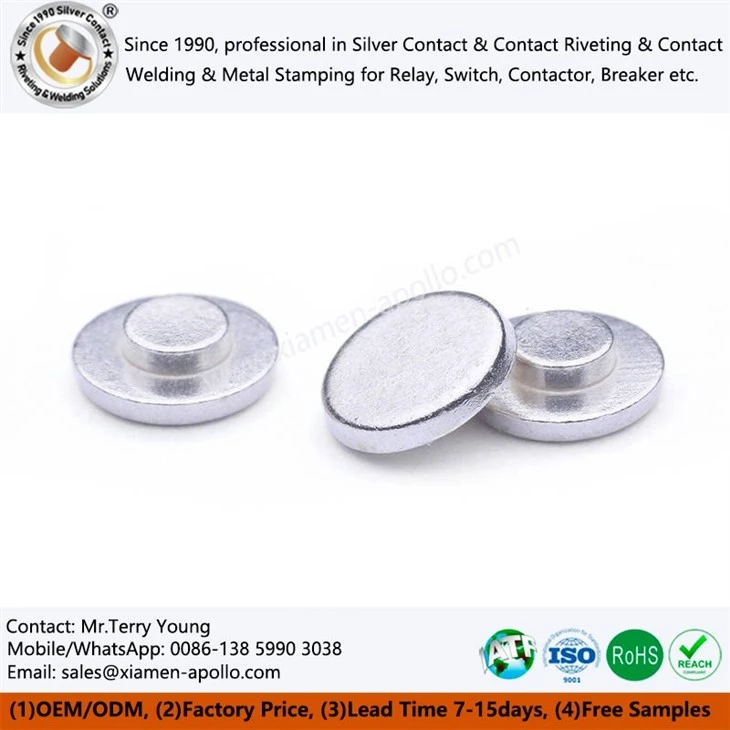

What are Electrical Silver Plated Contacts?
Smart meter latching relays and low-voltage industrial control switches operate in environments where sustained circuit continuity and minimal thermal drift are mandatory for system accuracy. Our Electrical Silver Plated Contacts are precision-engineered using high-conductivity C1100 copper substrates coated with an electrodeposited 99.9% pure silver layer to eliminate localized Joule heating during frequent switching cycles. Fabricated in our specialized production facility in China, these components provide dependable electrical pathways for electronic engineers designing high-density circuit breaker mechanisms. Each production batch undergoes strict XRF thickness measurement and thermal shock adhesion testing to ensure compliance with international engineering specifications.
Material Selection of Plating for Electronic Contact
Base Metal Substrate Composition
Substrate architecture relies on electrolytic tough pitch C1100 copper, offering superior mechanical malleability and base electrical conductivity exceeding 100% IACS.
Electrodeposited Silver Layer Properties
The functional contact interface utilizes 99.9% high‑purity silver electroplating, maintaining a Vickers hardness range of 90 to 120 HV to resist mechanical wear.
Dimensional Stamping Tolerances
High‑speed progressive stamping dies achieve rigorous length, width, and bend radius tolerances strictly maintained within ±0.01 mm for automated assembly.
Regulatory and Environmental Compliance
All Plating for Electronic Contact adheres strictly to RoHS and REACH regulatory frameworks, backed by full material traceability and factory test documentation.
electric contact Silver plating Process & Adhesion Quality Control
Surface Preparation and Activation
Substrates undergo ultrasonic degreasing, acid pickling, and microscopic surface activation to ensure absolute molecular bonding prior to silver electrodeposition.
Controlled Current Density Deposition
Automated rack and barrel plating lines regulate current density and bath chemistry to deposit uniform silver crystals across intricate Silver Electrical Contacts geometries.
Interfacial Diffusion Prevention
An optional nickel or copper flash barrier layer is applied before silver coating to prevent base metal migration and preserve long‑term solderability.
Adhesion and Thickness Verification
Every production lot is subjected to XRF thickness testing and destructive bend testing to confirm complete resistance to flaking or blistering under stress.
Quality Control of Silver Coated Contacts
Dimensional Inspection: Critical dimensions for Silver Coated Contacts are checked against the approved drawing. Inspection focuses on contact diameter, thickness, mounting dimensions, positional accuracy, and other characteristics affecting assembly.
Quality Documentation: Production can be managed under ISO 9001:2015 and IATF 16949 quality systems, with RoHS and REACH requirements supported for applicable products. Inspection records and material documentation can be prepared according to project requirements.
Frequently Asked Questions about Silver Plated Rivet
Can you adjust plating thickness to reduce total part cost for low-load scenarios?
+
-
We can adjust plating thickness down to 3μm for indoor low-current signal transmission applications; no performance drop will occur within the designed service scope.
Can these Silver Plated Rivets be customized based on proprietary engineering drawings?
+
-
Yes, our tooling department builds custom progressive stamping dies matching your exact CAD specifications, hole locations, and bend angles.
What quality management certifications govern your manufacturing facility?
+
-
All production lines operate under strict IATF 16949 automotive quality standards, ensuring complete batch traceability from raw coil to final packaging.
What packaging materials prevent surface tarnishing during international ocean freight?
+
-
Parts are vacuum‑sealed in anti‑tarnish VCI polyethylene bags within robust double‑wall corrugated cartons to inhibit sulfur and moisture exposure.
contact us
To secure high‑precision Electrical Silver Plated Contacts for your upcoming relay production run, submit your technical drawings and required annual volume to our engineering team today for a direct factory quotation and sample dispatch.
