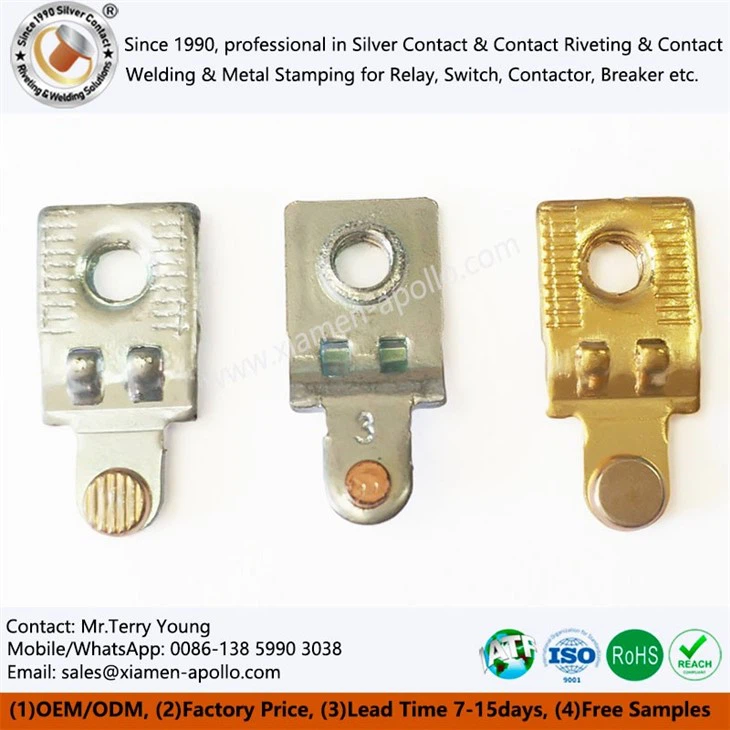

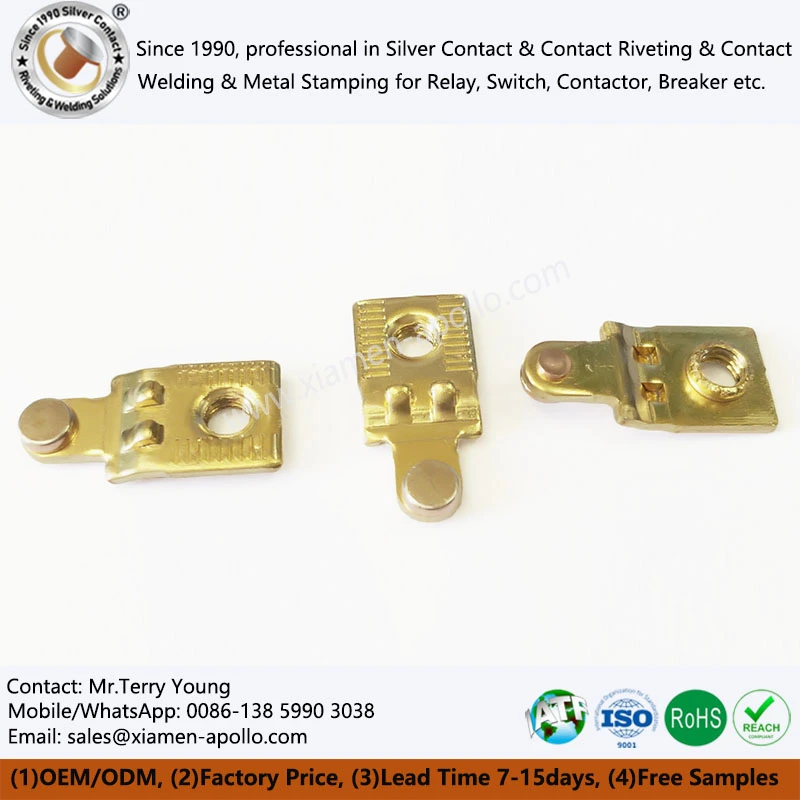

What is the AC Contactor Static Contact Brass Riveting Assembly?
The AC Contactor Static Contact Brass Riveting Assembly anchors terminal stability by merging a high-conductivity brass carrier with a wear-resistant silver-based contact tip through cold-heading mechanical locking. Engineers designing low-voltage power distribution systems frequently combat contact oxidation and micro-frictional wear inside high-frequency AC contactors. Operating directly as the primary switching path in industrial motor starters and HVAC control panels, this component mitigates BOM cost pressures while maintaining low millivolt drop under continuous thermal stress. Manufactured entirely in our volume production facility, we supply global OEMs with custom-engineered brass riveting assemblies backed by strict metallurgical testing and dependable delivery schedules.
Material & Processing Technology of Silver Contact Points with Brass Terminal
Substrate Metallurgy and Thermal Performance
The foundation utilizes high-purity C2680 or C2800 brass strip, ensuring adequate yield strength to resist mechanical vibration during repeated electromagnetic closure. Unlike cast alternatives, rolled brass provides uniform grain structures that prevent micro-cracking during secondary bending operations.
Cold-Heading Riveting Integrity
We deploy high-tonnage mechanical presses to cold-head silver alloy tips (such as AgSnO2 or AgNi) directly onto the brass stamping base. This mechanical interlock prevents tip detachment under repetitive high-current inrush surges without relying solely on thermal brazing.
Surface Passivation and Oxidation Resistance
To prevent premature terminal darkening and high-resistance copper oxide layers during warehouse storage, parts undergo an anti-tarnish passivation treatment. This preserves solderability and low contact resistance before final switchgear assembly.
Dimensional Precision Control
Progressive die tooling maintains tight tolerances down to plus-minus 0.02 mm on critical mounting hole pitches. This high repeatability eliminates alignment issues during automated housing insertion on high-speed customer production lines.
Typical Application Scenarios of Rivets Copper Contacts Assembly
Industrial Motor Control Centers (MCCB & Contactors)
Installed as stationary load-break contacts inside 9A to 95A AC contactors, managing frequent motor starting currents without thermal runaway or contact welding.
HVAC Compressor Starters
Withstands heavy inductive starting loads in residential and commercial air conditioning units, resisting mechanical shock and aggressive ambient humidity.
Smart Power Distribution Cabinets
Integrates into modular switching blocks where low millivolt drop reduces internal cabinet heat dissipation and improves overall energy efficiency.
Industrial Automation Control Relays
Provides reliable low-bounce switching cycles for PLC output modules controlling high-inductance solenoid valves and actuators.
Frequently Asked Questions about Electrical Contact Assemblies
What prevents the silver contact tip from shearing off the brass base during high-current inrush?
We use high-precision cold-heading riveting with controlled punch deformation, creating a mechanical interlock that exceeds 180 MPa shear strength, preventing detachment under heavy electrodynamic repulsion forces.
Can you customize the Brass Stamping Riveted with Silver Contact mounting hole layout for our specific contactor housing?
Yes, our in-house tool room designs progressive stamping dies to match your exact 3D CAD drawing, accommodating custom mounting hole pitches, bend angles, and terminal lengths.
How do you mitigate copper oxidation on the brass surface during long-term ocean transit?

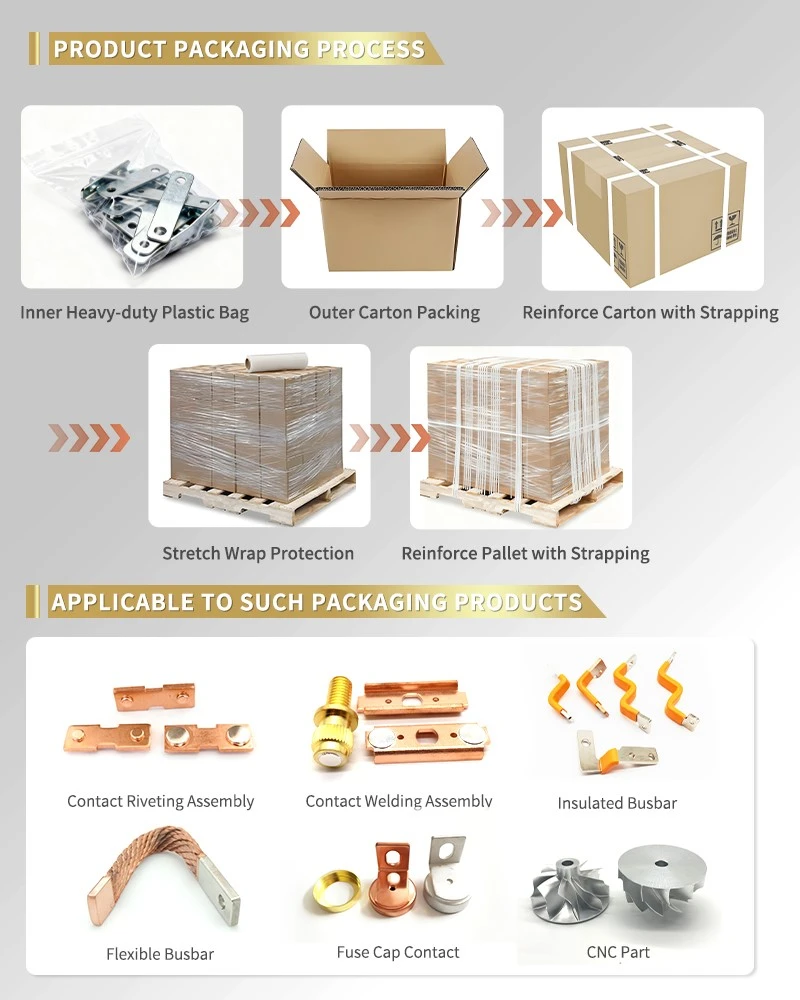

All finished brass assemblies undergo a chemical anti-tarnish passivation pass and are vacuum-sealed with desiccant inside anti-static polyethylene bags before export packaging.
What is the typical lead time for custom prototype samples versus mass production orders?
Custom prototype samples tooling typically requires 10 to 15 days. Full-scale volume production runs are delivered within 10 to 15 days depending on raw material availability.
Contact us
Ready to optimize your switchgear supply chain and reduce AC Contactor Static Contact Brass Riveting Assembly costs? Send your 2D/3D engineering drawings directly to our applications engineering team today for a comprehensive DFM review and a competitive factory-direct wholesale quotation within 24 hours. Partner with an experienced direct manufacturer dedicated to zero-defect quality and reliable delivery schedules.
