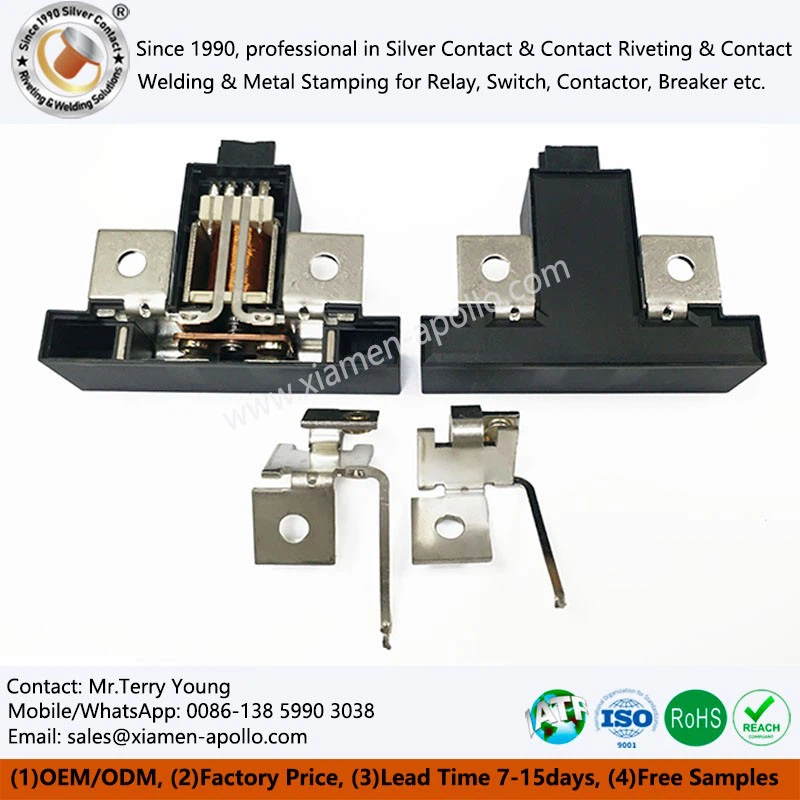

What is the Copper Terminal Silver Plated For New Energy Switch?
Copper Terminal Silver Plated for New Energy Switch is a stamped copper electrical terminal with a silver-plated surface for EV charging equipment, DC contactors, and new-energy relay assemblies. The copper substrate provides the terminal structure and conductive path, while the silver-plated surface is used at the specified electrical interface. The existing product design uses precision copper stamping followed by silver plating and inspection for cracks, burrs, incomplete plating, and dimensional conformity. The terminal can be developed from customer drawings or samples, with the stamped profile, mounting features, and plating requirements defined according to the relay or contactor assembly. OEM/ODM production is available from prototype validation through repeat factory orders.
Technical Specifications & Materials of Custom Copper Stamping for EV Relay
Chemical Composition and Substrate Grade
The base material utilizes high-purity C11000 electrolytic tough pitch copper or C10200 oxygen-free electronic copper. Oxygen content remains strictly below 0.001%, preventing hydrogen embrittlement during high-temperature brazing or welding operations while maintaining optimal mechanical ductility for complex progressive die forming.
Electroplating Layer Metallurgy
The surface finish applies high-purity electrodeposited silver (99.9% purity) with a micro-hardness ranging between 90 HV and 140 HV. An optional pre-nickel barrier layer (1.5μm to 3.0μm) is incorporated to eliminate copper atom diffusion into the silver layer during sustained elevated temperature operations.
Dimensional and Mechanical Tolerances
Progressive stamping tooling achieves length and width tolerances of ±0.01mm, while bend angle accuracy is maintained within ±15 minutes of arc. Thickness variations across stamped profiles are limited to less than 5% of nominal sheet gauge.
Production Process of Copper Terminal Ag-plated for HVDC Contactor
Precision Progressive Die Stamping
Raw copper strip coils are fed into high-speed precision stamping presses ranging from 45 to 200 tons. Multi-stage progressive dies execute simultaneous blanking, piercing, coining, and complex 3D bending in a single automated stroke to guarantee dimensional repeatability across millions of pieces.
Surface Preparation & Degreasing
Before electroplating, stamped copper components undergo ultrasonic alkaline cleaning and electrolytic activation. This multi-stage chemical pretreatment removes organic lubricants and microscopic surface oxides, ensuring atomic-level bonding between the copper substrate and the silver coating.
Automated Rack & Barrel Silver Electroplating
Depending on part geometry and batch volume, components are processed via automated barrel or jig-rack plating lines. Current density and bath chemistry are computer-controlled to deposit uniform silver thickness across complex internal radii and external contact pads without edge-building.
Post-Treatment & Anti-Tarnish Passivation
Plated terminals pass through an organic anti-tarnish passivation immersion bath to form a monomolecular protective barrier. This process prevents ambient sulfide oxidation and discoloration during storage and oceanic transit without compromising solderability or electrical contact resistance.
Frequently Asked Questions about Copper Terminal Contact for EV Charging Pile Contactor
What international quality and environmental certifications do these Copper Terminal Contacts for EV Charging Pile Contactor comply with?
+
-
Our production facilities operate under IATF 16949 and ISO 9001 quality management systems. All parts are fully compliant with RoHS, REACH, and relevant IEC electrical standards.
How do you prevent the silver coating from flaking or peeling off the copper substrate during high-current operations?
+
-
We utilize a strict ultrasonic alkaline cleaning pretreatment combined with an optional electroplated nickel underplate barrier, ensuring exceptional metallurgical adhesion tested under severe thermal shock.
What is the minimum order quantity (MOQ) for custom-designed Copper Terminal Ag-plated for HVDC Contactor?
+
-
Standard MOQ starts at 1,000 pieces per production run, though we accommodate smaller pilot batch runs for initial prototype testing upon technical review.
What anti-tarnish protection is applied to prevent the silver surface from oxidizing during sea freight transport?
+
-
All finished terminals undergo an organic anti-tarnish passivation dip and are vacuum-sealed with desiccant in moisture-barrier bags to prevent sulfurization and discoloration before assembly.
How is packaging handled to prevent deformation of precision Custom Copper Stamping for EV Relay during international shipping?
+
-
Parts are individually nested in custom thermoformed blister trays or anti-static pocket tape-and-reel packaging, then packed in double-walled corrugated export cartons with shock-absorbing foam inserts.
contact us
Send your Copper Terminal Silver Plated For New Energy Switch drawing or sample today for a factory-side stamping review, silver-plating assessment, and production quotation.
