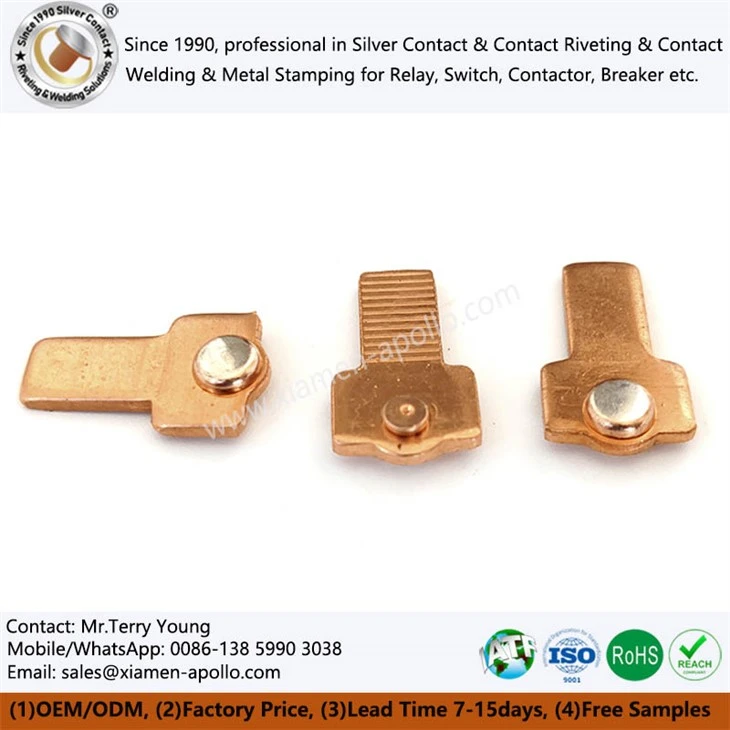

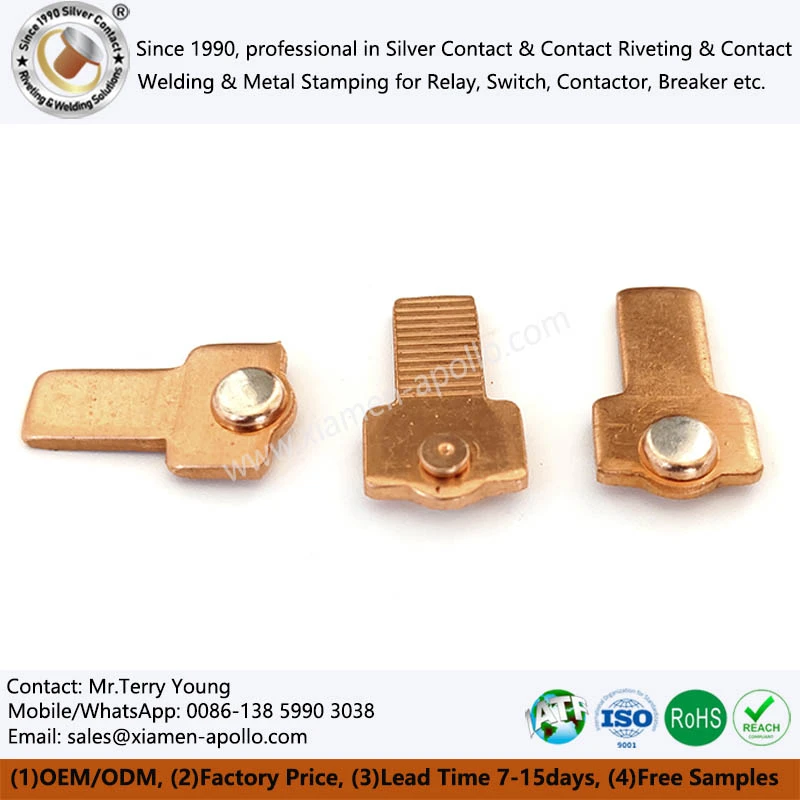

What are Electrical In-Die Riveting Contacts?
Electrical In-Die Riveting Contacts combine contact riveting and metal stamping within a controlled forming sequence, reducing the need to handle and reposition individual contact pieces between separate operations. For relay moving springs, switch contact terminals, and other stamped electrical assemblies, the process is intended to maintain the designed relationship between the contact element and the carrier part while supporting repeatable production. The contact configuration, material grade, dimensions, rivet geometry, and forming requirements are defined from the customer's drawing or technical specification. Production covers stamped electrical contact components for relays, low-voltage switches, transfer-switch contact assemblies, and related control components, with material and process selection determined by the electrical and mechanical requirements of the final assembly.
Manufacturing & Quality Control of Silver In-Die Riveting Connections
Stamping and In-Die Riveting
The production sequence integrates metal stamping with contact riveting so that the stamped terminal and contact element are formed as a controlled assembly.
Contact Position Inspection
Inspection should verify the location of the electrical contact relative to the stamped carrier.
Dimensional and Mechanical Inspection
Finished parts can be checked against drawing dimensions and project-specific mechanical requirements.
Production Traceability
For recurring relay and switch programs, inspection criteria should be linked to the approved drawing and production revision.

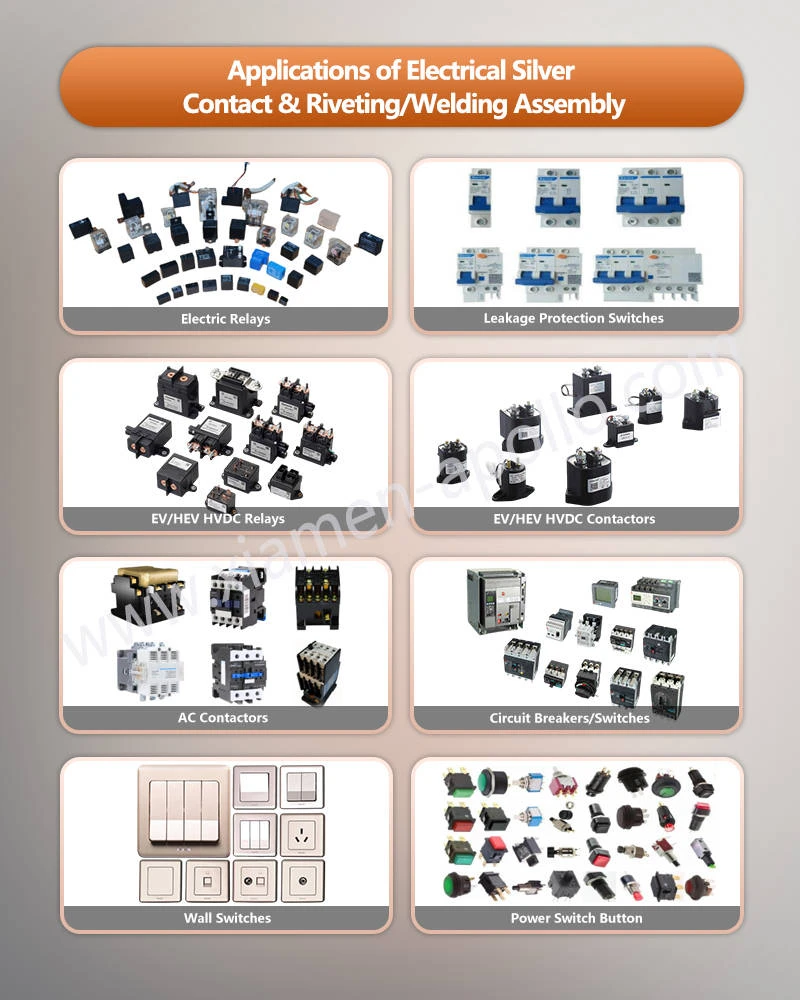

Typical Application Scenarios of Riveted Silver Electrical Contacts
Relay Moving Spring Assemblies
Riveted Silver Connectors can be used for relay moving-spring assemblies where a conductive contact element must be fixed to a stamped spring or terminal.
Low-Voltage Switch Contact Terminals
For low-voltage switch terminals, the contact assembly must maintain the designed contact position during repeated mechanical operation.
Smart Home Relay Components
Smart home control modules commonly use compact relay assemblies for switching lighting, power, and appliance loads.
Transfer-Switch Contact Assemblies
Transfer-switch contact assemblies require controlled positioning of the conductive contact relative to the moving mechanism.
Customization & Deliverables of In-Mold Silver Riveting Contacts
Drawing-Based Engineering Review
Production can be based on customer 2D drawings, CAD files, or defined dimensional specifications.
Material and Contact Configuration
The contact material can be selected according to the required electrical and mechanical characteristics.
Tooling and Prototype Samples
For new components, tooling development and sample production should be planned around the final part geometry.
Production and Delivery Planning
Project delivery is based on tooling status, sample approval, order quantity, and the customer's production schedule.
Frequently Asked Questions about Silver Rivet Electrical Connections
What are the primary benefits of choosing Silver Rivet Electrical Connections over manual welding?
In-die riveting combines stamping and cold heading into a single automated progressive stroke, eliminating manual alignment errors, reducing production labor costs, and significantly improving mechanical pull-off strength consistency across high-volume production batches.
How is the mechanical pull-off strength of the silver rivet verified during production?
Pull-off strength is verified using destructive shear testing per ISO standards, supported by 100% inline optical and load-cell monitoring systems that instantly reject any component failing to meet minimum retention force thresholds.
How do you prevent silver contact surfaces from tarnishing during international shipping?
Finished contact reels are hermetically sealed in anti-static vacuum barrier bags infused with Vapor Corrosion Inhibitor (VCI) agents, effectively isolating the silver layer from atmospheric sulfur and moisture during transit.
Are your manufacturing facilities certified for automotive and low-voltage switchgear supply chains?
Our production lines operate under strict IATF 16949 and ISO 9001 quality management systems, ensuring full lot traceability, material compliance with RoHS/REACH, and adherence to IEC 60947 standards.
