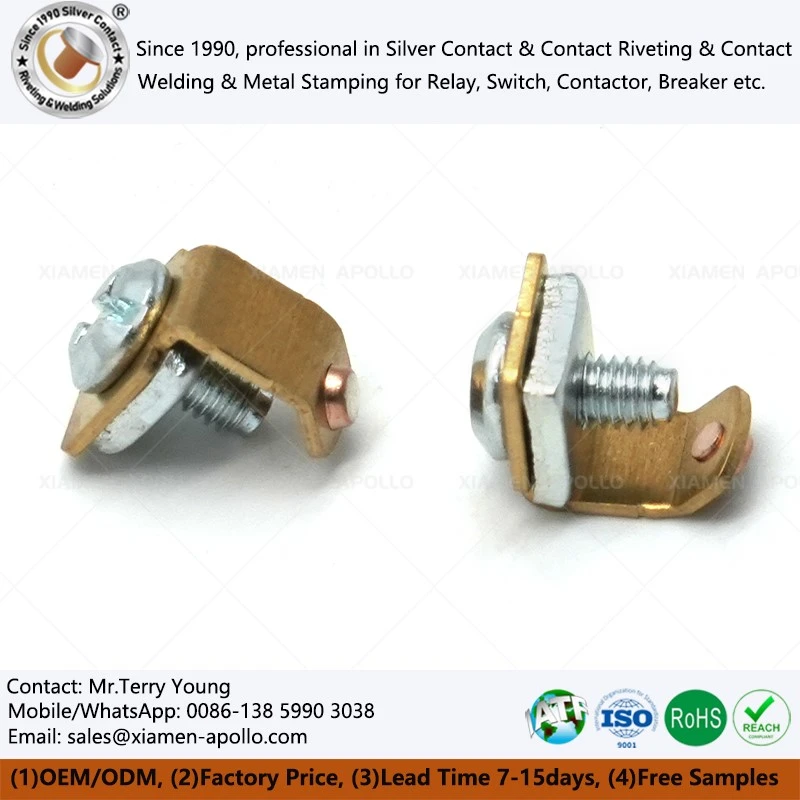

What is the Electrical Switch Brass Part Metal Stamping?
Electrical switch brass part metal stamping components serve as primary current-carrying paths and contact carriers in low-voltage switching devices. These assemblies combine high-conductivity C2680 brass substrates with riveted or resistance-welded silver-alloy tips (AgSnO2 or AgNi) to carry continuous electrical loads while withstanding repeated mechanical cycling. Engineered for smart meter latching relays, automotive power switches, and miniature circuit breakers (MCBs), these terminals maintain low contact resistance and thermal stability under rated current conditions. Direct-from-factory production supports custom terminal geometry, continuous reel-to-reel plating, and integrated contact assembly to meet precise technical specifications.
Precision Brass Stamping and Contact Assembly of Electrical Contact Assemblies
Stamping Geometry and Forming Control
The brass terminal can incorporate mounting holes, bends, tabs, locating features, and formed contact supports. Tool design must account for material thickness, bend radius, springback, and the relationship between critical features.
Silver Contact Riveting
The riveting process joins the silver contact to the stamped brass base. Rivet dimensions, terminal support, alignment, and forming conditions affect the finished joint. Process validation should verify contact seating, deformation consistency, and retention against the approved drawing and joint-strength requirements.
Burrs, Edges, and Assembly Fit
Stamping burrs and edge deformation can interfere with insertion, insulation clearances, or adjacent components. Burr direction and permissible height should be specified according to the terminal's installation orientation and electrical safety requirements.
Tooling and Production Repeatability
Production tooling should control the dimensions that determine fit, contact position, and repeatability across batches. Tool maintenance intervals and inspection frequency can be set according to production volume, material condition, and historical process variation.
Downstream Application Integration of Electrical Switch Socket Contact Part
Smart Meter Latching Relays:
Formed brass terminal arms fitted with AgSnO2 contacts provide high magnetic impulse endurance and minimal contact bounce, maintaining low power loss under 100A continuous load switching.
Automotive Power & Horn Switches:
High-durability brass terminals engineered to withstand steady automotive vibrations (10–2000 Hz) and engine bay temperatures up to 125°C without contact force degradation.
Miniature Circuit Breakers (MCB) & MCCBs:
Heavy-gauge stamped brass current paths fitted with arcing-resistant silver alloy tips designed to route high fault currents safely into arc chutes.
Smart Home Wall Switches & Dimmers:
Precision-stamped brass contact blades providing quiet mechanical switching feel and zero-flicker current delivery across LED driver capacitive loads.
Frequently Asked Questions about Brass Stamping Contact Connector Accessories
What brass grades are standard for Switch Terminal Accessories Brass Stamping?
+
-
C2680 (CuZn37) yellow brass in half-hard (H02) or hard (H04) tempers is standard. It offers an optimal balance between yield strength, formability, and electrical conductivity (28%–32% IACS) for switch and relay terminal components.
What plating options are available for these stamped brass terminals?
+
-
Terminals can be fully or selectively electroplated with silver (1–5 μm), bright/matte tin (3–8 μm), or nickel (1.5–3 μm) over a copper flash undercoat to prevent brass oxidation and enhance solderability.
What certifications and compliance standards apply to these terminals?
+
-
All brass stamping terminals comply with RoHS and REACH regulations. Production processes are managed under IATF 16949 and ISO 9001 quality systems, with full material traceability and IMDS reporting available.
Can the terminal dimensions and contact position be customized?
+
-
Yes. OEM designs can be developed from approved drawings, CAD files, or physical samples. Key inputs include terminal thickness, hole locations, bend angles, contact diameter, contact height, and mounting geometry. Critical tolerances should be agreed before tooling manufacture and confirmed through sample inspection.
What inspections are needed for Brass Stamping Contact Connector Accessories?
+
-
Typical controls include material verification, dimensional inspection, contact-position checks, burr assessment, and visual inspection of the riveted joint. Depending on the application, testing may also include contact resistance, joint retention, and temperature rise. The inspection plan should identify test methods, sampling frequency, and acceptance limits.
