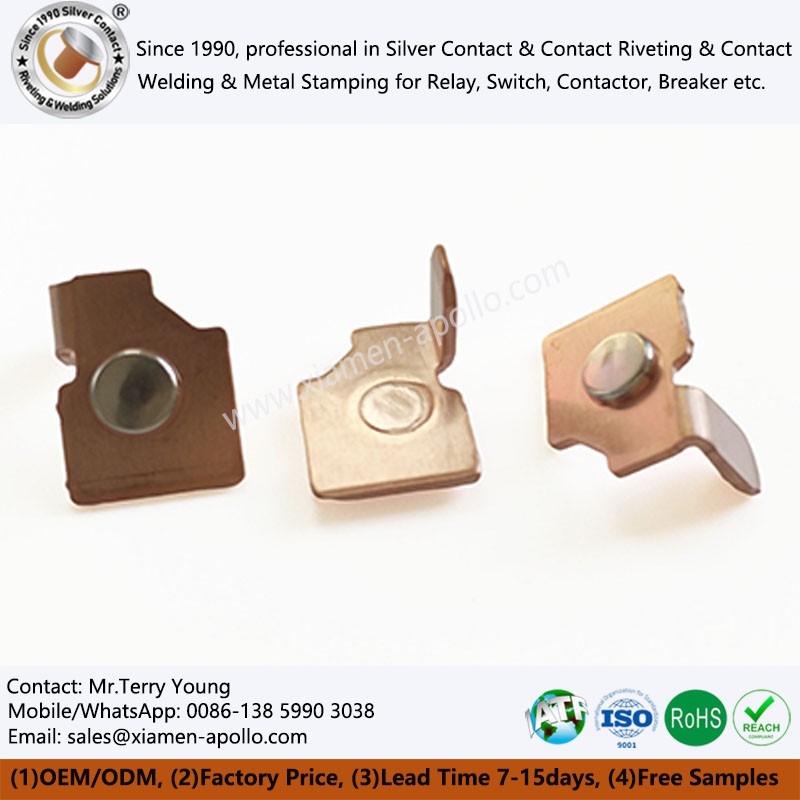

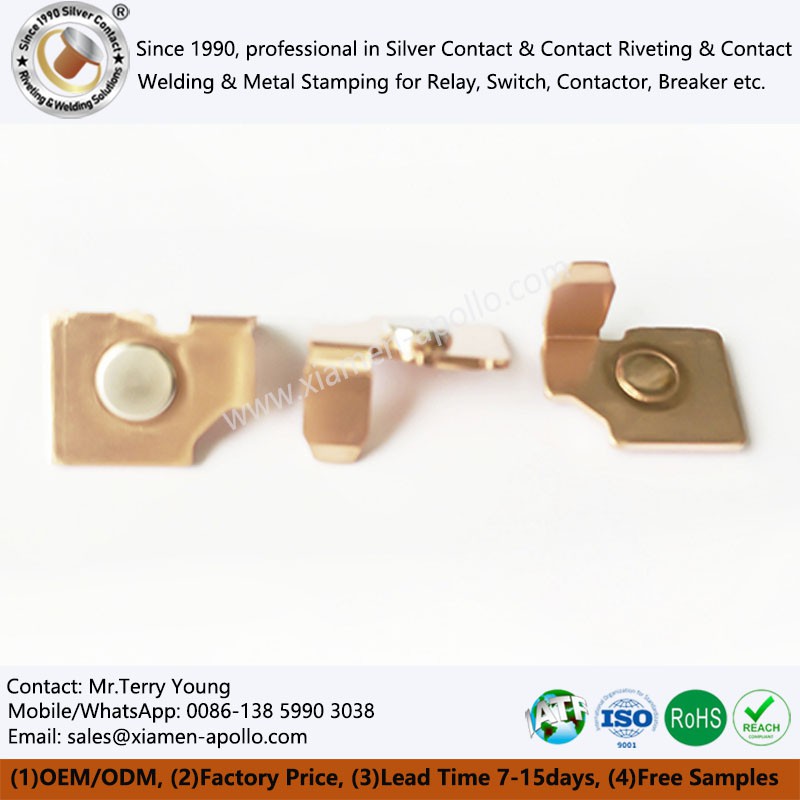

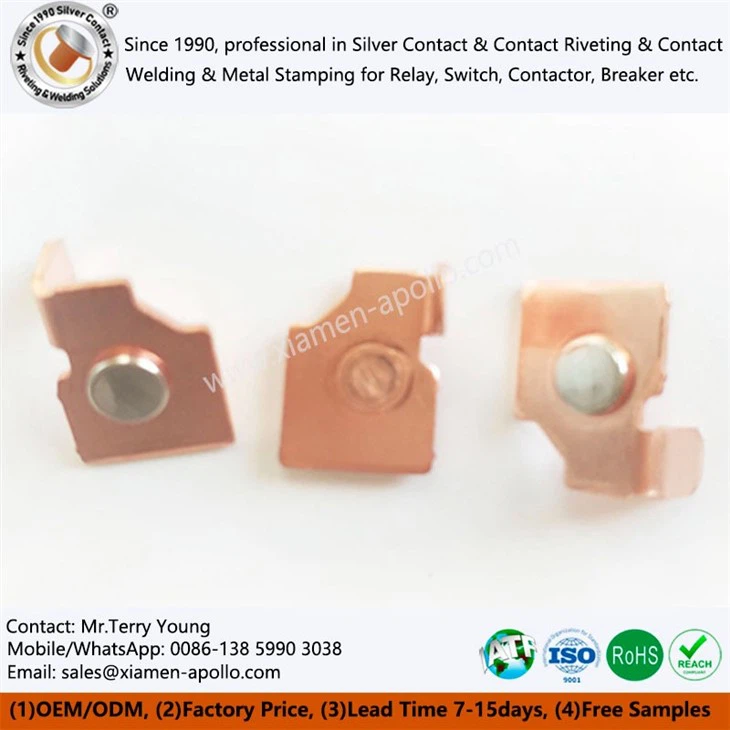

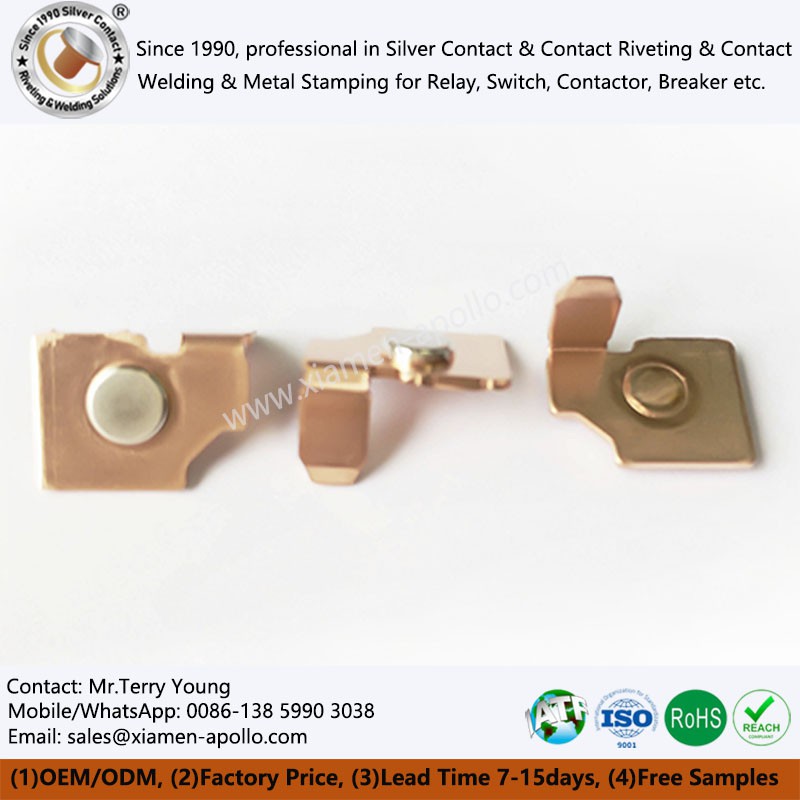

What is the Movable Contact for Photovoltaic PV Inverter Relay?
Movable Contact for Photovoltaic PV Inverter Relay is engineered specifically for high-capacity solar energy systems, serving as the primary mechanical switching bridge inside photovoltaic inverter relays. Designed to handle high DC surges and continuous thermal loads, the component integrates a durable silver-cadmium-free alloy contact tip joined securely to a precision-stamped stainless steel spring blade. As a direct-source manufacturing facility, we provide fully customized bulk production of these critical switching components for global low-voltage apparatus brands, ensuring consistent electrical performance, minimal contact resistance, and prolonged operational endurance under extreme solar working conditions.
Core Electrical & Mechanical Properties of Electrical Contacts for Solar DC Relay
DC Arc Suppression Efficiency
The contact tip utilizes a fine-grain AgSnO2 material formulation to resist material transfer and severe arc erosion during high-voltage DC interruption in photovoltaic systems.
01
Thermal Stability Management
Maintains stable contact resistance below 3.0 mΩ at rated operational current, restricting temperature rise within acceptable thresholds during continuous 24/7 solar generation cycles.
02
Spring Blade Elastic Memory
The integrated stainless steel stamping component provides consistent clamping force and fatigue resistance across a minimum of 100,000 full mechanical switching operations.
03
Contact Bounce Minimization
Optimized mass distribution and leaf spring rigidity minimize micro-bounce events during closure, preventing premature pitting and micro-welding on mating surfaces.
04
In-Die Riveting Process Advantages of Oxidized Electrical Contact for Solar Relay
Progressive Stamping Integration
Combines blanking, piercing, and mechanical riveting within a single high-precision progressive die to maintain absolute alignment between the contact tip and spring center.
Elimination of Secondary Operations
In-die automated feeding of silver rivets ensures high positional accuracy, removing manual handling errors and reducing per-unit manufacturing costs for bulk orders.
Structural Pull-Out Resistance
Mechanical staking parameters are calibrated to achieve a rivet pull-out force well above standard industrial thresholds, preventing detachment under heavy shock loads.
Frequently Asked Questions about Electrical Contacts for Solar Switch
What is the function of the Moving Contact for PCB Photovoltaic PV Relay?
+
-
The movable contact transfers the mechanical action generated by the relay mechanism to the electrical contact interface. The spring blade component facilitates controlled movement, while the silver composite contact establishes or breaks the electrical circuit.
What material is primarily used for the Moving Contact for New Energy Relay?
+
-
The contact tip typically utilizes AgSnO₂ (silver tin oxide), which offers excellent resistance to DC arc erosion and contact welding required for photovoltaic applications.
Can the dimensions of the stainless steel spring blade be customized to fit our specific relay housing?
+
-
Yes. Our engineering team can provide full customization based on your 2D or 3D CAD drawings, adjusting the thickness, length, and bending angles to meet your precise specifications.
Do these movable contact assemblies comply with international environmental standards?
+
-
All products strictly adhere to RoHS and REACH regulations and utilize conflict-free metals; our product system is certified under the IATF 16949 quality management standard.
contact us
If you are interested in our Movable Contact for Photovoltaic PV Inverter Relay or have any questions, please feel free to contact us. We have a professional and enthusiastic team, ready to serve you at any time.
