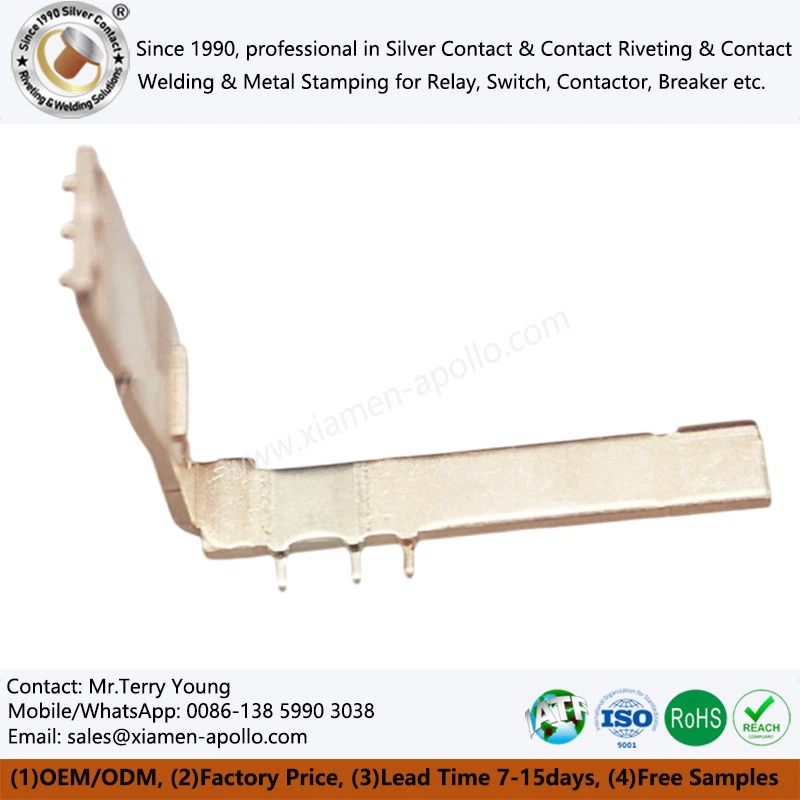

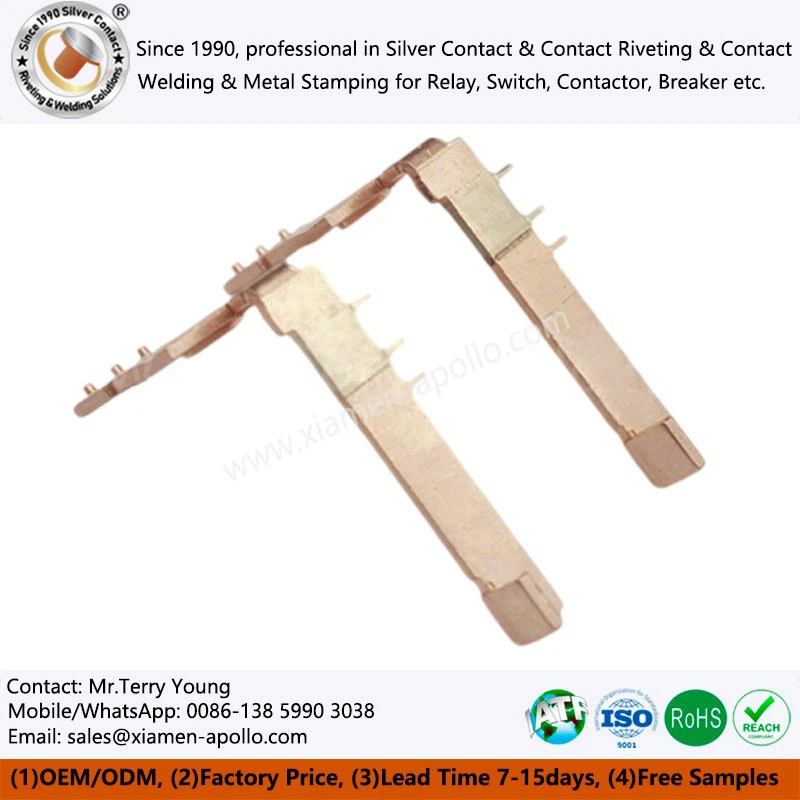

Product Profile of Primary Wire Manganin Shunt
The Primary Wire Manganin Shunt is an essential component in energy measurement systems, specifically designed for energy meters and prepayment meters. It serves as a shunt resistor, allowing for accurate current measurement and control. With its unique bar shape, the shunt is fabricated using high-quality manganese copper stampings, ensuring durability and precise performance.
Product Features
Key Features
High Accuracy
The manganese copper composition provides exceptional accuracy in current measurement, making it ideal for energy meters.
Low Temperature Coefficient
The shunt has a minimal temperature coefficient, ensuring stable performance across varying environmental conditions.
Durability
Constructed from high-quality materials, the shunt exhibits excellent mechanical and thermal stability.
Compact Design
The bar shape design allows for easy integration into various energy meter systems, optimizing space without compromising performance.
Technical Features
Technical Features
Resistance Value
Customizable resistance values tailored to specific applications in energy measurement.
Welding Method
Utilizing braze welding techniques for enhanced electrical connections and mechanical stability.
Environmental Resistance
Designed to withstand harsh environmental conditions, ensuring longevity and reliability.
Production Process
| Material Selection | High-grade manganese copper alloys are chosen for their excellent conductivity and resistance characteristics. |
| Stamping | The alloys are stamped into the desired bar shape, ensuring uniformity in thickness and dimensions. |
| Machining | Precision machining processes refine the shape, enabling exact resistance values and surface finish. |
| Welding | The bar is then subjected to braze welding, creating a robust connection that enhances electrical performance. |
| Testing | Each shunt undergoes rigorous testing for electrical performance, including resistance, current handling, and temperature stability. |
| Quality Control | A final quality control check ensures that all products meet industry standards and specifications. |
Packaging and Transportation
Packaging
The Primary Wire Manganin Shunt is packaged carefully to prevent any damage during transportation:
Individual Packaging: Each shunt is wrapped in anti-static materials and cushioned to avoid physical impacts.
Labeling: Clear labeling on each package provides essential information such as resistance values, current ratings, and safety instructions.
Bulk Packaging: For larger orders, shunts are packaged in sturdy boxes to facilitate safe handling and storage.
Transportation
Shipping Methods: The shunts can be transported via road, air, or sea, depending on the urgency and destination of the order.
Tracking: Each shipment is accompanied by tracking information, ensuring customers can monitor the delivery status.
Timely Delivery: Our logistics partners are selected for their reliability, guaranteeing timely delivery of products to clients worldwide.
