Products Description

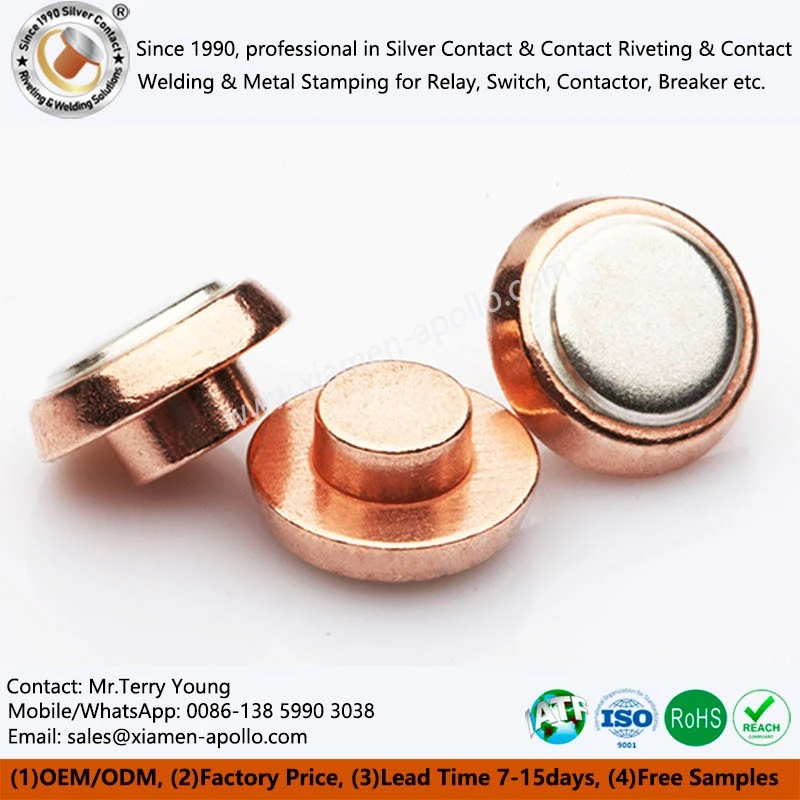

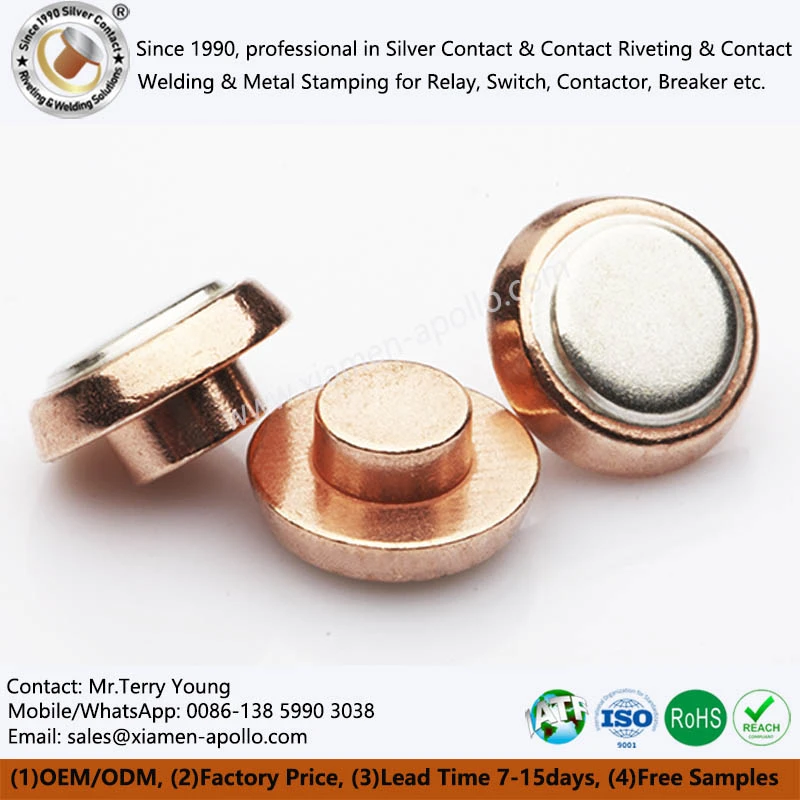

Our specially developed and manufactured Silver Electronic Contact for Energy Meter Latching Relay features an innovative "double eyelid/stepped" head structure design, achieving a precise balance between cost control and performance assurance, making it the preferred component for global electricity meter manufacturers. This product focuses on the specific adaptation of magnetic latching relays for power meters, employing a composite contact core architecture. It abandons the limitations of traditional integral or three-component contact designs, and through refined material formulation and manufacturing processes, provides reliable conductivity, disconnection, and wear resistance solutions for electricity meter devices.
Core properties and characteristics
Unique Head Structure
An innovative "double eyelid/stepped" design, with a thickened silver layer on the core working surface ensuring wear resistance and conductivity stability, while the non-working surface has a simplified silver layer, achieving precise cost control while maintaining performance balance for Electrical Contacts for Miniature High-Power Latching Relay.
Composite Contact Architecture
A customized composite structure avoids the high cost of monolithic silver contacts and the poor compatibility of triple-contact designs. Precise bonding between the core conductive layer and the base layer balances conductivity, wear resistance, and mechanical installation compatibility for Steps Silver Contacts for Bistable Power Latching Relay.
Specialized Adaptability
Size and parameters fully conform to the core requirements of magnetic latching relays for electricity meters, covering single-phase and three-phase meters. It can directly adapt to mainstream models without adjusting the installation structure, reducing adaptation and R&D costs for Point Contact for DC Electronic Latching Relay.
Stable Environmental Adaptability
Optimized materials and processes for complex operating conditions such as temperature, humidity, and voltage fluctuations. With a temperature range of -40℃ to 125℃, it possesses excellent anti-interference capabilities, ensuring accurate and stable meter readings under various environments.
Manufacturing Advantages
Precision Composite Process
Under strictly controlled temperature and pressure conditions, silver and the substrate achieve interdiffusion at the molecular level, forming a composite interface with uniform transition and extremely strong adhesion. This process ensures highly controllable and consistent silver layer thickness, guaranteeing that the silver layer under each contact's "double eyelid" is sufficiently thick and uniform for Electrical Contacts for Miniature High-Power Latching Relay.
Step-Shaped Forming Technology
The "double eyelid" or step-shaped forming is not a simple machining process, but rather a one-time stamping process using high-precision molds. This requires a deep understanding of the plastic flow of materials to ensure clear, crack-free, and burr-free step edges, and that the silver layer remains dense and intact at the step transitions, without any weak points for Steps Silver Contacts for Bistable Power Latching Relay.
Comprehensive Cleanliness Control
From raw material processing to composite, stamping, cleaning, and packaging, all processes are carried out in a clean environment that exceeds industry standards, minimizing the embedding of impurities and ensuring the initial purity of the contact surface for Point Contact for DC Electronic Latching Relay.
Technical Features and Main Functions
Low and Stable Contact Resistance
Electronic Contacts for Smart Meter Relay's thick silver working surface provides excellent conductivity, combined with extremely low interface resistance, ensuring minimal fluctuations in contact resistance from the beginning to the end of the meter's lifespan. This is the foundation for long-term stable metering accuracy.
01
Excellent Resistance to Arc Erosion
The oxide formed by high-purity silver under arcing still retains a certain degree of conductivity, and the thick silver layer provides ample material margin for the contacts, resisting the arc erosion generated by the magnetic latching relay during long-term operation, greatly extending the reliability of the meter throughout its entire lifespan for Point Contact for DC Electronic Latching Relay.
02
Excellent Resistance to Welding and Wear
The good ductility of silver combined with the hardness of the composite substrate allows the contacts to both buffer the mechanical impact during closure, preventing cold welding, and resist minor sliding wear, maintaining a stable contact surface morphology for Steps Silver Contacts for Bistable Power Latching Relay.
03
Excellent Heat Dissipation
The copper substrate acts as a "heat sink" for the contacts, rapidly dissipating the Joule heat generated at the contact points, preventing excessive temperature rise, thus slowing down material aging and improving current carrying capacity.
04
