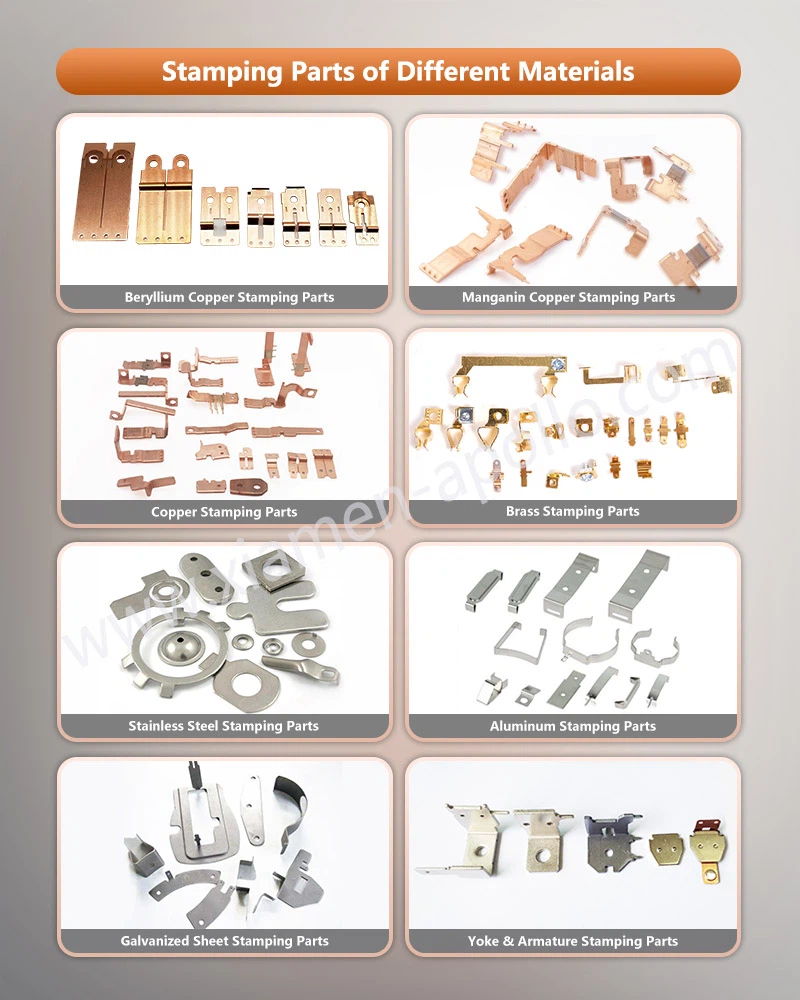

what are the Electrical Copper Stamping Parts?
Electrical copper stamping parts manufactured from high-purity C1100 ETP copper optimize electrical conductivity (>98% IACS) and dynamic flexural fatigue resistance in relay spring leaves and switch flexures. Engineered to eliminate local thermal hot spots under high continuous current loads, these precision components utilize tight dimensional tolerances (±0.01mm) to ensure stable contact alignment in smart home controls and low-voltage switchgear. Direct factory production capacity supports high-volume OEM/ODM demand with strict batch-to-batch repeatability.
Material & Environmental Advantages of Copper Sheet Stamping
High Electrical Conductivity Matrix
C1100 Electrolytic Tough Pitch (ETP) copper retains a minimum copper content of 99.90%, delivering superior electrical conductivity exceeding 98% IACS. This intrinsic material property minimizes I²R resistive heating under sustained amperage, keeping operational temperature rise below 30 K during continuous full-load electrical cycles.
01
Non-Toxic and 100% Recyclable Alloy Base
Copper raw materials used in our stamping processes contain zero hazardous lead, cadmium, or heavy metals, maintaining full compliance with global environmental mandates. Scrap generated during progressive stamping is systematically segregated and 100% recycled back into high-purity metallurgical production streams without downcycling grade loss.
02
Stress Corrosion Resistance Under Thermal Cycling
The underlying grain structure of C1100 copper remains stable across wide ambient operating windows (-40°C to +125°C). Controlled annealing prevents stress corrosion cracking (SCC) at critical bend radii, ensuring long-term mechanical spring tension when installed inside enclosed low-voltage switch devices.
03
Surface Coating Compatibility for Oxidation Prevention
The natural substrate allows uniform electroplating of silver, tin, or nickel layers without blistering or pinhole formation. Surface-treated copper stamping blanks exhibit enhanced salt-spray resistance (up to 96 hours ASTM B117) and resist atmospheric oxidation during storage and automated assembly.
04
Production & Testing Capability of Custom Copper Stamping
High-Speed Automated Progressive Stamping Line
Our automated press room utilizes high-speed stamping presses equipped with precision servo feeders. Tooling designs integrate multi-stage progressive dies that blank, pierce, form, and coin complex contact springs at up to 400 strokes per minute, eliminating manual handling errors and ensuring part consistency.
CMM and Automated Optical Inspection (AOI)
Dimensional conformity is verified using automated CMM equipment and 2.5D optical measuring systems. Key characteristics-such as hole centerline pitch, bend angles, and overall planarity-are tracked in real-time using Statistical Process Control (SPC) to ensure Cpk values remain above 1.67.
Cleanroom Cleaning and Packaging
Finished electrical copper stampings undergo ultrasonic multi-stage degreasing to eliminate drawing lubricants and surface particulates. Cleaned parts pass through a dust-free packaging area, preventing environmental contamination before heat-sealing in moisture-proof anti-static bags.
Sustainable Eco-Friendly Manufacturing
Stamping operations run under closed-loop oil recovery and filtration systems, reducing lubricant waste by over 85%. Air exhaust scrubbers and energy-efficient servo-electric presses maintain compliance with clean factory environmental regulations while stabilizing manufacturing costs.
Frequently Asked Questions about OEM Factory Customized Copper Metal Stamping Parts
How do you prevent spring distortion during deep stamping processes?
+
-
We design progressive dies with precise ribbing, controlled spring-back calculations, and balanced strip carrier layouts. Grain direction of the rolled copper strip is aligned parallel or perpendicular to major bend lines based on finite element bend stress simulations.
What plating thickness is ideal for Copper Stamped Components?
+
-
Silver plating typically ranges from 2 to 5 μm for optimal contact resistance and arc erosion protection. Tin plating (3 to 8 μm) is used for solderable wire terminals, while nickel (1.5 to 3 μm) serves as an undercoat to prevent copper-zinc diffusion.
What dimensional tolerances can your progressive dies maintain?
+
-
Critical stamped dimensions-such as contact rivet hole diameters, notch locations, and flat surface planarity-are consistently maintained within ±0.01 mm across high-volume production batches using carbide die inserts and sensor-guided press stops.
How is burr formation controlled on blanked copper edges?
+
-
Tooling punch-to-die clearances are maintained between 3% and 5% of material thickness. Active die maintenance and online sensor monitoring detect punch wear, keeping micro-burrs strictly under 0.02 mm to prevent dielectric clearance issues in tight switch housings.
How are material certifications and batch traceability handled?
+
-
Every production lot includes raw material mill test certificates (MTC) detailing chemical composition and physical tensile testing. Batches receive unique lot tags linking finished parts directly to incoming copper raw strip coils and press run parameters.
