Products Description

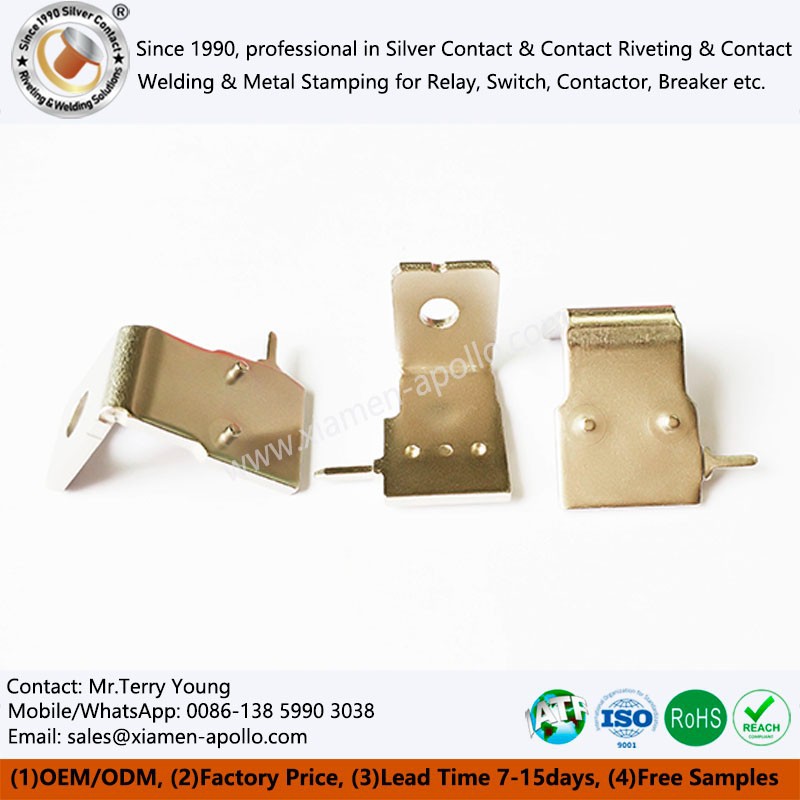

Relay Armature Plate Terminal is mainly used for controlling the on-off of current in the relay armature. As a key component for current conduction in the relay, it is responsible for achieving precise circuit switching. When the relay coil is energized, the electromagnetic force generated will attract the Electrician Pure Iron Armature, thereby completing the circuit closing or opening. Its precise electrical contact and long-term stable mechanical performance enable the relay to function reliably in various electrical equipment.
Our Armature in Relay is manufactured with high-precision processing technology, ensuring that every product meets stringent industrial standards, delivers trouble-free operation, avoids electrical problems caused by poor contact, and guarantees the efficient operation of the relay.
Product Advantages
Anti-deformation & Zero Jamming: The Armature Metal Parts of Relays feature excellent fatigue resistance, maintaining structural rigidity even after tens of thousands of opening and closing cycles. Combined with a precision-stamped arc positioning structure, it ensures accurate positioning of the armature during high-speed movement, eliminating the risks of jamming and contact burnout caused by deformation, and meeting the stringent requirements of continuous operation in industrial automation.
Dual Protection for Electrical Conductivity & Temperature Resistance: The lead-free welding technology of the Armature for Electromagnetic Relay forms a metallurgical bond directly on the metal surface, delivering solder-joint strength and electrical conductivity far superior to traditional tin-solder connections, with no solder softening or failure at high temperatures. In high-current breaking scenarios, the solder joints can withstand instantaneous high-temperature impacts, ensuring stable current transmission. Meanwhile, it prevents contact contamination from solder volatilization and extends the service life of the relay.
Precision Dimension Control: CNC punching and pressure welding forming processes ensure that the dimensional tolerances of the threads and pressure plates of the Relay Armature Pure Iron Plate are controlled at the micron level, with minimal positioning accuracy deviation for products in the same batch. It can be directly adapted to the relay magnetic circuit designs of different manufacturers without additional debugging. Laser welding is adopted for micro terminals, with the solder joint diameter only 1/3 of that of traditional ones, which hardly affects the armature movement trajectory and meets the design requirements of miniaturized relays.
Protective Design: The surface of the Relay Armature Soft Magnetic Iron is treated with passivation or nickel plating to form a dense protective layer, which can resist corrosion in complex environments such as humidity and salt spray. Optimized structural connection strength is designed for the vibration requirements of new energy vehicles, ensuring no loosening or displacement under high-frequency vibration, and adapting to the long-term operation of extreme working conditions, such as vehicle-mounted and outdoor applications.
Production Process
Relay Armature Plate is strictly made of phosphor bronze and beryllium copper sheets complying with ASTM B194 standard. After incoming inspection, the component purity is verified via spectral analysis to ensure the elasticity and strength meet the design requirements. The raw material surface is degreased and leveled to remove oxide layers and rolling stress, laying a solid foundation for subsequent stamping.

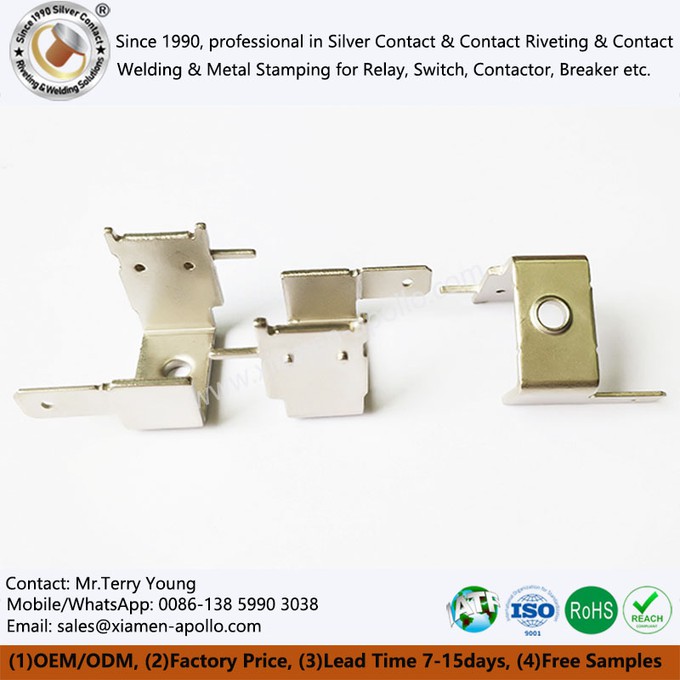

CNC punching machines are adopted for precise stamping to ensure uniform dimensions of threads, pressure plates, and arc parts. By precisely controlling metal flow, the formation of weak points is avoided. For Electrician Pure Iron Armature with special structures, the pressure welding forming process is applied to directly form welding spots during stamping, eliminating the subsequent welding process and improving structural stability.
For conventional Armature in Relay, lead-free welding technology is used to form a metallurgical bond on the metal surface through high-temperature pressing. The welding spots achieve high electrical conductivity and high temperature resistance without solder. For micro terminals, laser welding technology is adopted, featuring tiny and precise welding spots with an extremely small heat-affected zone that barely affects the armature movement track. After welding, the strength of the welding spots is verified by ultrasonic testing to ensure no cold welding or delamination defects.
A multi-dimensional inspection system is established to implement full-process inspection from raw material incoming to finished product delivery. The metal elasticity and strength are inspected at the raw material stage; the stamping dimensional accuracy and welding strength are inspected during production; X-ray flaw detection, hardness testing, and resistance testing are conducted at the finished product stage. All these measures ensure that the structural stability and electrical conductivity of each Armature Metal Part of Relays comply with IEC/UL standards. Defective products are directly rejected, with the yield rate reaching 99.7%.
Why Choose Us
Customized Services for a Perfect Match to Your Requirements
Every project has unique requirements for the Armature for Electromagnetic Relay – whether it comes to specific dimensions, material selection, or special electrical performance demands, we can provide precise customized solutions. Through close collaboration with customers, we ensure each terminal is fully adapted to your equipment and working environment, maximizing the application effectiveness of your products.
Strict Quality Control & High-Precision Manufacturing
Stringent control is applied to every production step with precision stamping, CNC machining, and high-standard surface treatment, ensuring our Relay Armature Pure Iron Plates deliver high conductivity, wear resistance, and ultra-low resistance. Each batch undergoes rigorous electrical and mechanical tests, so all ex-factory terminals meet international industrial standards and support the long-term stable operation of your equipment.
Efficient Delivery & Global Service Support
Our automated production lines and advanced inventory management system enable the fast delivery of Relay Armature Plate Terminals, which not only meet your urgent needs but also allow flexible adjustment of production plans according to project scale. No matter where you are located, our global customer service team will provide timely technical support to ensure the smooth progress of your projects.
Contact Us
If you have any requirements concerning the procurement, selection, sample request, or customization of Relay Armature Plate Terminal, or if you wish to obtain further information regarding product details, please do not hesitate to contact us. We will deploy a professional team to provide personalized one-on-one service, develop customized adaptation solutions, and guarantee stable supply, precise selection, and efficient procurement processes.
