Products Description

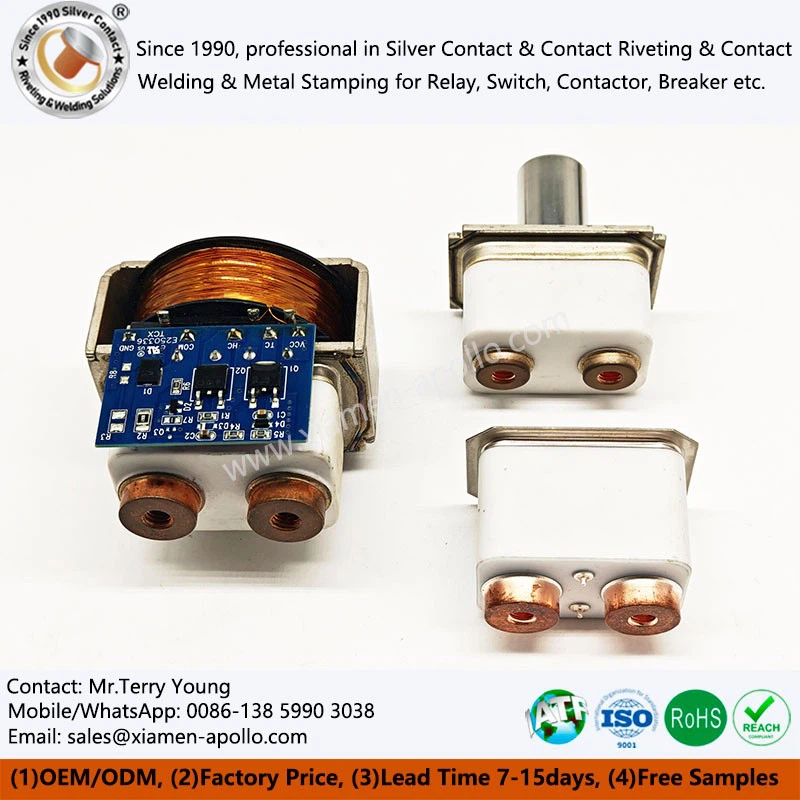

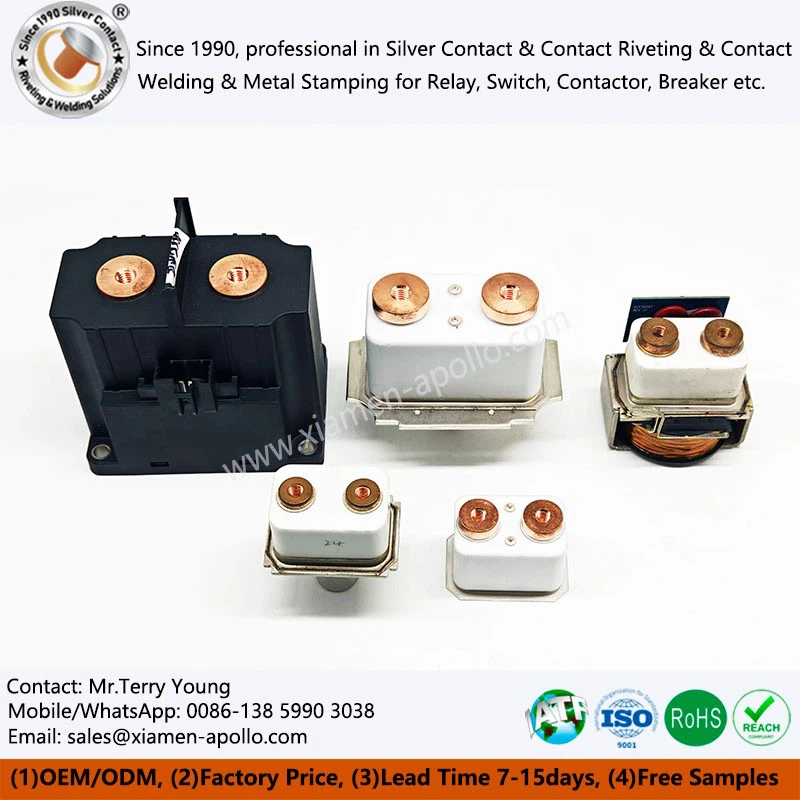

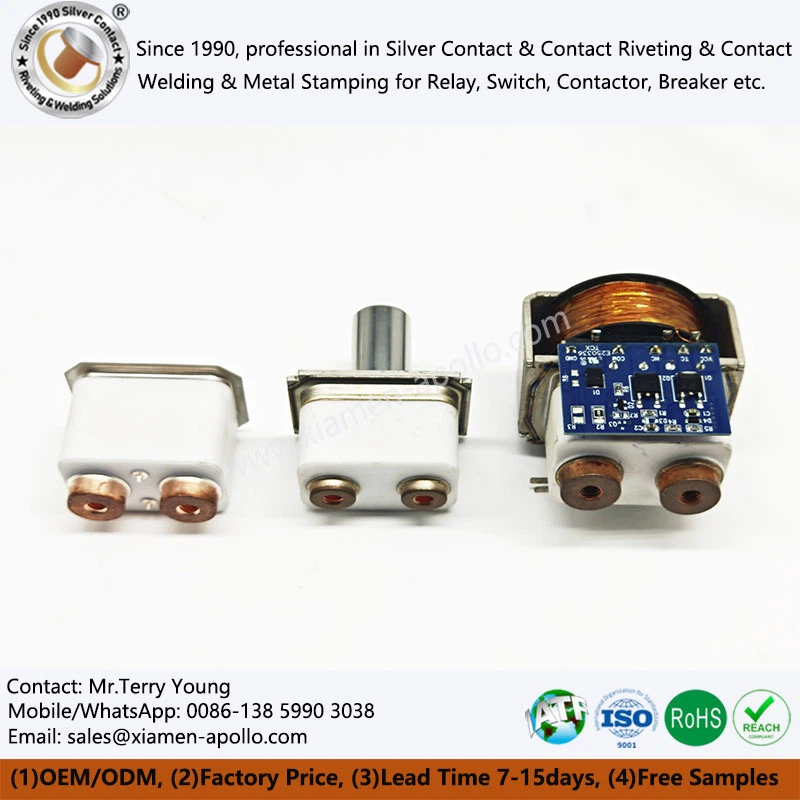

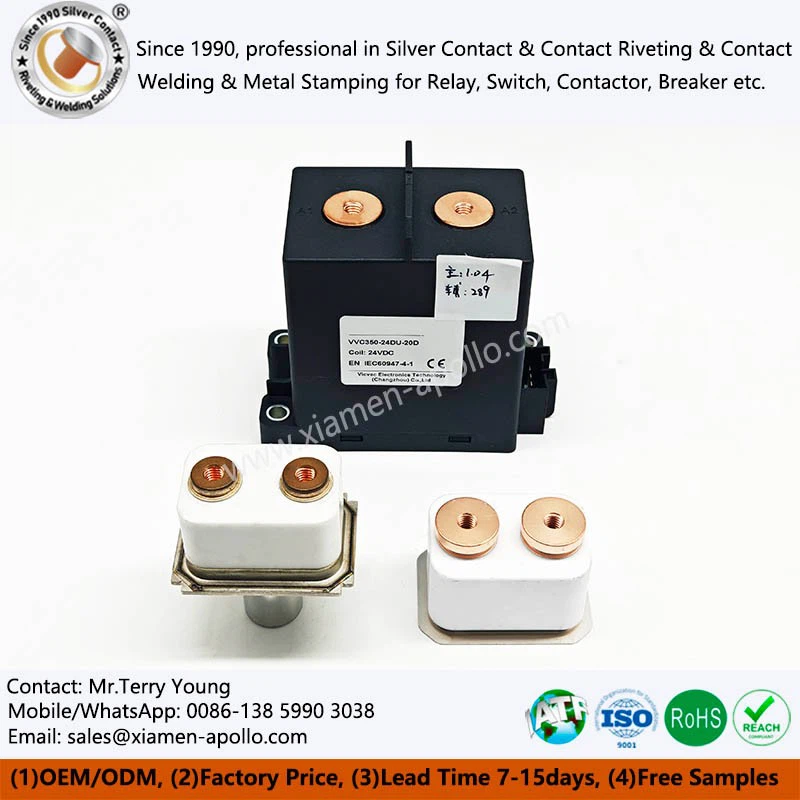

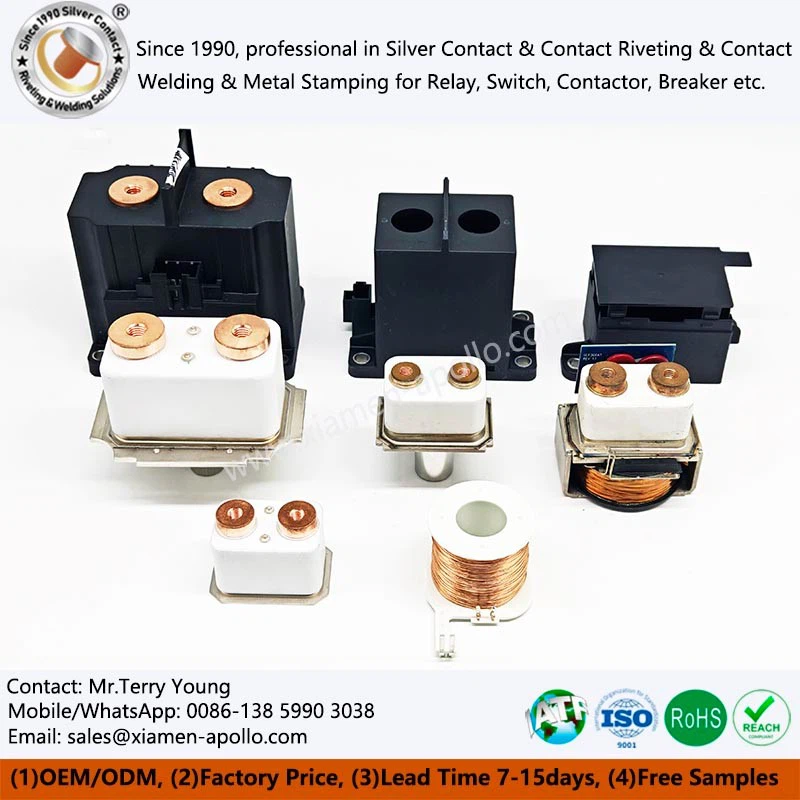

Relay Alumina Ceramic Components are precision alumina ceramic parts specifically designed and manufactured for high-reliability relays-particularly high-voltage DC contactors. Primarily serving as arc-extinguishing chambers, insulating supports, and encapsulation bases for current-carrying conductors, these components function to maintain stable insulation performance, mechanical support, and efficient arc management capabilities within environments subject to extreme electrical and thermal stresses.

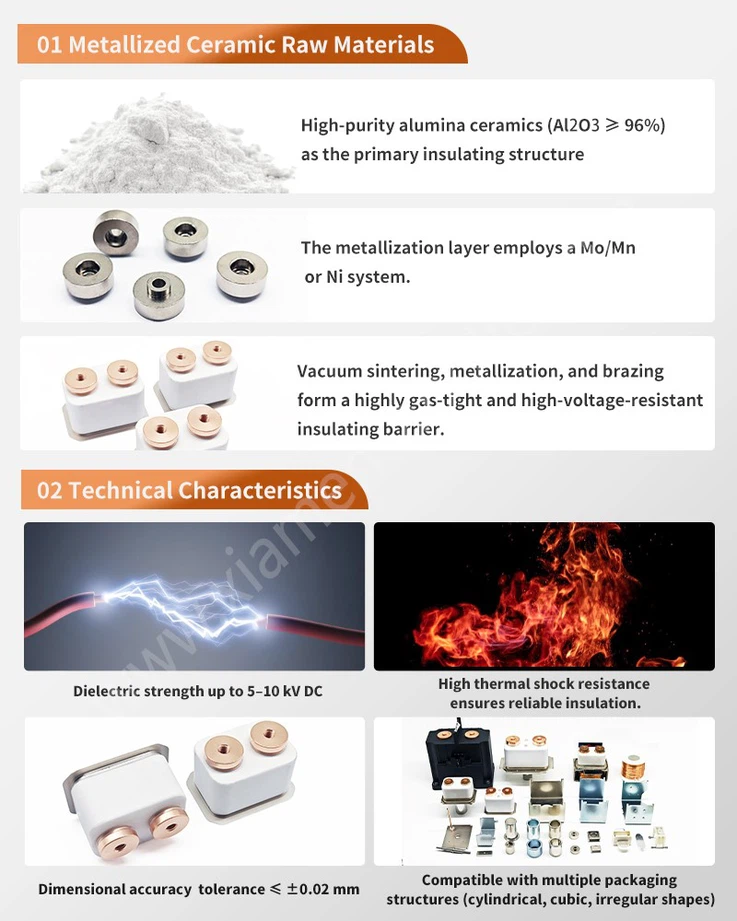

Material Advantages
Electrical Reliability
Alumina ceramics do not melt in high-voltage environments and are minimally affected by electric arcs. When a contactor interrupts high currents, Alumina Metallized Ceramics effectively isolate the arc, protecting the contact system from thermal damage and significantly extending the service life of the relay.
Thermal Stability
Compared to traditional plastics or epoxy materials, Alumina ceramic parts precision machining possess a lower coefficient of thermal expansion and higher thermal conductivity, enabling them to maintain dimensional stability under conditions involving severe temperature fluctuations.
Chemical Inertness
The material is inherently chemically inert and resistant to acid and alkali corrosion, making it suitable for use in a wide range of industrial environments. In applications where there is a risk of exposure to electrolytes-such as in new energy battery management systems-Precision Metalized Ceramics will not fail due to chemical erosion.
Manufacturing Advantages

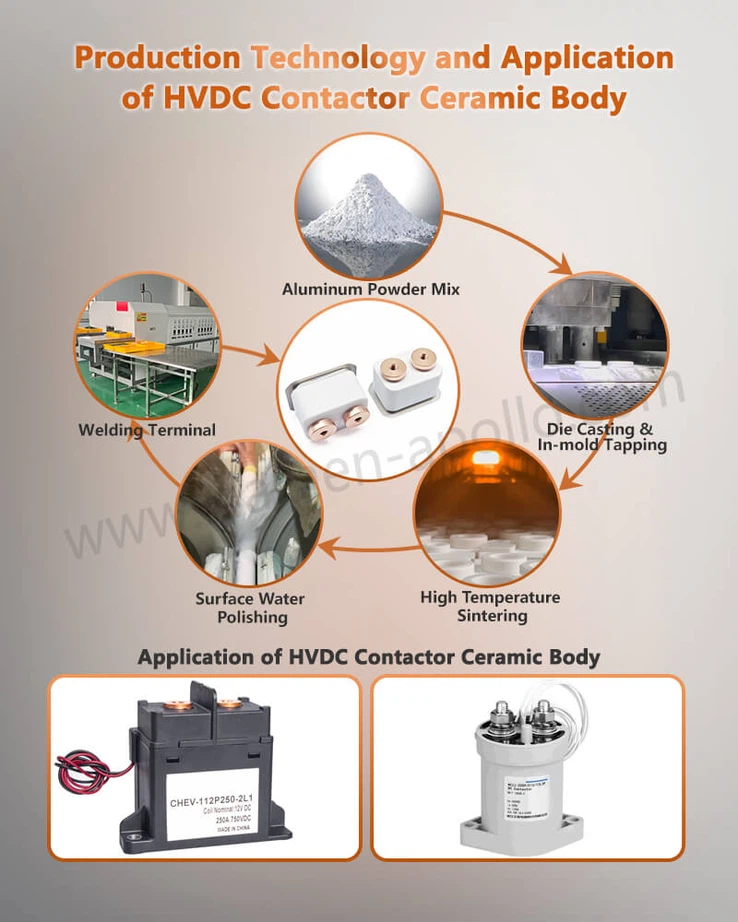

Advanced Powder Metallurgy and Forming Technologies
We have mastered a diverse range of forming processes-including dry pressing, injection molding, and isostatic pressing-enabling us to select the optimal method based on Alumina Metallized Ceramics structural complexity and production volume requirements, thereby ensuring uniform density in the green compacts.
High-Temperature Sintering Process Control
Equipped with high-precision, high-temperature tunnel kilns and sophisticated atmosphere control systems for Metallized Alumina Ceramics for Electrical Components, we precisely regulate sintering temperature profiles and cooling rates to achieve ideal microstructures with a density exceeding 99%.

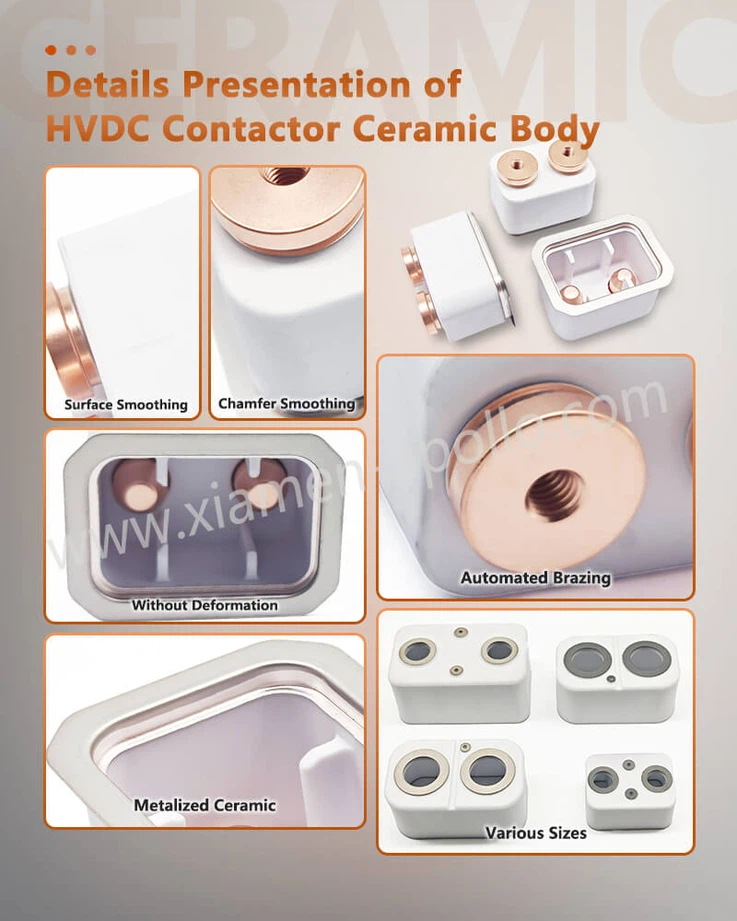

Integrated Precision Machining and Inspection
By incorporating high-precision diamond grinding machines and CNC machining centers for Metalized Ceramic Insulating Tubes Metalizating Ceramic Part-combined with non-contact optical measurement instruments-we ensure stable and rigorous control over tolerances at the micron level.
Frequently Asked Questions
Why choose Precision Metalized Ceramics instead of plastic parts for HVDC contactors?
The primary reason lies in the difference in DC arc resistance. Under the influence of a DC arc, plastic parts carbonize and become conductive, resulting in permanent insulation failure. Alumina ceramics, conversely, are non-flammable and do not carbonize; their insulation performance remains stable even after repeated switching operations, making them the only reliable insulation solution for high-voltage DC operating conditions.
What purity of Metallized Alumina Ceramics for Electrical Components is suitable for new-energy HVDC contactors?
95% alumina is suitable for standard on-board high-voltage applications. 99% high-purity alumina offers superior density, as well as enhanced arc resistance and insulation properties; it is the preferred choice for demanding high-voltage DC environments, such as energy storage systems and high-power charging stations.
How is the air-tightness of the Metalized Ceramic Insulating Tubes Metalizating Ceramic Part within high-voltage contactors ensured?
This is achieved through a combination of high-precision surface lapping and rigorous surface cleanliness control. The sealing surfaces undergo precision lapping using diamond abrasives to ensure strict control over flatness. Furthermore, the finished products are cleaned and packaged in a dust-free environment to prevent dust and impurities from compromising sealing reliability, and are designed to integrate seamlessly with specialized sealing ring structures.
contact us
Our engineering team possesses deep expertise in the material properties and precision machining processes of Relay Alumina Ceramic Components, and stands ready to provide you with professional support-from design refinement to mass production delivery. We invite you to contact us to obtain detailed technical specifications and customized samples.
