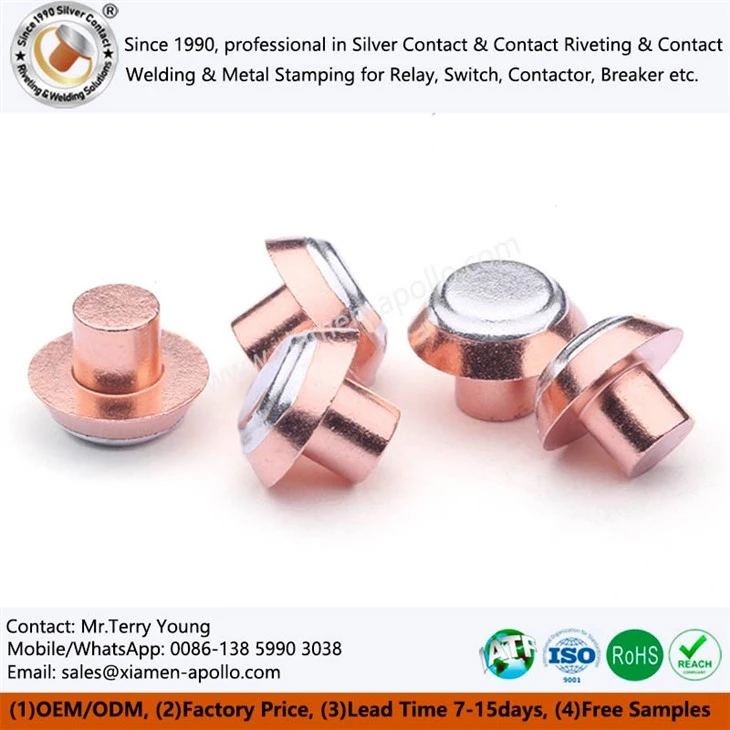

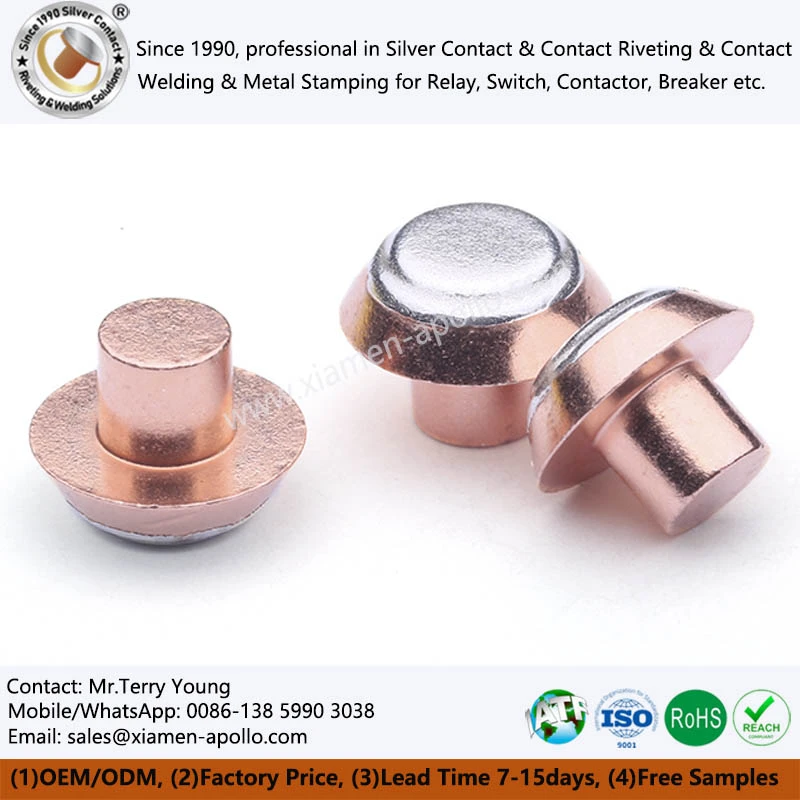

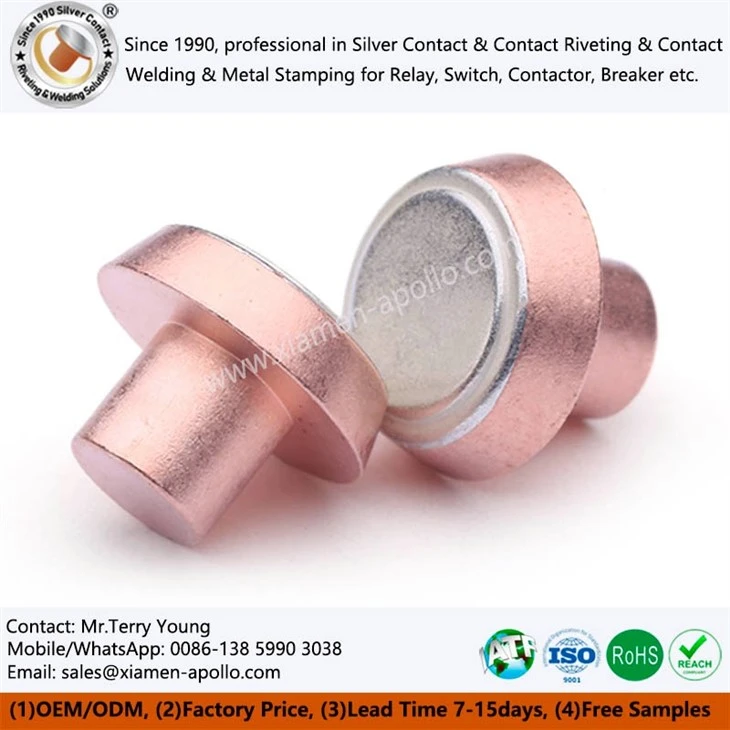

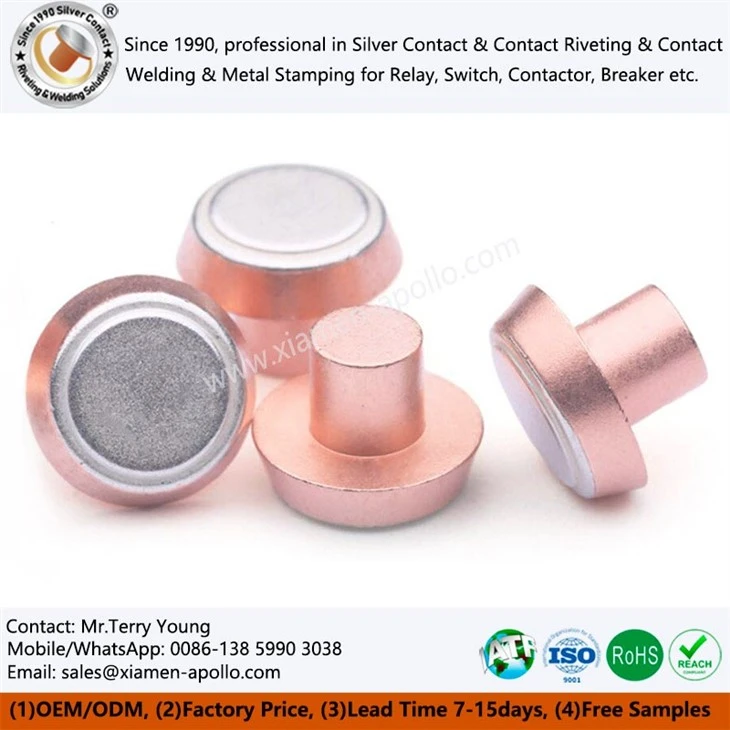

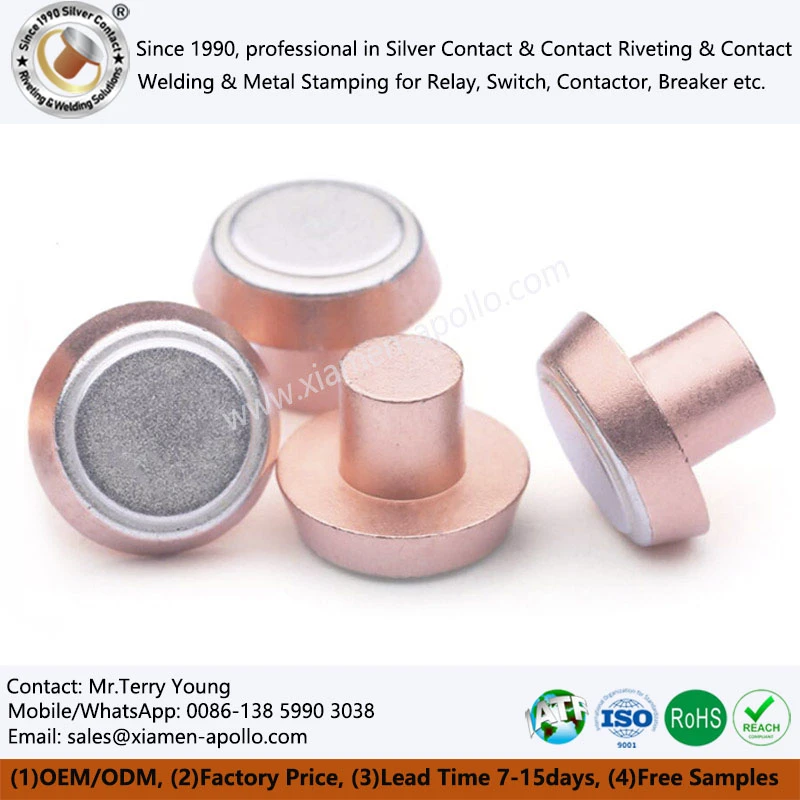

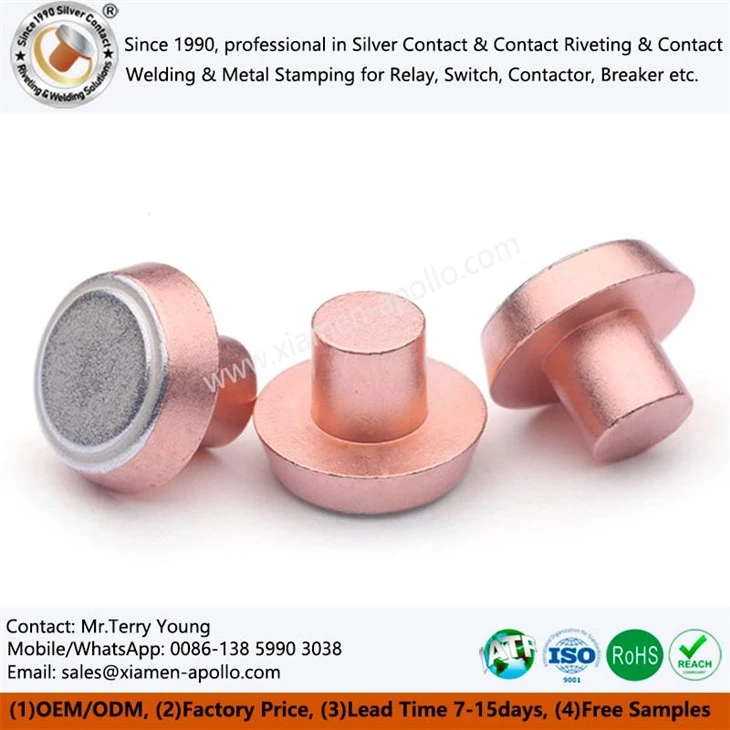

What is the Magnetic Latching Relay Silver Contact With Steps Cap?
Engineered for relay assemblies requiring both electrical conduction and precise positioning capability, the Magnetic Latching Relay Silver Contact With Steps Cap integrates a stepped‑cap shoulder profile. This feature interfaces with relay contact bases or assembly tooling to accurately set seating position and contact height. Manufacturing can follow customer‑supplied drawings covering material grades, dimensional parameters, contact configurations, and electrical specifications. Key product attributes include silver‑alloy construction, low contact resistance, arc‑resistance performance, long‑term mechanical endurance, alongside custom options tailored to magnetic latching relay use cases.
Unique Value of Built‑In Steps‑Cap Shoulder Structure
Mechanical Stroke Limitation in Latching Relays
The integrated shoulder acts as a physical boundary inside the relay armature cavity, stopping excessive over‑travel and protecting delicate spring blades from permanent plastic deformation.
Prevention of Mis‑Assembly During Automatic Feeding
The distinct stepped geometry provides an asymmetric profile that optical sensors and vibratory bowl feeders use to verify correct orientation before high‑speed riveting.
Enhanced Thermal Path Area
Special Bimetal Silver Contact feature enlarged shoulder cross-sections that expand contact area with copper blades, reduce thermal impedance, and stabilize steady-state temperature rise.
Global Shipping
Silver Electronic Contact for Energy Meter Latching Relay adopts optimized shoulder geometry to divert high-speed closure impact forces from the bimetal bonding zone, avoiding structural stress damage.
Our customization features of Shaped Silver Alloy Contacts
Customized material adaptation:
Customized PCB Circuit Board Riveted Contact with Steps offers multiple material combinations to match customer operating conditions. Silver‑alloy and copper base selections satisfy electrical and mechanical performance for target contact applications.
Customized contact form:
Special Bimetal Silver Contact supports normally‑open, normally‑open and change‑over configurations. Contact geometry is adjusted to fit customer circuit and relay connection structures.
Customized dimensional accuracy:

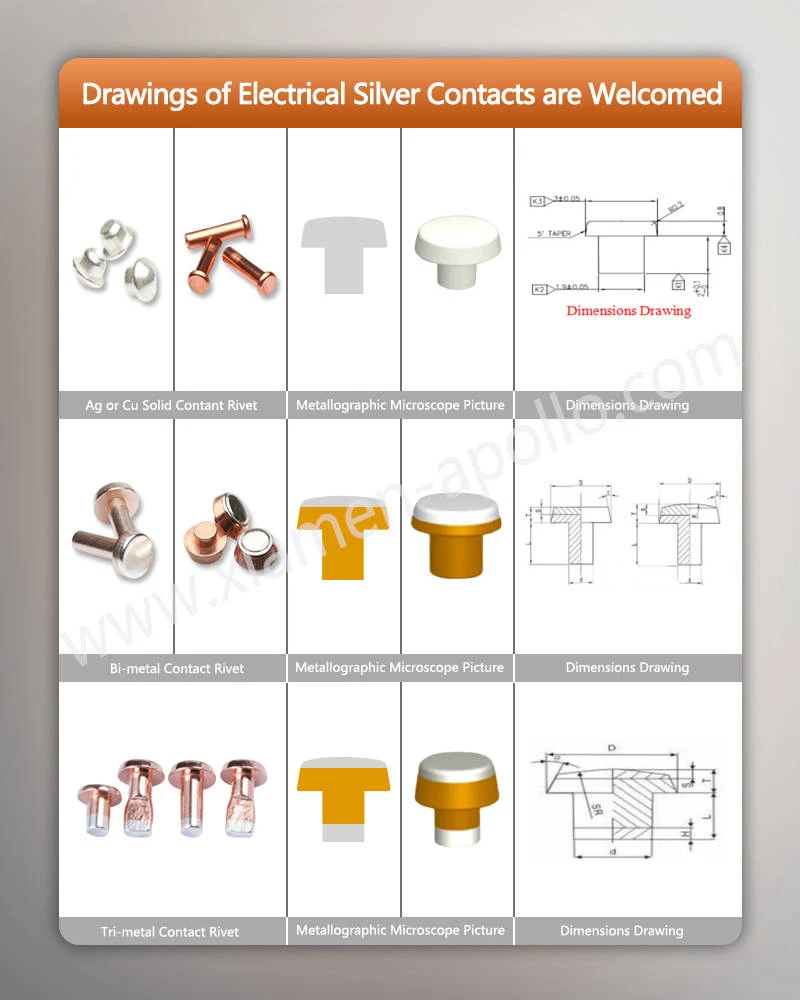

Cap contacts are produced per customer drawings. Cold heading and stamping processes control profile, shoulder dimensions, and tolerance ranges to meet mechanical assembly requirements.
Customized electrical parameters:
Button Head Solid Rivets follow project‑specific electrical specifications. Rated voltage and current are configured per application documents for stable, safe power switching within end‑equipment circuits.
Frequently Asked Questions about PCB Circuit Board Riveted Contact with Steps
Why is AgSnO₂ preferred over pure silver for Meter Relay applications?
+
-
AgSnO₂ provides superior resistance to arc erosion and contact welding under high inrush currents, significantly extending the operational lifespan of smart meter latching relays.
How do you ensure the silver crown does not separate from the copper shank?
+
-
We utilize high‑pressure solid‑phase cold heading that forces the metal grains to interlock metallurgically, achieving a shear strength that exceeds 220 MPa without brazing filler.
What is the typical lead time for custom prototype samples of Silver Electrical Contacts?
+
-
Custom sample tooling and production typically require 10 to 15 business days, including full material composition and dimensional inspection reporting.
What minimum order quantity applies for Special Bimetal Silver Contact?
+
-
Minimum order quantities start at 1,000 pieces, depending on the wire diameter and precious metal volume required for your specific application.
contact us
Send the Magnetic Latching Relay Silver Contact With Steps Cap drawing, silver material requirement, shoulder dimensions, annual or order quantity, electrical load, and assembly method before production confirmation. The manufacturing route can then be evaluated against the steps-cap geometry, critical tolerances, and inspection requirements.
