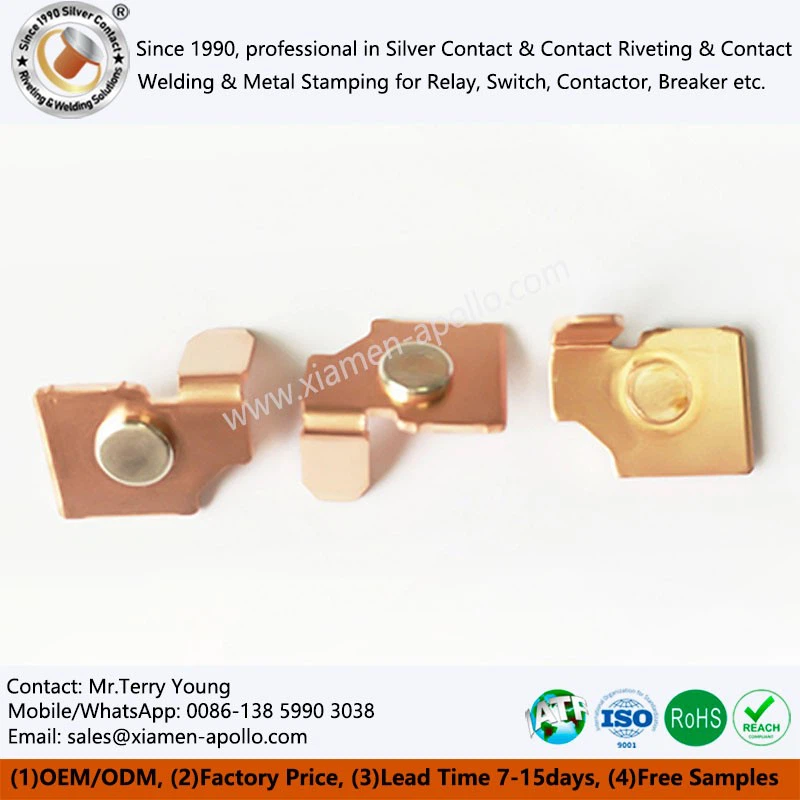

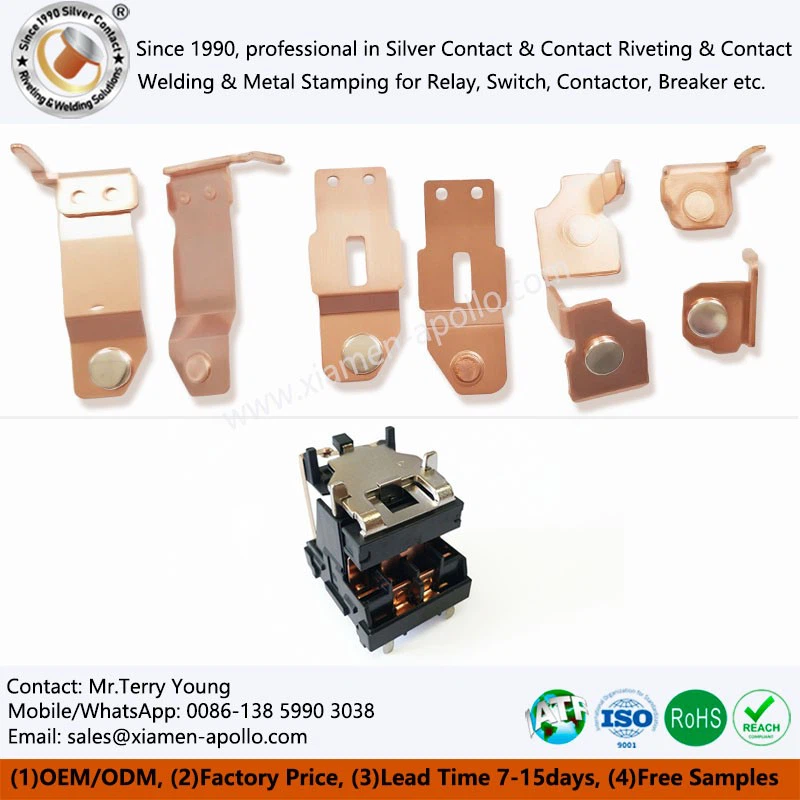

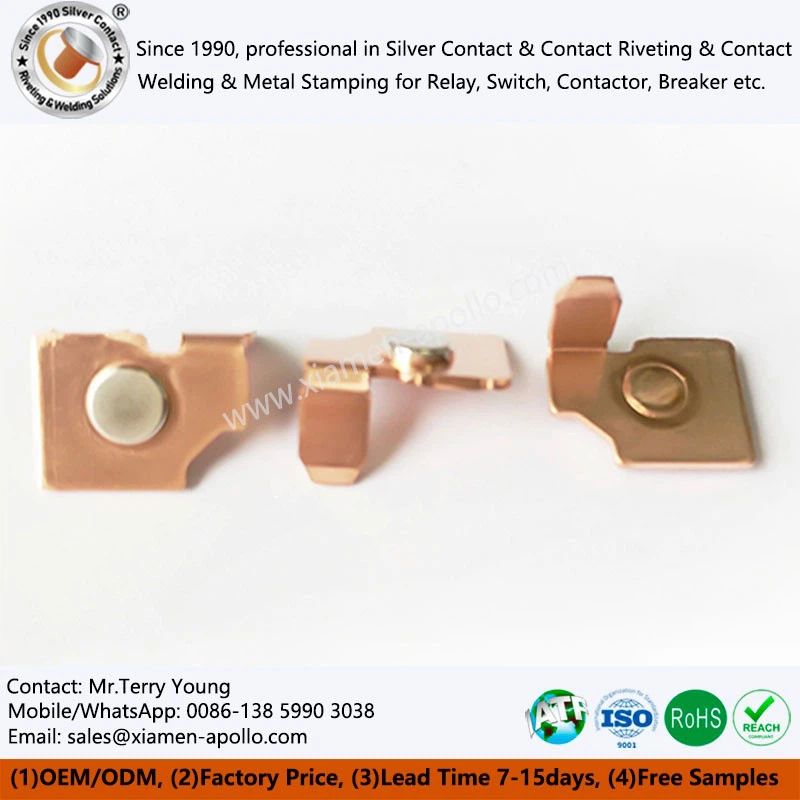

What are the Fixed Silver Contacts for Solar Power Relay
Fixed Silver Contacts for Solar Power Relay are precision-engineered assemblies comprising durable AgSnO2 alloy tips fused onto high-strength stainless steel stamped spring blades. Designed for deployment in grid-tie solar inverters and photovoltaic protection systems, these components ensure stable electrical conductivity and prevent micro-welding during high-capacity current interruptions. Operating as a direct-source manufacturing factory equipped with advanced cold heading and high-speed precision stamping lines, we deliver reliable volume production tailored to precise electrical engineering specifications.
Material & Manufacturing Control for Electric Contacts for PV Relay
Silver‑alloy selection for solar relay DC breaking
Selecting the proper contact material is vital for managing unidirectional photovoltaic current. We utilize fine-grained AgSnO2 compositions optimized through internal oxidation processes to resist thermal shock and inhibit material transfer during repetitive DC load switching.
Dimensional tolerance & surface treatment for static contacts
Maintaining exact mechanical alignment prevents misalignment stress during relay closure. Our automated progressive stamping dies control terminal flatness and hole locations within a two-hundredth of a millimeter tolerance window.
Batch quality inspection for renewable-energy relay components
Every production lot undergoes rigorous optical profiling, X-ray fluorescence (XRF) material composition verification, and destructive shear testing to guarantee mechanical integrity under demanding operating conditions.
Key Performance of Flat Silver Contacts for PV Power Relay
DC arc‑quenching performance for PV inverter relay
Photovoltaic DC circuits do not possess natural zero-crossing points, making arc extinction difficult. Our silver-tin oxide tip formulations facilitate rapid arc root movement and dispersion, minimizing contact surface degradation during high-voltage interruption.
Anti‑corrosion for outdoor & humid PV installation environment
Rooftop and ground-mount solar installations expose internal relay parts to moisture and airborne contaminants. The integrated stainless steel stamping components provide exceptional oxidation resistance without requiring heavy chemical passivation.
Thermal stability under solar system frequent on‑off cycles
Daily irradiance fluctuations force inverters through continuous thermal expansion cycles. Our robust bimetallic welding technique prevents thermal fatigue delamination between the contact tip and the spring blade substrate.
Consistent low contact resistance under PV DC load
High contact resistance induces localized Joule heating and efficiency loss. Our cold heading and precision welding processes secure uniform contact patches that maintain stable millivolt drops throughout the operational lifecycle.
Typical PV Application Scenarios of Electrical Contacts for Photovoltaic Relay
| Grid-Tie Solar Inverter Power Relay | It can be integrated into relay assemblies used for grid-connected photovoltaic inverters. The contact geometry is matched to the relay terminal structure and moving-contact path defined by the inverter relay design. |
| Off-Grid Solar System Control Relay | Off-grid solar systems may use relays for circuit connection, isolation, or power-management functions. The fixed contact is specified according to the relay's current path, mechanical arrangement, and installation requirements. |
| Solar Charge-Controller Protection Relay | A solar charge controller can use relay switching to control defined charging or protection circuits. The contact geometry must correspond with the relay's moving contact, actuator travel, terminal layout, and electrical qualification requirements. |
| Commercial and Utility-Scale PV Relay | Commercial and utility-scale photovoltaic equipment uses relay components within power conversion, protection, and control assemblies. |
Frequently Asked Questions about Electrical Contacts for Solar Panel Relay
Can these Electrical Contacts for Solar Switch maintain low resistance after thousands of switching cycles?
Yes, our controlled internal oxidation manufacturing process produces fine, uniformly distributed tin oxide particles that stabilize contact resistance below 0.5 milliohms throughout operation.
What dimensional tolerances can your high-speed stamping presses achieve?
Our precision progressive stamping tools maintain strict linear dimensions and hole center distances within a tight tolerance window of plus or minus 0.02 millimeters.
Are your manufacturing facilities certified for automotive and renewable energy supply chains?
Yes, our production lines operate strictly under IATF 16949 quality management systems, ensuring full traceability from raw metal wire to finished contact assemblies.
Do you provide material test reports and compliance documentation with shipments?
Every outgoing batch includes comprehensive material certificates covering alloy chemical composition, hardness testing data, and RoHS/REACH environmental compliance declarations.
contact us
Partner with an experienced direct factory to secure high-performance Fixed Silver Contacts for Solar Power Relay built for demanding photovoltaic applications. Submit your engineering drawings or specification sheets to our technical team today for a rapid DFM review and competitive bulk quotation.
