Products Description

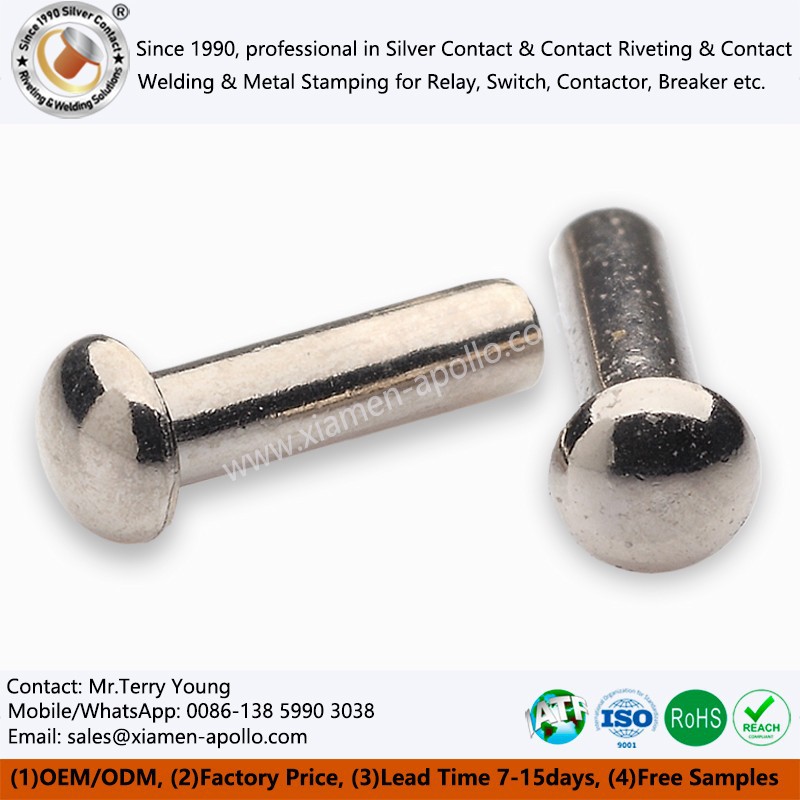

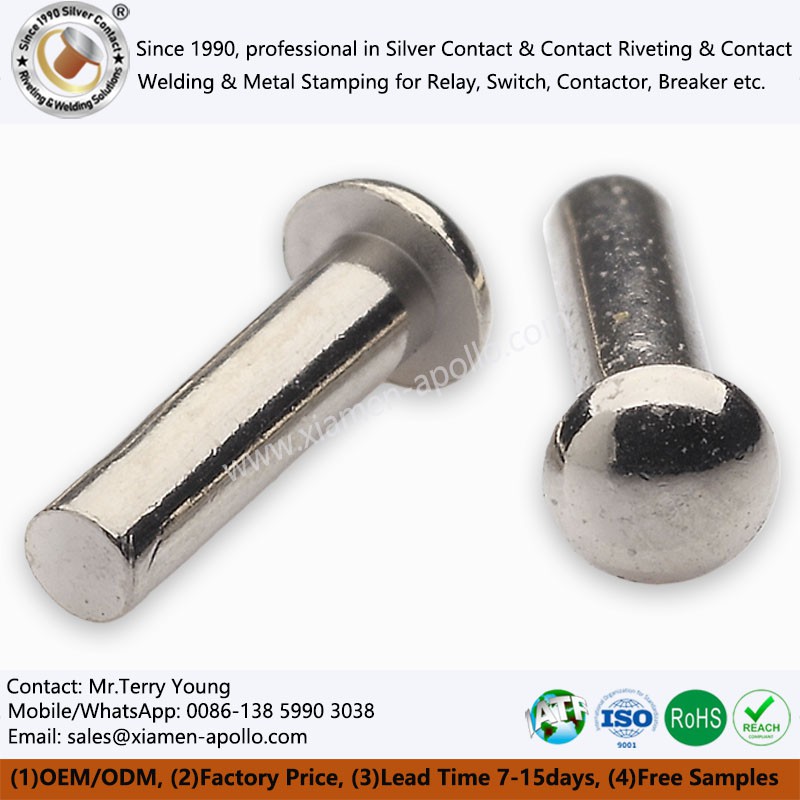

In practical applications, Small Size Nickel Plated Contacts represent the most common design solution. Copper is widely adopted due to its excellent electrical conductivity; however, it exhibits high chemical reactivity and readily reacts with oxygen and sulfides in the air to form copper oxides or sulfides. These oxides significantly increase contact resistance. By applying a nickel plating layer to the surface of these small-sized contacts, the copper substrate is effectively shielded from direct contact with the external environment, thereby maintaining the stability of the electrical connection.
Manufacturing Advantages
High-Precision Micro-Stamping and MIM Technology
Utilizing high-speed, precision progressive die stamping or Metal Injection Molding (MIM) technology, we mass-produce complex, three-dimensional miniature metal blanks with dimensional tolerances reaching ±0.01 mm for Nickel Plated Contacts.
Precision Barrel or Rack Plating Processes

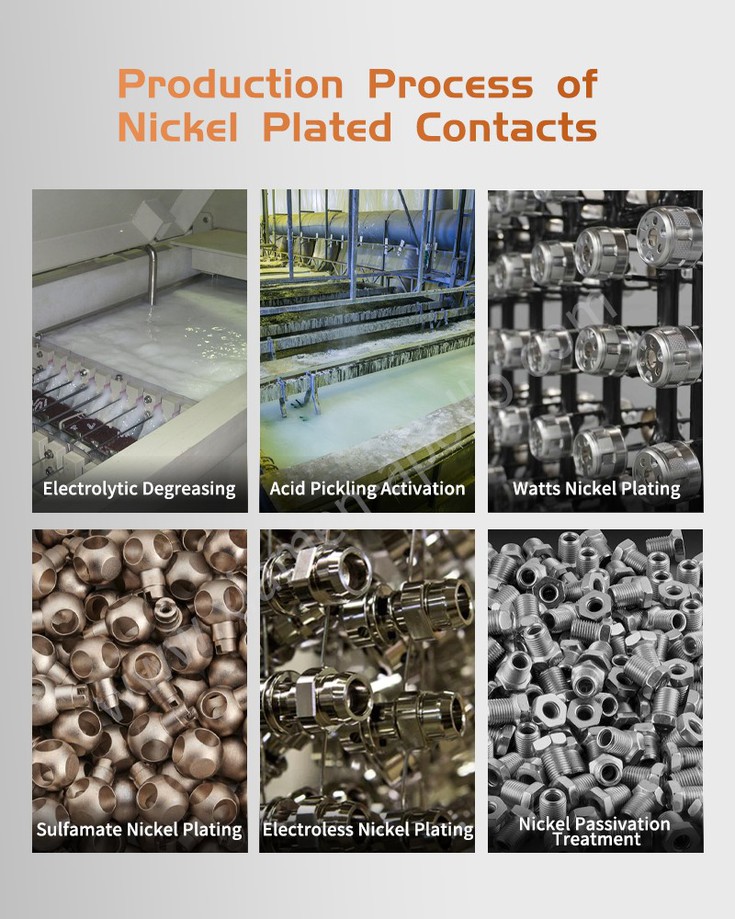

Tailored for large volumes of miniature components, we employ highly efficient barrel plating or specialized rack plating techniques. By optimizing plating bath flow, current distribution, and chemical additives, we ensure that every Nickel Coating Copper Contacts receives a uniform, dense nickel coating-even within deep holes or recessed grooves.
Fully Automated Optical Inspection and Sorting

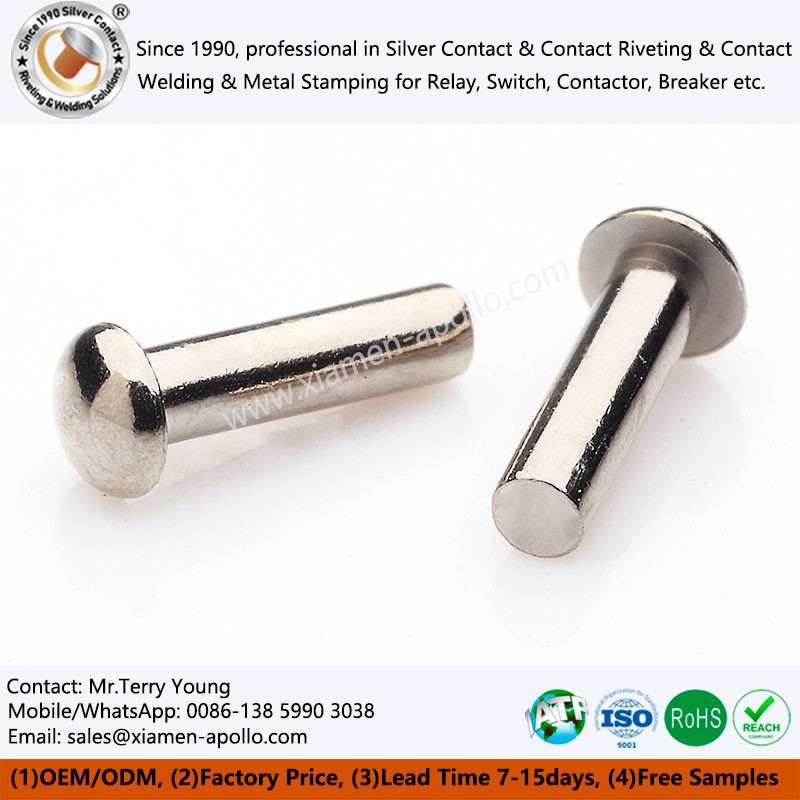

Employing high-resolution Automated Optical Inspection (AOI) systems, we conduct 100% visual and dimensional defect checks on finished Nickel Plated Contacts Contact Rivets. This process can be integrated with contact resistance testing to achieve high-speed, high-accuracy full inspection and sorting.
Product Characteristics

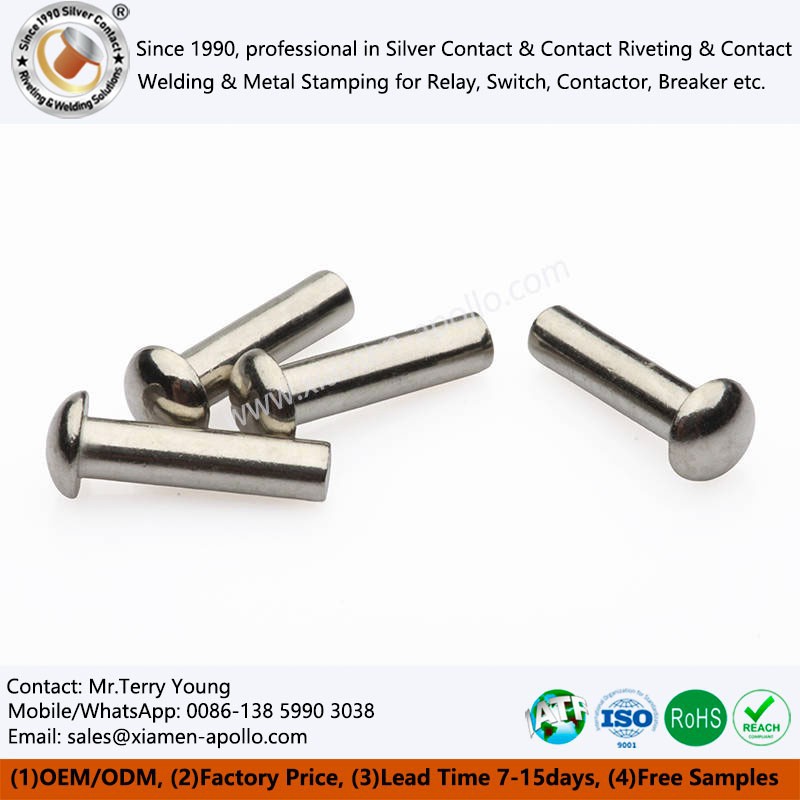

Processing Properties: Electroless Nickel Plating Rivets employs an integrated manufacturing workflow comprising single-piece copper stamping → surface pre-treatment → precision electroplating → shaping and 100% inspection. The core technical challenge lies in ensuring the uniformity and density of the nickel layer, as well as its adhesion strength to the copper substrate. With a mature process and high stability in mass production, this product is ideally suited to meet the large-scale manufacturing requirements of low-to-mid-range products.
Compliance & Standards: Nickel plating for electrical contacts complies with general standards for electrical contact components, such as IEC 60947 and GB/T 5586. The material origin is fully traceable, and test reports verifying nickel layer adhesion strength and oxidation resistance are available upon request. This product aligns with global procurement standards for low-to-mid-range electrical equipment, satisfying standard operational requirements without the need for high-end, specialized certifications.

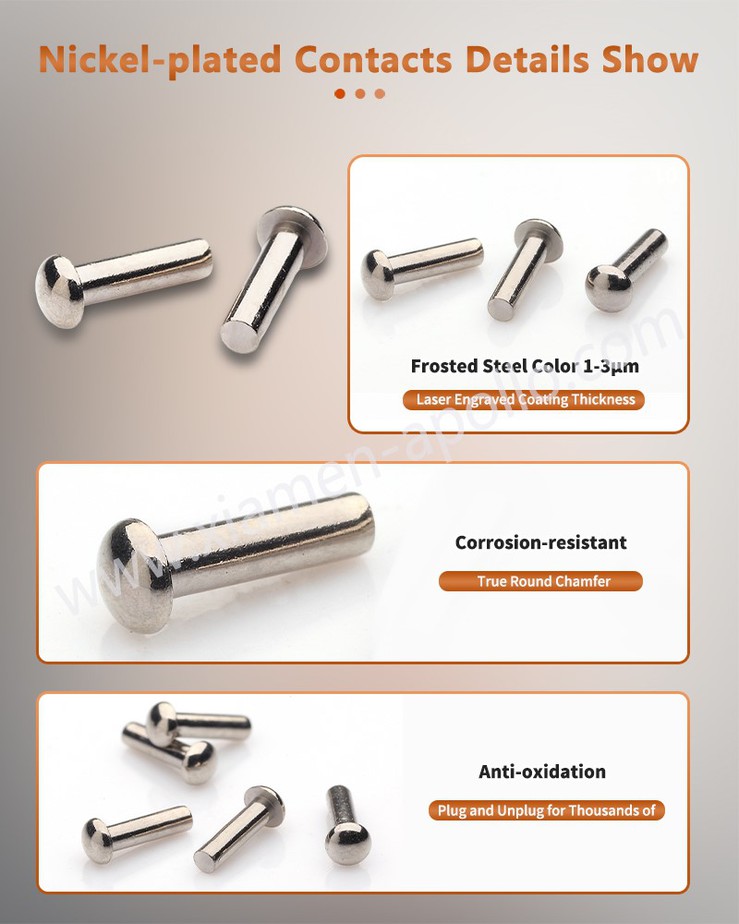

Product Advantages
Excellent Solderability

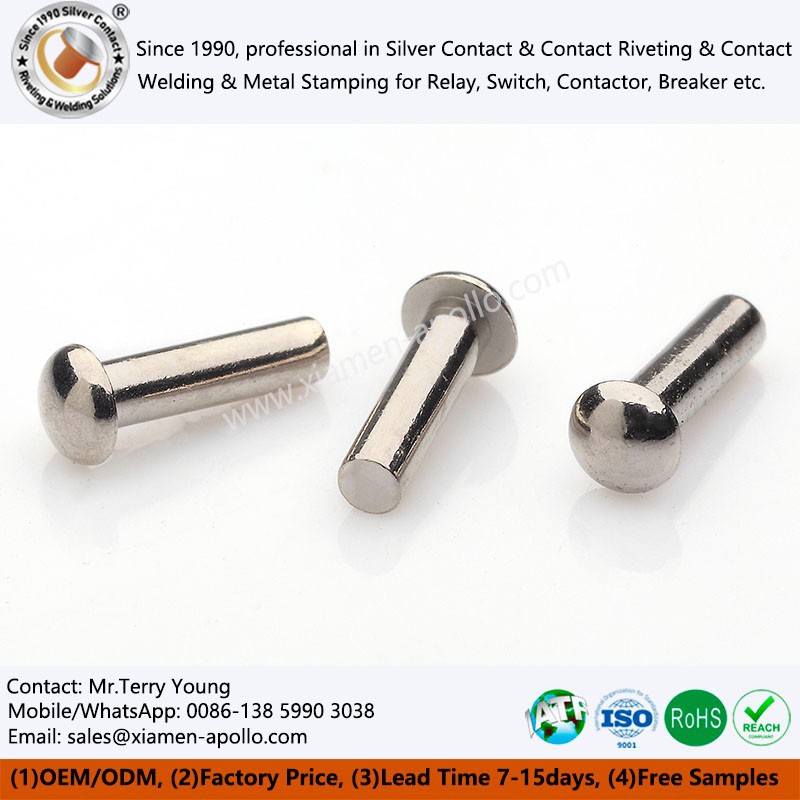

Nickel-plated surfaces can be directly soldered without the need for special pretreatment. This is highly convenient for applications requiring Nickel Coating Copper Contacts to be soldered onto circuit boards.
Corrosion Resistance
Nickel exhibits a certain level of resistance to various chemical agents-such as kitchen grease and cleaning detergents-outperforming both bare copper and silver plating. This is one of the primary reasons why Electroless Nickel Plating Rivets are widely favored in household appliances.
Environmental Friendliness
The nickel plating process is a mature technology that, in modern practice, does not involve the use of cyanide. Compared to older, more hazardous processes-such as cadmium or lead plating-nickel plating stands as an environmentally acceptable method of surface treatment for Nickel Plated Electrical Contacts.
contact us
If you require further information regarding the technical specifications, sample requests, or bulk pricing for our Small Size Nickel-Plated Contacts, please contact our engineering team for a customized solution.
