Tri-metal Electrical Contacts are high‑performance composite connection components working from ‑40℃ to +250℃. Widely adopted for relays, breakers and EV charging systems, they undergo tensile, bending, impact and fatigue validation. Our factory delivers full customization on dimensions, metal ratios and surface treatments to satisfy diverse high‑current equipment requirements.
Send Inquiry

What are the Tri-metal Electrical Contacts?

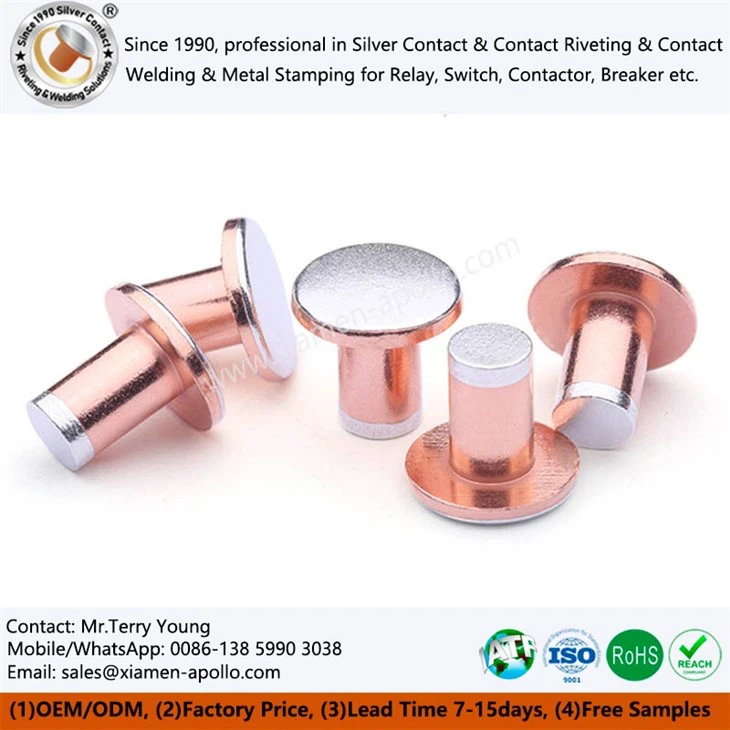

Tri-metal Electrical Contacts



Tri-metal Electrical Contacts are composite contact components used in relay, switch and circuit-breaker assemblies. If the contact interface wears, overheats or separates from its supporting structure, the resulting increase in contact resistance can cause local temperature rise, intermittent switching or equipment shutdown. The product page specifies customizable dimensions, shape and metal ratio, with mechanical testing options including tensile, bending, impact and fatigue tests. Material composition, layer sequence, and electrical acceptance limits should be confirmed against the application drawing before production.

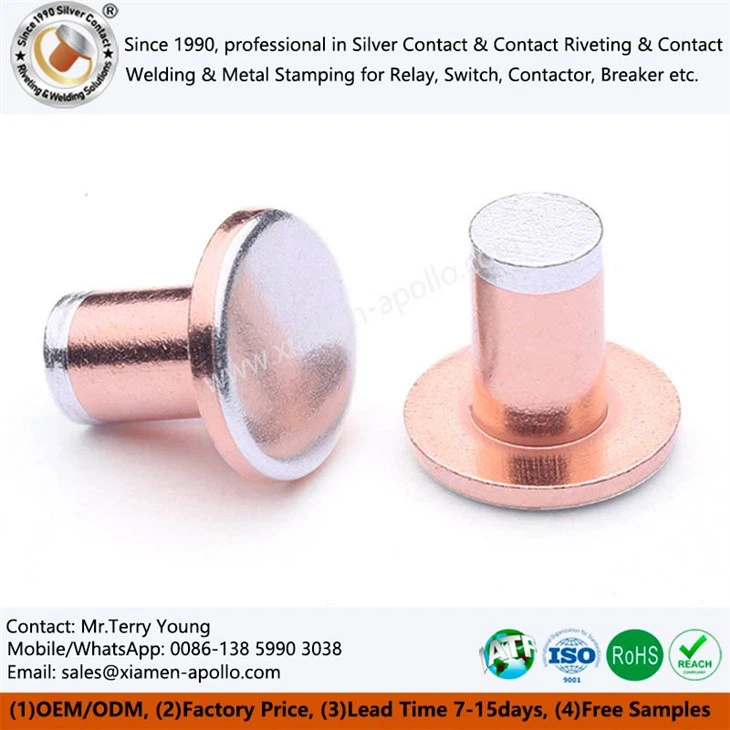

Technical Specifications & Materials Of Tri-metal Electrical Contact Rivet



Technical Parameter Specification Value
Contact Face Material AgSnO₂In₂O₃ 88/12, AgNi 10/90, AgCdO 15
Electrical Conductivity Greater than 85% IACS (Base) / 60% IACS (Face)
Bonding Shear Strength Greater than 180 MPa
Contact Face Hardness 80 HV‑130 HV (Dependent on Alloy)
Dimensional Tolerance ±0.01 mm (Thickness)



Silver Alloy Material Report for Tri-metal Electrical Contacts





Product Structure & Core Specifications of Electrical Tri-Metal Rivet



Composite Layer Architecture

The tri-metal configuration consists of a functional noble metal contact layer welded onto a highly conductive middle interlayer, anchored to a mechanical copper backing strip. This multi-layer construction prevents thermal distortion during high-current surges while optimizing material cost.




Diffusion Bonding Integrity

Our manufacturing process utilizes precision thermal-mechanical rolling and solid-phase bonding. This ensures that the interface between the silver alloy and the base copper exhibits zero micro-voids, preventing catastrophic delamination under high mechanical shock.




Contact Resistance Stability

Surface micro-roughness is maintained below Ra 0.4 micrometers. This precise surface finish minimizes initial contact resistance, keeping operational temperature rise well within international safety limits during continuous duty cycles.




Microstructural Homogeneity

Pre-sintered silver-metal oxide particles are uniformly dispersed throughout the contact matrix. This microstructure resists material migration and prevents arc-induced cratering during repetitive make-and-break operations.



Tri-metal Electrical Contacts and Their Applications








Customization Capabilities of Trimetal Round Copper Electrical Contact Rivet

Bespoke Geometric Profiles

We fabricate custom contact shapes including flat buttons, domed heads, projection-weld backs, and profiled strip configurations tailored to specific stamping dies.

Alloy Composition Tuning

Clients can specify custom silver-metal oxide ratios, including variations of tin oxide, copper oxide, or nickel content, to match specific switching load categories.

Interlayer Optimization

Intermediate barrier layers can be adjusted in thickness to suppress zinc migration or prevent thermal diffusion in high-temperature operating conditions.

Flexible Tooling Development

Rapid prototyping and in-house progressive die design enable short lead times for custom samples before committing to high-volume mass production runs.

We are professional in manufacturing Tri-metal Electrical Contacts







contact us

Partner with our engineering team today to secure reliable, factory-direct wholesale pricing on custom Tri-metal Electrical Contacts built to your exact technical specifications.
