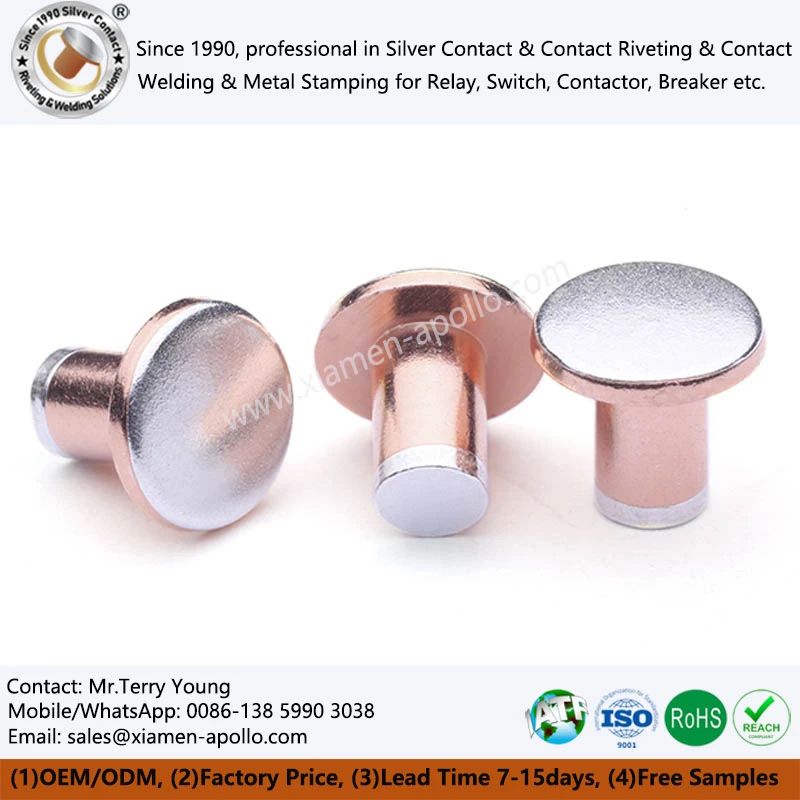

What are the Trimetal Silver Composite Contact Rivets for Switch?
Trimetal Silver Composite Contact Rivets for Switches are critical components used in low-voltage switching devices, automotive relays, and industrial control circuit breakers. It provides enhanced electrical contact reliability and extended operational service life under frequent switching cycles. The factory manufactures customized trimetal silver contact rivets using an advanced multi-layer cold heading and cladding process, ensuring reliable metallurgical bonding between the precious metal contact face, the thermal-conductive interlayer, and the base metal.
Technical Specifications & Materials of Trimetal Silver Composite Contact Rivets For Switch
| Electrical Conductivity (%IACS) | Facing Layer: ≥ 78%, Base Layer: ≥ 98% |
| Bonding / Shear Strength | ≥ 220 MPa (Interface Shear Test) |
| Hardness (HV) | Facing: HV 95 – 120, Base: HV 70 – 90 |
| Contact Resistance | < 0.5 mΩ (at initial state) |
Manufacturing Process of Trimetal Silver Composite Contact Rivets For Switch
Precision Multi-Station Cold Heading: Fabricated using multi-station progressive cold heading machines, the Ag Silver Alloy Trimetal Contacts achieve high dimensional consistency and uniform head-to-shank concentricity. This net-shape forming method maximizes material utilization while maintaining tight tolerance control for automated assembly lines.
Metallurgical Bonding Integrity: Pure Trimetal AgSnO2 Electrical Silver Contact features reliable interlayer connection: the bonding interface between the silver alloy layer and the substrate undergoes strict shear strength testing. This eliminates delamination risks during high-frequency mechanical impacts and continuous thermal cycling inside industrial contactors.
Frequently Asked Questions about Trimetal Silver Composite Contact Rivets For Switch
What is the advantage of Trimetal Silver Composite Contact Rivets compared with single metal contacts?
+
-
These rivets combine different metals within one structure to balance conductivity, arc resistance, and mechanical strength. This design reduces limitations caused by using only one material in repeated switching applications.
What materials are commonly used in Trimetal Silver Composite Electrical Contacts for Relay?
+
-
The contacts for relay typically use silver-based contact alloys combined with supporting metal layers selected for conductivity, wear resistance, and bonding performance. Final material selection depends on switching load, operating environment, and customer reliability requirements.
How does a Trimetal Silver Contact Point improve relay switching reliability?
+
-
A contact point maintains a stable contact interface by using a silver functional layer for electrical conduction and supporting materials for mechanical durability, helping reduce contact degradation during repeated relay operations.
What parameters can be customized for OEM orders of Trimetal Electrical Contact Rivets?
+
-
OEM clients can specify the silver alloy grade, facing layer thickness, total head diameter, shank dimensions, and base metal hardness to match exact mechanical actuation force and electrical load requirements.
How do manufacturers control quality consistency for Trimetal Silver Contact Rivets?
+
-
Manufacturers control quality through material verification, composite bonding inspection, dimensional measurement, and process monitoring during forming. These controls ensure stable contact layer thickness, rivet geometry accuracy, and batch consistency required for high-volume relay and switch production.
contact us
Secure your electrical supply chain with direct-factory engineering support for Trimetal Silver Composite Contact Rivets for Switch. Contact our technical team today to request custom material samples, review dimensional tolerances, or discuss volume pricing for your upcoming relay and switch production schedules.
