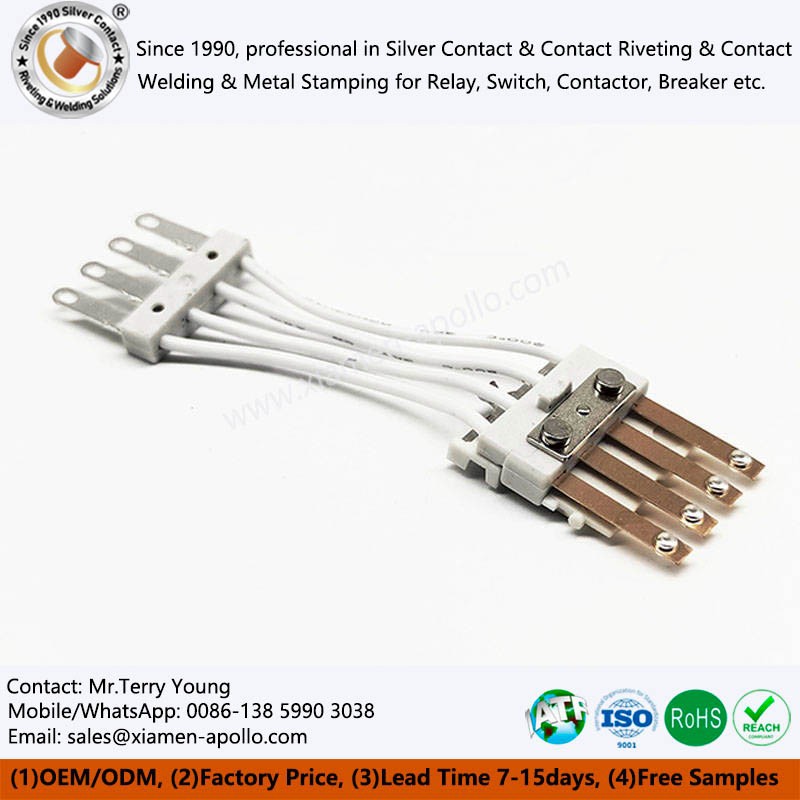

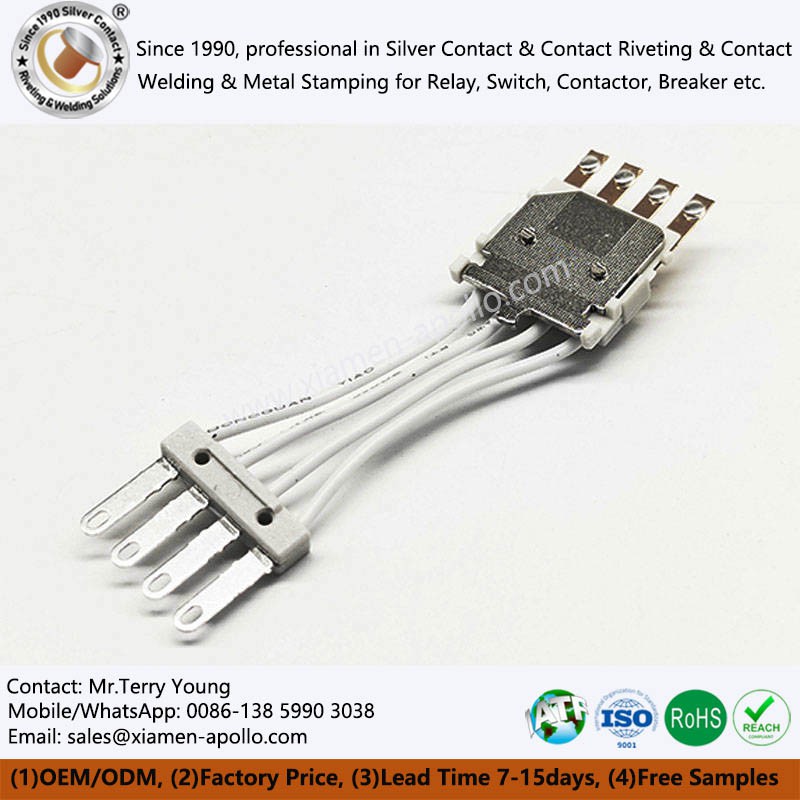

New Energy Vehicle Relay Armature

The New Energy Vehicle Relay Armature is a dedicated armature assembly for new energy vehicle relays. It integrates precision stamping, flexible wiring harness connection, and insulated encapsulation, adapting to the electromagnetic drive requirements under high-voltage, high-current conditions. It is a key metal functional component ensuring stable switching and vibration resistance of EV high-voltage relays. We can supply a complete set of metal relay components in a one-stop shop, supporting customized development on demand.

Send Inquiry

Products Description

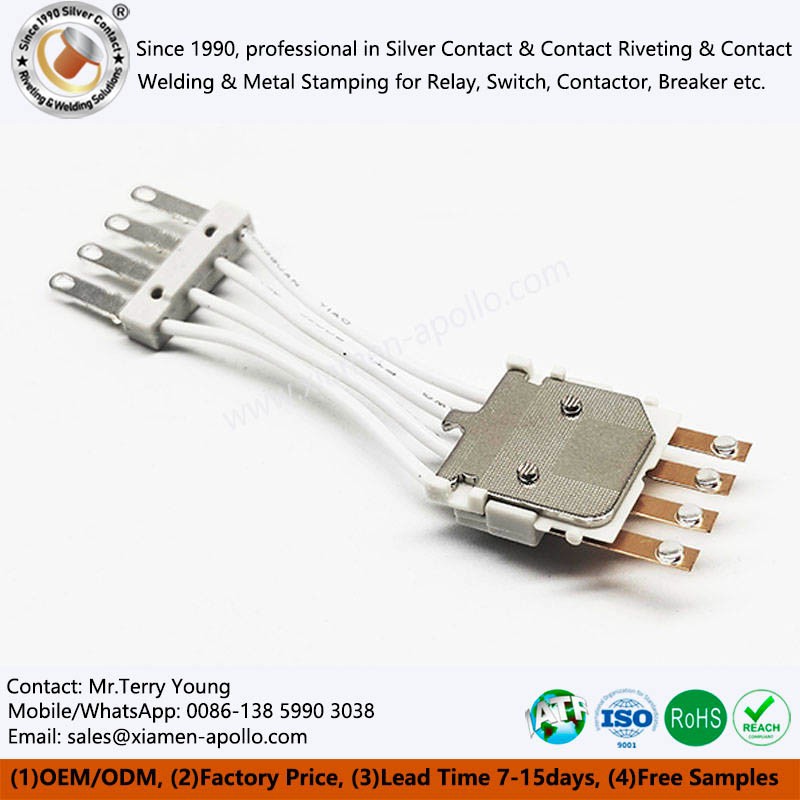

New energy vehicle high-voltage relays need to achieve millisecond-level response under extreme conditions of hundreds of volts DC voltage and hundreds of amperes current. The internal New Energy Vehicle Relay Armature directly determines the relay's pull-in speed, release characteristics, and long-term reliability. This product is specifically designed for high-voltage platforms of 800V and below, using high-purity soft magnetic materials and precision stamping processes to ensure stable magnetic performance and mechanical lifespan in the wide-temperature range, high-vibration, and high-humidity automotive environment.

Material Properties

High permeability

Effectively reduces relay coil power consumption and improves electromagnetic conversion efficiency.

Low coercivity

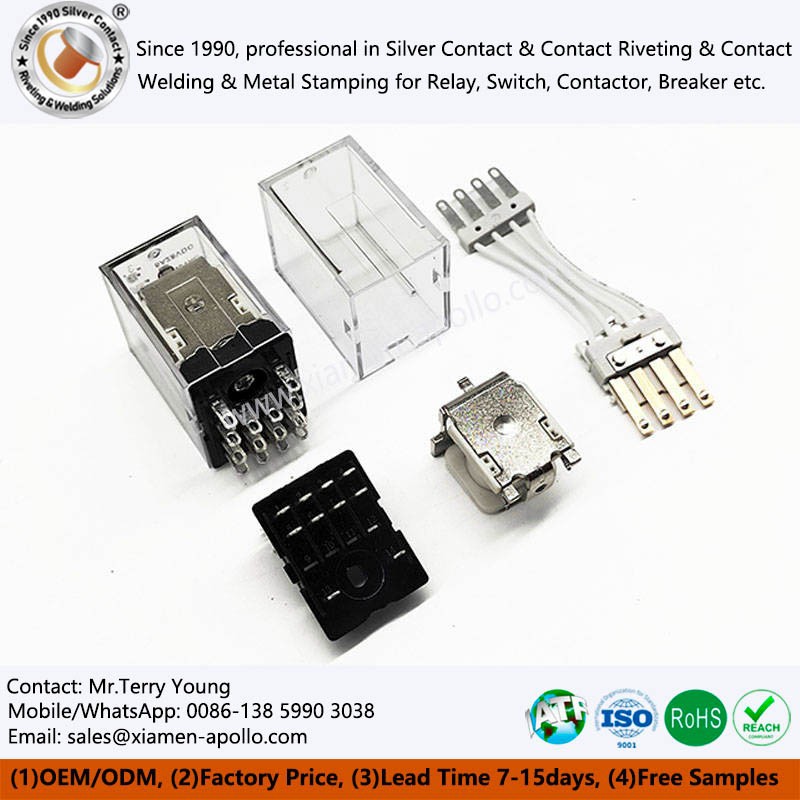

Ensures rapid release of the EV Relay Magnetic Armature after power failure, preventing adhesion.

High Curie Temperature

Pure Iron Armatures for EV Relays can withstand high-temperature environments, such as engine compartments and battery packs, in new energy vehicles.

Mechanical Strength

Guarantees the structural stability of the Soft Magnetic Armature for EV Relay under vibration.

Pure Iron Coil for New Energy Vehicle Relay Armature

Comparison Advantages

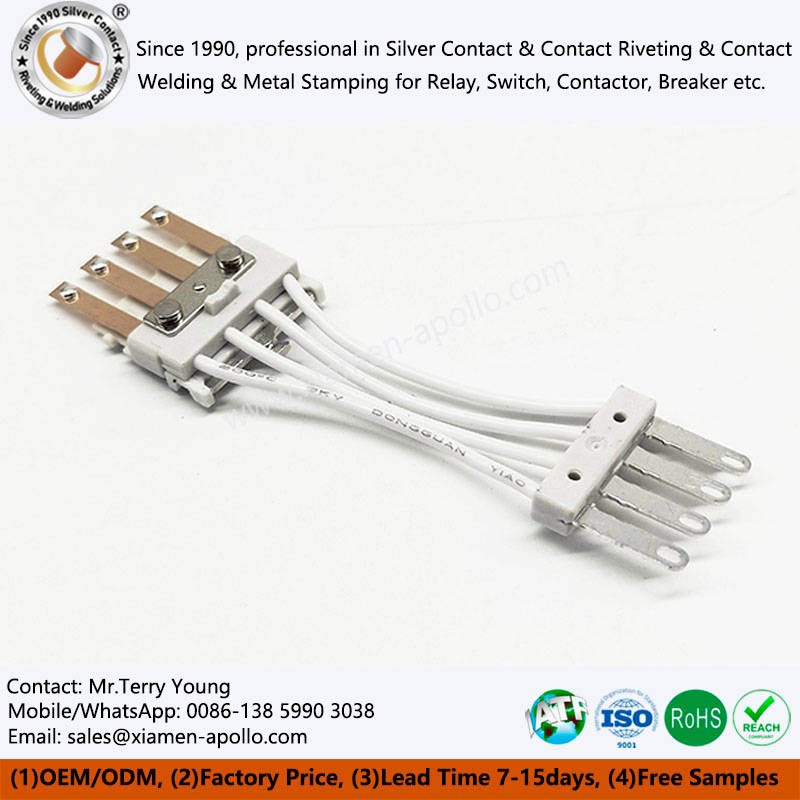

Compared to ordinary relay armatures, Armature Metal Parts of Relays use higher purity electrical pure iron, resulting in lower magnetic loss and faster response; higher stamping precision and armature action consistency superior to industry standards; integrated wiring harness components reduce secondary processing steps for customers, lowering assembly costs; we can provide a complete set of relay metal parts, making one-stop procurement more efficient, shortening the customized development cycle, and adapting to customers' differentiated product iteration needs.

Electrician Pure Iron Cold Rolled Steel for Relay Core, Yoke, and New Energy Vehicle Relay Armature

Frequently Asked Questions

Can this Armature for Electromagnetic Relay be compatible with customers' existing relay models?

We support full-dimensional customization. Armature shape, terminals, and wiring harness specifications can be customized according to the customer's relay structure, electrical parameters, and assembly space.

Do you support third-party factory audits?

Fully supported. We welcome customers or third-party organizations to conduct factory audits and random inspections of Armature Metal Parts of Relays.

Besides Armature for Electromagnetic Relay, what other relay metal parts can you supply?

We can produce all the metal parts required for relays, including yokes, springs, contact supports, magnet frames, stationary contacts, moving contacts, etc., enabling one-stop procurement of relay metal components.

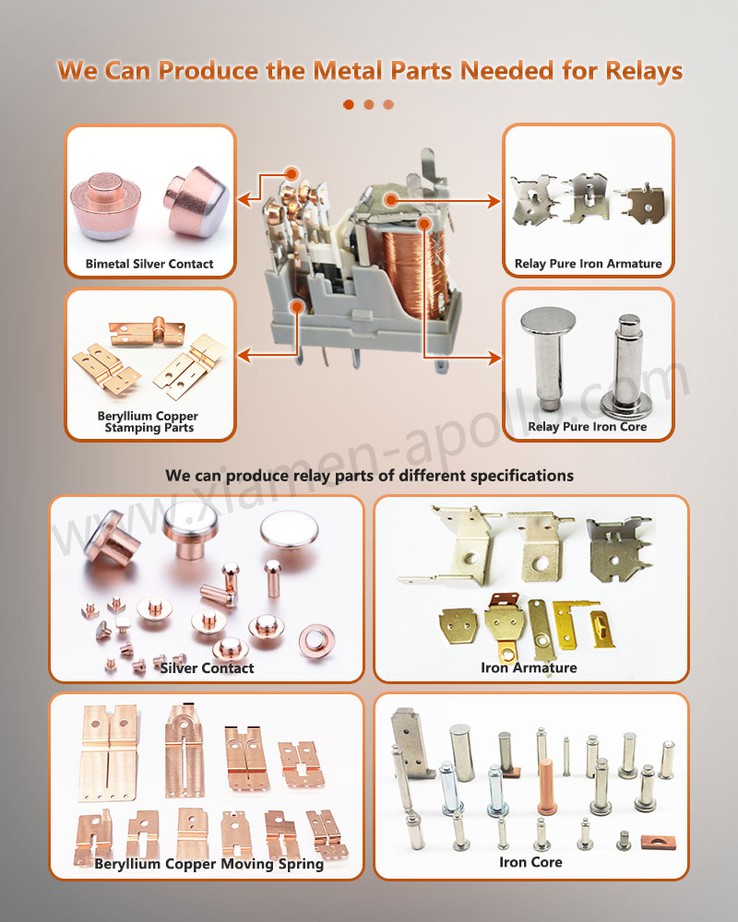

We Can Produce the Metal Parts Needed for Relays like New Energy Vehicle Relay Armature
