These Industrial Gold Plated Contacts feature 1‑3 μm, ≥99.99% high‑purity gold deposited on composite substrates. The Gold Plated Contact Points deliver stable, low contact resistance and corrosion resistance. Built for high‑reliability relays, they support aerospace, industrial control, and precision test equipment with consistent electrical performance.
Send Inquiry

What are Industrial Gold Plated Contacts?



Industrial Gold Plated Contacts

Industrial Gold Plated Contacts are specified when a relay, switch, control module, or precision electrical interface requires a chemically stable contact surface with controlled dimensions. The product image shows the finished gold-plated contact geometry, while production covers substrate preparation, gold electroplating, dimensional inspection, and batch quality control. The standard product description specifies 99.99% gold purity, a 1–3 μm coating range, dimensional control to ±0.03 mm, and gold-layer thickness deviation within ≤±0.1 μm.

Gold Plating Structure & Engineering Advantages of Gold-plated Rivets

99.99% Gold Functional Surface

The gold layer provides a chemically stable working surface for electrical contacts. Unlike exposed copper substrates, the plated contact surface is designed to limit direct exposure of the base metal to oxygen and moisture.

Controlled 1–3 μm Plating Thickness

A 1–3 μm gold coating provides a defined material layer rather than relying on an unspecified decorative finish.

Stable Surface Under Industrial Environments

Gold is used on electrical contact surfaces because it resists oxidation and chemical surface degradation.

Substrate-Based Mechanical Design

Gold provides the functional contact surface, while the underlying conductive substrate determines much of the component's mechanical strength, conductivity, forming behavior, and dimensional stability.

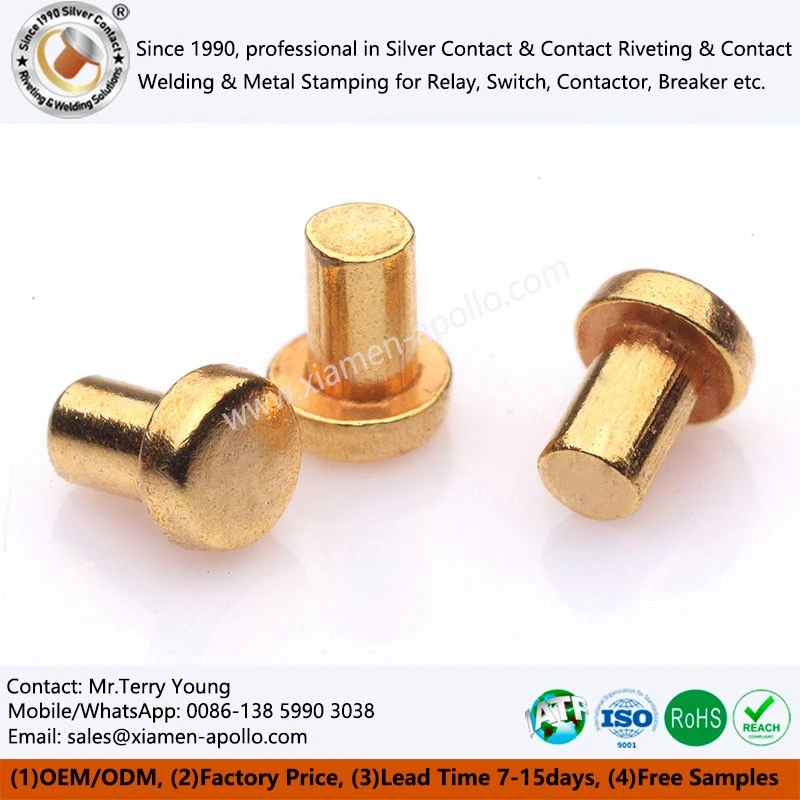

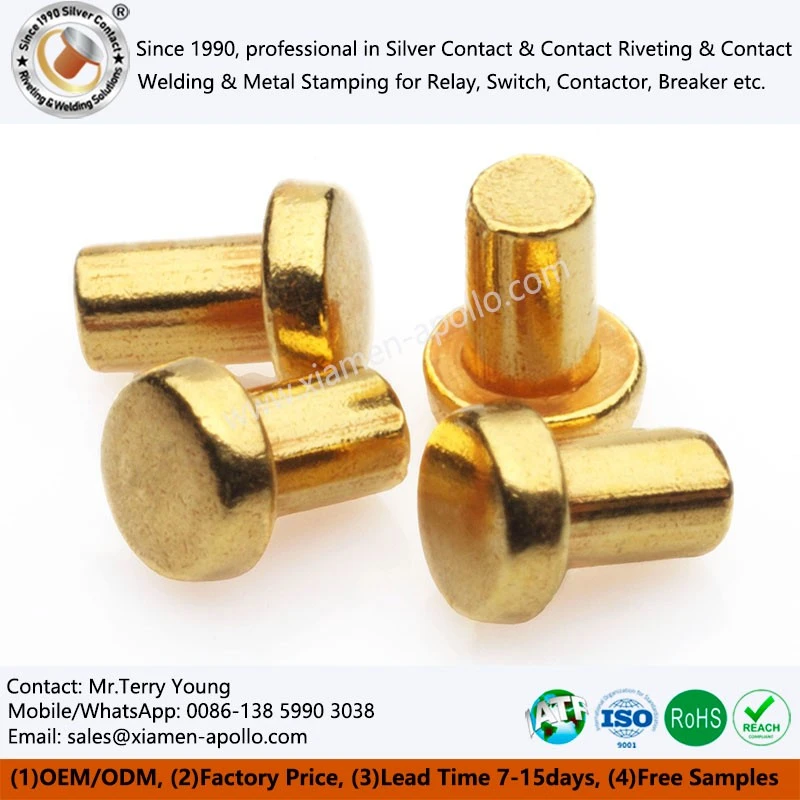

Industrial Gold Plated Contacts Details Show



Application Areas and Irreplaceable Value Of Gold-Plated Relay Contacts




Aerospace and Defense Electronics

Fitted into relays and connectors for flight‑control hardware, radar units, and communication equipment. Gold plating delivers stable performance under high‑low temperature cycling, salt‑spray, and mould‑exposure conditions.




High‑Reliability Industrial Automation and Process Control

These contacts serve safety relays and signal‑acquisition modules within nuclear‑power facilities, petrochemical sites, and high‑speed rail systems.




Precision Test and Measurement Equipment

Deployed on internal switches and connectors for digital multimeters, semiconductor test instruments, and medical imaging devices. Low-contact thermoelectric EMF and steady contact resistance support accurate microvolt‑range signal measurement.




Implantable Medical Devices and High‑Value Instruments

They provide electrical interconnections for pacemakers, neurostimulators, and other life‑support hardware. Gold plating offers biocompatibility and long‑term operational stability for implant‑grade assembly designs.

Application of Industrial Gold Plated Contacts



Frequently Asked Questions about Gold Coating Electrical Contacts



What is the primary function of the intermediate nickel layer?

+

-

The nickel underplate acts as a diffusion barrier that stops copper atoms from migrating into the gold layer, while also providing a hard support base that prevents the soft gold surface from collapsing under mechanical contact pressure.

What is the typical lead time for custom prototype Gold Coating Electrical Contacts samples?

+

-

Tooling fabrication and sample production for custom‑designed contact geometries typically require 10 to 15 working days, depending on geometric complexity and material availability.

How does gold plating prevent micro‑arcing in low‑level circuits?

+

-

Gold does not form insulating oxides. Even under low‑force, dry‑circuit conditions where electrical breakdown voltage is absent, metal‑to‑metal contact remains unhindered by surface films.

What packaging methods are used to prevent transit damage?

+

-

Components are packed in anti‑static thermoformed carrier pockets, vacuum‑sealed in moisture‑barrier bags, and boxed with desiccant to prevent oxidation during international maritime and air transit.

Do you provide complete material test reports with shipments?

+

-

Every production lot includes a comprehensive Material Test Report (MTR) detailing chemical composition, gold layer thickness via XRF, and mechanical hardness test results.

Industrial Gold Plated Contacts Packaging Process





contact us



Secure your supply chain with direct factory manufacturing partners for Industrial Gold Plated Contacts. Submit your technical drawings or specifications today to receive a comprehensive engineering review and competitive wholesale quotation within 24 hours.
