The Silver Tipped Contact is a composite electrical contact component that combines a silver-based contact material with a conductive base terminal through brazing, riveting, or welding processes. Its electrical performance depends on contact material composition, bonding interface quality, contact resistance stability, arc erosion resistance, and dimensional consistency during high-frequency switching cycles.
For relays, circuit breakers, contactors, and EV high-voltage DC switching systems, Contact Bridge provides a practical solution for reducing electrical losses and improving switching reliability. The selection of silver alloy grade, bonding method, and manufacturing tolerance directly affects the service life and safety performance of the final electrical assembly.
Material Selection and Electrical Performance of Silver Joint Contacts
Silver has the highest electrical conductivity among commonly used metals, making it an important material for electrical contact applications. However, pure silver has limited resistance to arc erosion and welding under high-current switching conditions. Therefore, Silver Joint Contacts usually adopt silver alloy materials to balance conductivity, hardness, arc resistance, and mechanical durability.
Common Brazed Silver Contact materials include AgNi, AgSnO₂, AgCdO alternatives, and other silver composite alloys. Different alloy systems are selected according to switching load, voltage level, operating frequency, and environmental requirements.
For example:
- AgSnO₂ contacts are widely used in switching applications requiring improved resistance against arc erosion and material transfer.
- AgNi contacts provide stable electrical conductivity with good resistance to welding under medium-load switching conditions.
- Silver composite materials can optimize contact performance by combining the conductivity of silver with the mechanical properties of alloy elements.
The bonding interface between the Electrical Contact Tips and the base material is another key factor affecting reliability. Copper alloys are commonly used as the supporting material because of their high electrical conductivity and good thermal conductivity. In applications requiring higher mechanical strength, brass, pure copper, or specially selected conductive alloys may be used depending on structural requirements.
A stable Silver Bonded Contact Component requires controlled contact resistance throughout the product lifetime. Excessive interface resistance can generate additional heat during current flow, accelerating oxidation, thermal aging, and contact failure.
Manufacturing Process Control for Reliable Composite Welding Contact Production
The manufacturing process of Composite Welding Contact involves multiple precision steps, including silver alloy preparation, contact tip forming, base material stamping, bonding, surface treatment, and dimensional inspection.
Brazing and Welding Technology
Brazing is one of the commonly used methods for joining Silver Finish Metal Buttons with conductive substrates. During brazing, filler material forms a metallurgical bond between the silver contact layer and the base terminal. Proper temperature control and surface preparation are required to avoid insufficient bonding strength, voids, and oxidation defects.
For high-reliability applications, welding technologies such as resistance welding, laser welding, and projection welding may also be applied. These processes provide controlled heat input and localized bonding, which helps reduce deformation of Brazed Silver Contact.
Before bonding, surface treatment is required to remove oxide layers and contamination from contact surfaces. Cleaning processes such as degreasing and plasma treatment can improve surface wettability and bonding consistency.
Precision Stamping and Dimensional Stability
The base part of Electrical Contact Tips is typically manufactured through precision stamping processes. Progressive stamping dies enable continuous production of complex terminal geometries while maintaining repeatable dimensions.
Critical parameters include:
- Contact tip position accuracy
- Terminal flatness
- Burr control
- Bonding surface consistency
- Overall dimensional tolerance
For relay and switch components, dimensional deviation can directly influence Electrical Contact Buttons pressure, contact alignment, and electrical performance. Therefore, incoming material inspection, mold maintenance, and automated dimensional measurement are important parts of production quality control.
Consult Our Electrical Engineers Today
Applications and Future Development Trends of Silver Contact Disc

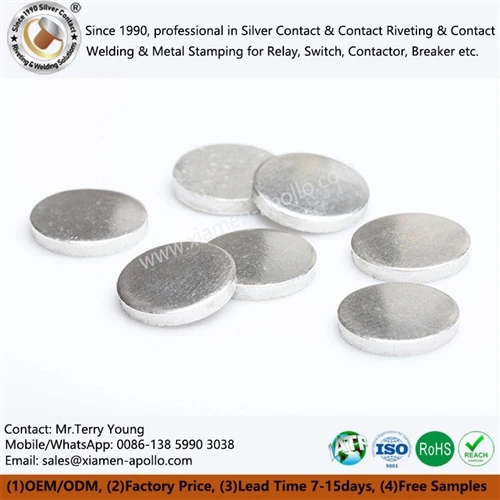

Silver Contact Disc is widely applied in electromagnetic relays, miniature relays, AC contactors, circuit breakers, automotive electrical systems, and EV high-voltage DC contactors.
In automotive and new energy applications, electrical switching components face higher requirements due to increased voltage and current levels. EV charging systems, battery management systems, and high-voltage distribution units require contact materials with stable arc resistance and long-term electrical reliability.
Future development of Contact Bridge technology focuses on:
- Optimizing silver alloy compositions for higher switching durability
- Improving bonding strength between silver contact tips and substrates
- Reducing contact resistance variation during repeated switching cycles
- Developing lead-free and environmentally compliant contact materials
- Applying automated inspection systems for production consistency
For OEM and ODM electrical manufacturers, selecting a Silver Joint Contacts supplier requires evaluation of material traceability, manufacturing capability, process control, and quality management systems. Consistent production performance is achieved through the combination of qualified raw materials, precision tooling, controlled bonding processes, and reliable inspection methods.
contact us
When sourcing Silver Tipped Contact for relays, switches, circuit breakers, or EV high-voltage applications, engineering validation should focus on contact material compatibility, bonding reliability, switching environment, and lifetime performance requirements. Contact a precision electrical component manufacturer with in-house capabilities covering silver contact processing, metal stamping, welding, mold manufacturing, and inspection systems to reduce supply risks and accelerate product development.
