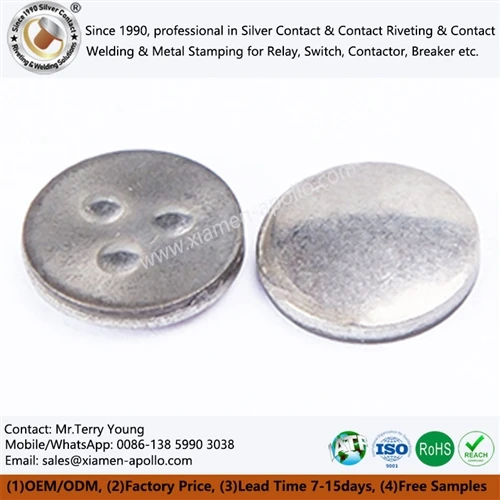

Weldable Silver Contacts are silver or silver-alloy contact elements engineered to be joined to conductive carriers through controlled welding processes. Their engineering value is not determined by silver content alone, but by the interaction between contact material, carrier material, contact geometry, welding current, electrode force, weld time, and the required electrical and mechanical performance of the finished assembly.
For relay, switch, circuit breaker, and EV/HVDC contactor manufacturers, the selection of Silver Contact Tips must therefore be evaluated as a complete contact-and-carrier system rather than as an isolated metal component. The welding process must create a mechanically stable joint while preserving the functional contact surface and maintaining consistent electrical performance during repeated switching.
Where Silver Contact Buttons Are Used in Precision Electrical Assemblies
Relay Moving Contacts
Relay moving contacts are among the most typical applications for Electrical Contact Tips. The contact material is joined to a conductive spring or carrier, while the finished assembly must withstand repeated make-and-break cycles.
The engineering challenge is concentrated around three interfaces:
- Contact material and carrier compatibility
- Welded joint mechanical strength
- Electrical stability at the contact surface
During resistance welding, electrical current is concentrated through the joining area while electrode force maintains physical contact between the components. The resulting localized heat must be sufficient to establish the required joint without producing excessive deformation of the Round Silver Contact head, carrier, or spring geometry.
Low-Voltage Switches and Circuit Breakers
Switches and low-voltage circuit breakers impose different electrical loading conditions from miniature signal relays. Circular Silver Contact
may experience higher current, greater electrical arcing, and increased thermal loading during operation.
Silver-based contact materials are widely selected for electrical switching because silver provides high electrical conductivity. However, conductivity is only one parameter in contact selection. Depending on the switching duty, manufacturers may evaluate silver alloys according to resistance to welding, arc erosion, material transfer, hardness, and resistance to contact degradation.
EV and HVDC Contactor Contact Assemblies
The growth of electric vehicles and high-voltage DC switching equipment has increased the demand for Composite Welding Contact capable of handling controlled electrical connection and interruption.
In EV/HVDC contactors, contact materials operate under electrical and thermal conditions that differ from conventional low-voltage relay applications. The contact system must be evaluated together with the conductive carrier, magnetic actuator, housing, and thermal path.
Material and Welding Parameters Determine Contact Reliability
The performance of Electrical Contact Tips depends on more than the nominal silver material. Contact alloy selection should correspond to the electrical load, switching frequency, arc conditions, mechanical force, and expected service environment.
Different silver-based contact materials can provide different combinations of:
- Electrical conductivity
- Hardness
- Arc erosion resistance
- Resistance to contact welding
- Thermal conductivity
- Resistance to material transfer
- Mechanical wear resistance
The carrier is equally important. Copper and copper-alloy carriers are commonly considered where high electrical conductivity is required, while other carrier materials may be selected according to spring properties, mechanical strength, magnetic characteristics, or Electrical Contact Buttons requirements.
contact us
For OEM programs requiring Weldable Silver Contacts, the manufacturing process can incorporate precision stamping, cold heading, contact forming, resistance welding, laser welding, CNC machining, plating, automated assembly, and dimensional and electrical inspection according to the component design. Production support can cover prototype development, tooling, process validation, batch manufacturing, and quality documentation.
If your current Silver Contact Disc is experiencing weld inconsistency, contact-resistance variation, carrier deformation, contact misalignment, or unstable production yield, submit the contact drawing, carrier material, dimensions, required contact material, and welding requirements for an engineering review. A production-oriented evaluation can then be used to determine the appropriate contact construction, welding process, tooling configuration, and inspection points before volume production.
