A Pure Iron Magnetic Core provides the low-reluctance magnetic path required to convert coil energy into mechanical actuator force. Its magnetic permeability, residual magnetism, dimensional accuracy, pole-face geometry and air-gap control directly influence pull-in voltage, release voltage, response stability and contact reliability.
For relay engineers, the Precision Relay Core is not simply a machined or stamped metal component. It is a functional magnetic-circuit element whose material condition and geometry must be controlled together with the armature, yoke and working air gap.

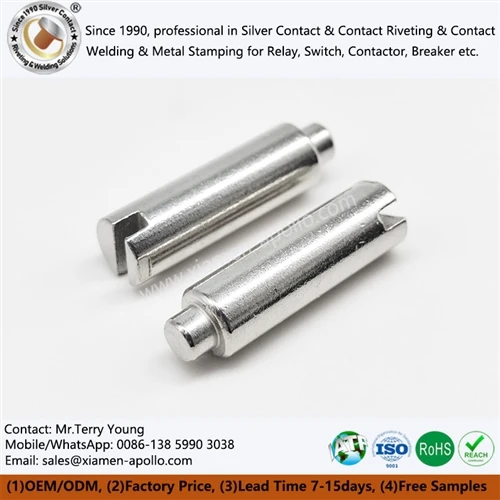

Why DT4C Pure Iron Is Used for Relay Magnetic Core?
As raw material for the Electromagnetic Relay Core, DT4C belongs to the category of industrial pure iron materials used for electromagnetic applications where high magnetic permeability and low coercivity are required.
Its functional value in a relay is associated with several magnetic characteristics:
| Property | Engineering significance in Relay Magnetic Iron Core |
| High magnetic permeability | Provides a low-reluctance path for magnetic flux |
| Low coercivity | Supports rapid magnetization and demagnetization |
| Low residual magnetism | Reduces the risk of armature sticking after coil release |
| Stable magnetic response | Supports repeatable pull-in and release behavior |
| Suitable cold-forming capability | Enables high-volume stamped or cold-headed geometries |
| Machinable surface |
Allows controlled pole-face and dimensional finishing |
The material specification should not be evaluated only by chemical composition. For Soft Magnetic Iron Rods, the magnetic condition of the supplied material and the manufacturing history can influence final performance.
Cold working, machining, annealing, and surface processing may alter the magnetic response of a Pure Iron Rod for Relay. Therefore, material traceability and process control should be considered together.
Consult Our Electrical Engineers Today
Five Engineering Functions of the Relay Core
DT4C Soft Magnetic Iron Core establishes a low‑reluctance magnetic circuit path inside electromagnetic relays. Material impurity limits and dimensional tolerances directly decide actuation sensitivity, dropout timing and long‑term mechanical reliability. Improper core selection is one leading root cause of armature sticking, delayed release and unexpected relay failure.
1. Magnetic Flux Concentration and Reluctance Reduction
Dispersed magnetic flux is generated once current flows through the relay coil. As a high‑permeability soft‑magnetic component, the Soft Magnetic Pure Iron Core gathers scattered magnetic field lines and cuts overall magnetic resistance of the magnetic loop. Under identical winding configuration and driving current, concentrated flux delivers stronger electromagnetic pulling force, lowering minimum operating current and improving overall relay sensitivity.
2. Electro‑magnetic‑mechanical Energy Conversion
The DT4C Magnetic Iron Core works as the medium that converts coil electric energy into usable magnetic force. Generated magnetic attraction pulls the armature, drives contact movement, and completes make‑and‑break of the main power circuit. Without a qualified core, most relay coils cannot produce sufficient mechanical output force under rated operating voltage.
3. Actuation And Dropout Performance Regulation
DT4C Electromegnet Iron Core material, end‑face flatness, and machined dimensions directly set pick‑up voltage and dropout voltage thresholds. DT4C pure iron delivers coercivity ≤48 A/m and extremely low remanence. After coil power cuts off, residual magnetic flux dissipates immediately, eliminating permanent magnetic pull that causes armature adhesion and relay mechanical lock‑up.
4. Closed Magnetic‑Loop Construction
Together with the armature, yoke, and working air gap, the Precision Relay Core builds a complete closed magnetic circuit. Well‑matched core geometry suppresses magnetic flux leakage, cuts hysteresis and eddy‑current loss. Stable magnetic‑loop parameters prevent performance drift under continuous high‑frequency switching cycles.
5. Application‑Oriented Magnetic‑Performance Customization
Adjusted cross‑section sizes and outer profiles satisfy distinct magnetic‑circuit requirements. Standard Relay Magnetic Core fits smart‑meter latching relays for remote power switching. Modified structural variants withstand mechanical vibration and high‑current loads inside EV HVDC contactors, covering industrial, household, and new‑energy relay use‑cases.
Frequently Asked Questions about Precision Relay Core
How does DT4C Electromagnet Iron Core geometry affect pull-in voltage?
Core geometry changes the magnetic path, effective pole area, and working air gap. A larger effective air gap generally increases magnetic reluctance and can increase the coil excitation required to achieve sufficient armature force. The complete core-armature assembly should therefore be evaluated.
Can DT4C Relay Cores be customized for OEM production?
Yes. Core geometry can be developed around the customer's relay architecture, including diameter, length, pole geometry, stepped sections, mounting features, and critical tolerances. The manufacturing process can be selected according to volume, geometry, and dimensional requirements.
Do your Soft Magnetic Pure Iron Core manufacturing processes satisfy IATF 16949 requirements?
Automotive‑grade core production follows full IATF 16949 process traceability rules.
contact us
For a production Relay Magnetic Iron Core, provide the 2D drawing or 3D CAD model, material requirements, annual volume, and critical magnetic specifications. The manufacturing scope can cover precision stamping, cold heading, CNC machining, tooling, and dimensional inspection, with material and batch traceability available according to the project quality requirements.
Submit the Pure Iron Magnetic Core drawing for engineering review before finalizing the production process, tooling structure, and inspection plan.
