1. Principle of relay
A relay is an electrical control device, generally composed of electromagnet, AC Relay Core Copper Ring, contact, and shell. In the circuit, the relay can play the role of connection, disconnection, and conversion. AC relay is generally composed of the electromagnet, iron core, contact, and shell.
2. The role of the iron core of AC relay

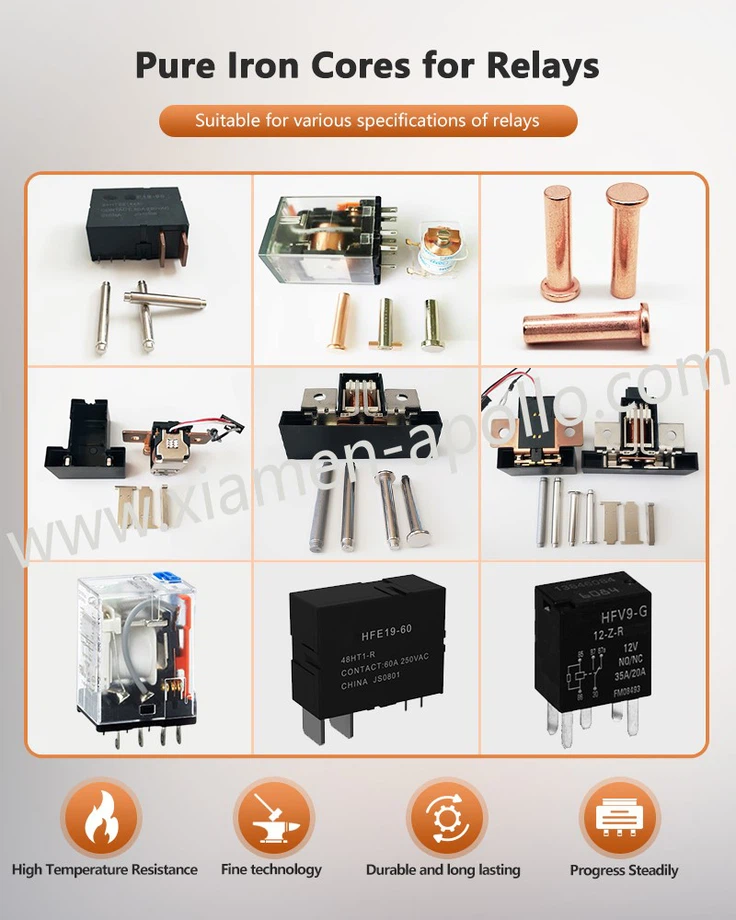

ThePure Iron Core for AC Relay is the core component of the AC relay, which mainly plays the role of concentrating magnetic field. When the relay is energized, the current in the coil will generate a magnetic field, and the iron core will concentrate the magnetic field so that the contact can be operated. At the same time, the material selection and shape design of the iron core will also affect the performance indicators of the relay such as power, response speed, and stability.
3. Why should the AC relay be placed with an iron core?
An AC relay usually needs to place an AC Core for Industrial Relay because the iron core can greatly improve the sensitivity and stability of the relay. The iron core has the characteristics of high magnetic permeability and low magnetic resistance, which can concentrate the magnetic field and reduce magnetic flux leakage. In this way, the response speed of the relay can be faster, and the possibility of misoperation can also be reduced, which improves the stability of the relay.
In addition, the shape and material selection of the iron core will also affect the performance of the relay. For different types of relays, it is necessary to select suitable core shapes and materials to meet different working requirements. For example, in high-frequency application scenarios, it is necessary to select high-magnetic permeability materials and reasonable core shapes to improve the performance and reliability of the relay.
4. Summary
AC relays are important equipment in electrical control systems, and the core, as its core component, plays a vital role in the performance and stability of the relay. Through the introduction of this article, we can better understand why AC relays need cores, as well as the role and influence of the core in the relay. In practical applications, we need to select suitable core shapes and materials according to different working requirements to ensure the performance and reliability of the relay.
