Riveted Contact Terminal Assembly is a metal electrical connection component that combines copper stamping technology with contact riveting processes to achieve stable current transmission and mechanical fixation. Its performance depends on copper conductivity, contact material selection, riveting strength, dimensional accuracy, and surface treatment. In relay systems, switches, automotive electronics, and electrical control equipment, precise manufacturing directly affects contact resistance, service life, and operational reliability.
What Is In-Die Riveted Moving Contact Assembly?

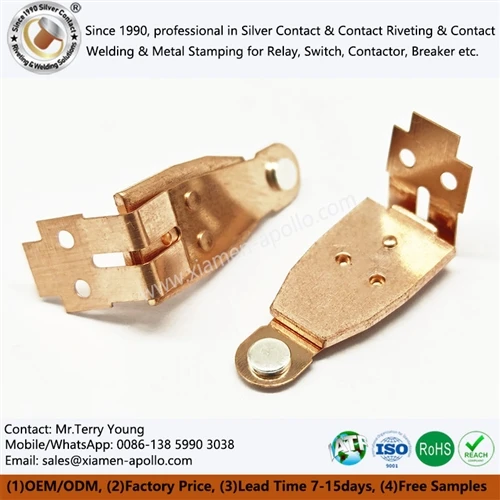

In-Die Riveted Moving Contact Assembly is manufactured by assembling stamped metal terminals with electrical contact rivets through mechanical riveting processes. The structure usually consists of a conductive terminal base, riveted contact point, and optional surface plating layer.
The Copper Contact Terminal provides electrical conductivity and structural support, while the contact rivet performs repeated electrical switching operations. Depending on application requirements, contact materials may include silver alloys, silver composites, tungsten alloys, or other electrical contact materials.
Typical manufacturing process:
- Copper sheet material selection
- Progressive stamping or precision stamping
- Contact rivet positioning
- Mechanical riveting or automated assembly
- Surface treatment and inspection
- Electrical performance testing
Copper materials are widely selected because of their:
| Material Property | Engineering Value |
|---|---|
| Electrical conductivity | Supports efficient current transmission |
| Thermal conductivity | Helps dissipate switching heat |
| Corrosion resistance | Maintains long-term electrical stability |
| Mechanical ductility | Suitable for precision stamping deformation |
The stamping process uses different die structures according to the complexity of Silver Electrical Riveted Components:
- Single-operation die: Suitable for simple terminal structures and low-volume production.
- Compound die: Performs multiple operations within one stamping cycle.
- Progressive die: Enables continuous high-volume production with stable dimensional control.
For Silver Contact Riveted with Copper Terminal requiring repeated assembly and automated production, progressive stamping is commonly selected because it improves production efficiency and reduces dimensional variation between batches.
Consult Our Electrical Engineers Today
Precision Copper Stamping: The Manufacturing Foundation Behind Reliable Terminal Assemblies
The electrical performance of the Copper Contact Element is closely related to stamping accuracy. Copper terminals often require strict control of flatness, hole position, bending angle, and contact alignment.
Precision stamping can typically maintain dimensional tolerances around 0.01 mm under controlled production conditions. This level of consistency reduces assembly deviation and improves contact force stability after riveting.
Key controlled parameters include:
| Parameter | Engineering Consideration |
|---|---|
| Material thickness | Determines current capacity and mechanical strength |
| Burr height | Influences the electrical contact stability |
| Flatness | Affects assembly positioning accuracy |
| Riveting position | Determines contact alignment |
| Bending angle | Controls terminal installation fit |
For Precision Riveted Silver Contact Switching Terminal, excessive burrs or dimensional deviation may increase contact resistance, generate localized heating, and accelerate contact wear.
The combination of copper stamping and contact riveting provides advantages in:
- High-volume production consistency
- Automated assembly compatibility
- Stable electrical connection
- Reduced machining waste
- Material recycling capability
Engineering Checklist for Selecting Copper Rivet Silver Electrical Contacts
Before approving a supplier or Silver Bimetal Rivet Stamping Part design, engineers should evaluate:
| Evaluation Item | Key Question |
|---|---|
| Contact material | Is the alloy suitable for switching conditions? |
| Terminal structure | Can it withstand mechanical installation force? |
| Stamping tolerance | Is dimensional consistency controlled for Copper Rivet Silver Electrical Contacts? |
| Riveting quality | Is contact fixation stable during operation? |
| Surface treatment | Does the coating match environmental requirements? |
| Quality system | Are materials and processes traceable? |
A correct selection process reduces field failures caused by contact overheating, mechanical loosening, and premature electrical degradation.
contact us
For projects requiring stable electrical performance, precision copper stamping, and controlled riveting processes, professional manufacturing support for Riveted Contact Terminal Assembly can shorten validation cycles and reduce supply risks. Contact our engineering team with your drawings, material requirements, and application conditions to evaluate a suitable production solution.
