Amidst the continuous advancement of smart grid infrastructure, smart meters-serving as critical terminal devices-have drawn increasing attention to the safety and reliability of their core internal components: the latching relays. These relays not only perform the fundamental function of controlling power connection and disconnection but also play a direct role in intelligent operations such as anti-theft measures and remote switching. However, in the event of a short-circuit fault within the power grid, the resulting instantaneous high current can trigger the abnormal repulsion of the relay contacts. This, in turn, may lead to sustained arcing, equipment fires, or even explosions, thereby posing a severe threat to both human safety and the integrity of the power grid. Consequently, conducting in-depth research into the force mechanisms acting on contacts under short-circuit conditions-and proposing effective optimization strategies-holds significant engineering value.
The dynamic behavior of latching relay contacts under the influence of short-circuit currents is primarily governed by two types of electromagnetic forces: the Holm force and the Ampère force. The Holm force originates from the current-constriction effect at microscopic contact points; it acts as a strong repulsive force, the magnitude of which is directly proportional to the hardness of the contact material and inversely proportional to the contact pressure. Studies have demonstrated that when the Brinell hardness of the contacts is reduced from 110 N/mm² to 70 N/mm², the Holm force decreases by approximately 7.7%; conversely, increasing the contact force between the contacts from 1 N to 10 N results in a significant reduction of 37.6% in the Holm force. These findings indicate that the initial tendency for contact repulsion can be effectively suppressed through the judicious selection of softer contact materials or by increasing the spring preload.
Concurrently, the Ampère force arises from the interaction between the current flowing through the conductive circuit itself and the surrounding magnetic field. In typical smart meter relays, a three-layer riveted laminated structure-comprising a large shunt plate, a small shunt plate, and a movable reed-is employed beneath the movable contact; the assembly features an overall "V-shaped" configuration. This design ingeniously leverages the attractive forces generated between conductor segments carrying currents in opposing directions, thereby generating an Ampère force directed toward the closing position to counteract the Holm force. Simulation analysis confirms that increasing the effective length of the conductive rod on the movable contact side results in a linear enhancement of this beneficial Ampère force. For instance, extending the conductive rod by 10 mm is sufficient to meet the withstand requirements for lightning impulse short-circuit currents of 20 kA/20 μs. Notably, while the bending position of the conductive rod has a negligible impact on the Ampère force, an excessively long reed may interfere with the magnetic circuit coupling between the relay core and the iron core; consequently, a delicate balance must be struck between mechanical and electromagnetic performance.
The complete contact repulsion process can be delineated into four distinct stages: the initial closed state → Holm-force-driven bending and deformation of the reed → contact separation triggering arc initiation → and finally, the arc reaction force dominating the complete repulsion. Accurate simulation of this dynamic process relies on a high-fidelity, three-dimensional coupled electromagnetic-structural model; when combined with contact force and push-rod force data measured via a force gauge, this approach enables a comprehensive reconstruction of the force evolution occurring at the precise moment of a short circuit.

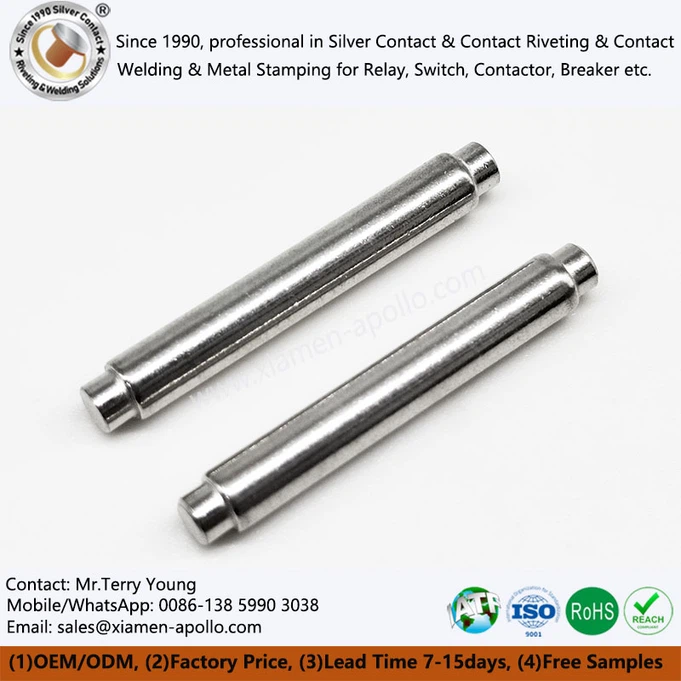

Within the relay's drive mechanism, the material properties of the iron core are of paramount importance. Soft Magnetic Iron Rods (RFe80) and Pure Iron Relay Cores are widely utilized in the fabrication of high-efficiency magnetic circuits due to their high magnetic permeability and low coercivity. These relay iron cores are typically formed via a "Relay Core Cold Heading" process, ensuring both dimensional precision and structural density. Furthermore, the quality of the coil's soft iron core directly influences coil excitation efficiency, while nickel plating applied to the relay core provides additional protection in humid or corrosive environments. For high-reliability applications, cold-headed pure iron cores and straight coil cores serve to further enhance product consistency and operational lifespan.
In summary, enhancing the short-circuit withstand capability of magnetic latching relays in smart meters requires a multidimensional, collaborative optimization approach-encompassing contact materials, contact force design, conductive circuit layout, and core magnetic components. By integrating theoretical calculations, numerical simulations, and experimental validation, we can not only elucidate the underlying physics of contact repulsion but also provide robust technical support for the research and development of next-generation, high-safety-grade relays.
