The Silver Tipped Contacts are precision joining materials engineered to create reliable metal-to-metal connections without melting the base components. With silver-based alloys typically melting between 600℃ and 850℃, they provide controlled bonding strength, excellent wettability, and stable electrical performance for electronic components, electrical contacts, and precision assemblies.
In advanced manufacturing, the performance of a finished component often depends on a material that remains invisible after assembly. Silver Soldered Electrical Contacts serve as this intermediate bonding layer, filling microscopic gaps between metal surfaces and forming high-strength joints through controlled brazing processes.
What Is a Composite Welding Contact and How Does It Work?
A Silver Finish Metal Button is a thin metallic filler material primarily composed of silver combined with alloying elements such as copper, zinc, tin, or other metals. Unlike welding processes that melt the parent materials, brazing relies on the controlled melting of the filler alloy while keeping the base metals solid.
The bonding mechanism consists of three main stages:
- Heating Stage: The Brazed Silver Contact reaches its melting temperature through furnace brazing, induction brazing, or other controlled heating methods.
- Flow and Wetting Stage: The molten silver alloy spreads along the metal surface through capillary action, penetrating microscopic gaps between components.
- Solidification Stage: After cooling, the brazing alloy forms a dense metallic connection with mechanical strength and electrical continuity.
This process minimizes thermal damage, reduces component deformation, and improves assembly consistency in precision manufacturing.
Engineering Characteristics of Silver Contact Disc
1. Controlled Melting Temperature for Sensitive Components
The melting range of silver brazing alloys is significantly lower than many structural metals, including steel and titanium alloys.
| Parameter | Typical Range / Characteristic |
|---|---|
| Main Composition | Silver-based alloy with Cu/Zn/Sn elements |
| Brazing Temperature Range | Approximately 600℃-850℃ |
| Joining Method | Furnace brazing, induction brazing, flame brazing |
| Bond Type | Metallurgical bonding |
| Primary Function | Metal component joining and electrical connection |
The lower processing temperature helps prevent:
- Heat distortion of precision metal parts
- Damage to nearby electronic components
- Excessive oxidation during assembly
- Dimensional changes in small assemblies
For electrical components such as contact assemblies and relay parts, thermal control directly affects final Silver Contact Buttons alignment and service reliability.
2. Superior Wettability and Gap Filling Capability
Electrical Contact Tips provide excellent fluidity after melting. The liquid alloy can penetrate narrow gaps between metal surfaces, creating uniform bonding areas.
This property is important in:
- Electrical contact assemblies
- Copper terminal connections
- Sensor components
- Precision mechanical structures
- Vacuum electronic components
A properly designed brazing joint reduces internal voids, improves mechanical stability, and maintains consistent electrical conductivity.
3. Corrosion Resistance and Long-Term Reliability
Silver alloy systems offer strong resistance against environmental degradation compared with many conventional joining materials.
In industrial applications involving humidity, temperature cycling, or chemical exposure, brazed joints must maintain:
- Stable electrical resistance
- Mechanical integrity
- Resistance to oxidation
- Structural reliability over repeated cycles
This is why Silver Contact Discs are widely applied in high-value precision manufacturing where joint failure can cause system downtime.
Consult Our Electrical Engineers Today
Industrial Applications in Electrical and Precision Engineering
Switch Contact Tips serve critical roles across high-reliability sectors where electrical resistance and mechanical durability are non-negotiable.
Low-Voltage Switchgear and Circuit Breakers
In molded case circuit breakers (MCCBs) and air circuit breakers (ACBs), Electrical Contact Buttons bond silver-graphite or silver-nickel contact tips to copper support arms. The low electrical resistivity of the silver joint interface prevents localized Joule heating during high-current fault interruptions.

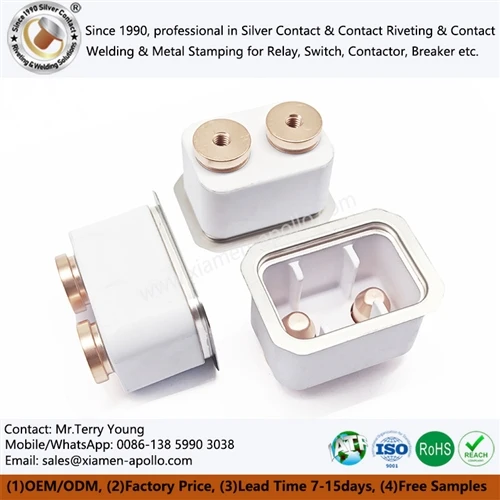

EV High-Voltage DC Contactors
New Energy Vehicle (NEV) power distribution units require robust connections capable of withstanding severe thermal shock and electromagnetic forces. Precision Silver Contact Welding ensures that shunt assemblies and contact bridges maintain structural stability under transient peak currents exceeding 1000 A.
Frequently Asked Questions About Electrical Contact Tips
What is the typical melting temperature range of Contact Bridge?
The product usually melts within approximately 600℃ to 850℃, depending on alloy composition. The selected grade depends on the base metal, operating temperature, and required joint strength.
How can manufacturers verify Silver Joint Contacts thickness and material composition?
Manufacturers verify thickness through precision dimensional measurement and confirm composition through laboratory chemical analysis methods. Material certificates and inspection records support traceability requirements.
Can Silver Bonded Contact Components be used for electrical contact manufacturing?
Yes. The products are commonly used in electrical contact assemblies because they provide strong metallurgical bonding, stable conductivity, and resistance to thermal cycling.
contact us
For projects requiring reliable Silver Tipped Contacts or precision electrical joining materials, submit your drawings, material requirements, and production volume targets for engineering evaluation. Our manufacturing team supports OEM projects with material selection, precision processing, quality verification, and stable batch production capabilities.
