High-voltage direct current (HVDC) transmission is an advanced power transmission technology that converts three-phase alternating current (AC) into high-voltage direct current (DC), transmits it over long distances via dedicated lines, and finally inverts it back to AC at the receiving end. Its system mainly consists of a rectifier station, an inverter station, DC transmission lines, and grounding electrodes. It achieves efficient energy conversion and precise control through power electronic devices such as thyristors. In this large-scale power transmission and conversion system, extremely high demands are placed on the precision manufacturing of core electrical components. For example, the EV Relay Pure Iron Stamping Part, a key magnetic and support component, directly affects the stable operation of the entire electrical system due to its material properties and processing precision.
The primary advantage of HVDC technology in modern power grids lies in its superior performance in long-distance, high-capacity power transmission. DC lines eliminate reactive power losses caused by capacitors and inductors, resulting in significantly higher transmission efficiency than traditional AC lines, making them particularly suitable for energy transmission across thousands of kilometers. To support this high-power electrical conversion, the contactors and relays within the system must possess extremely high mechanical strength and magnetic permeability. Therefore, using a Pure Iron Stamping Bracket for EV HVDC Contactor Assembly effectively reduces magnetic reluctance, ensuring rapid response and stable engagement under high-voltage, high-current conditions.
HVDC demonstrates unique technological value in system stability and grid interconnection. It is unaffected by AC system voltage collapse and frequency instability, and can safely interconnect two AC grids with different frequencies or asynchronous connections through back-to-back converter stations, enabling cross-regional power trading and dynamic regulation. This high-precision power control places extremely stringent requirements on the tolerance matching of internal components. Stamped Pure Iron Brackets for Contactors, thanks to their precise stamping process, ensure micron-level dimensional stability during frequent electrical operations, thereby guaranteeing accurate grid control.
HVDC technology has irreplaceable advantages in the field of submarine cable transmission. Because seawater has a significant capacitive effect on alternating current, it limits the transmission distance of AC submarine cables. DC submarine cables, however, completely avoid this problem, enabling efficient long-distance power transmission across the sea. With the explosive growth of the new energy vehicle industry, high-voltage DC technology has also extended to the charging and power distribution systems of electric vehicles. The application of High Precision Pure Iron Stamping for EV Parts allows the high-voltage contactors inside electric vehicles to withstand severe vibration and temperature changes, perfectly adapting to the complex onboard electrical environment.
From an economic and environmental perspective, although the initial investment in converter stations for HVDC systems is higher, the required transmission corridor width for DC lines is only about two-thirds that of AC lines, significantly saving land resources. Furthermore, it generates less electromagnetic radiation, making it more environmentally friendly. In the high-voltage DC contactors of electric vehicles, Electric Vehicle Contactor Pure Iron Base is widely used to achieve maximum space utilization and lightweight design. It not only provides robust mechanical support but also optimizes the overall energy efficiency of the electromagnetic system through the excellent soft magnetic properties of pure iron.

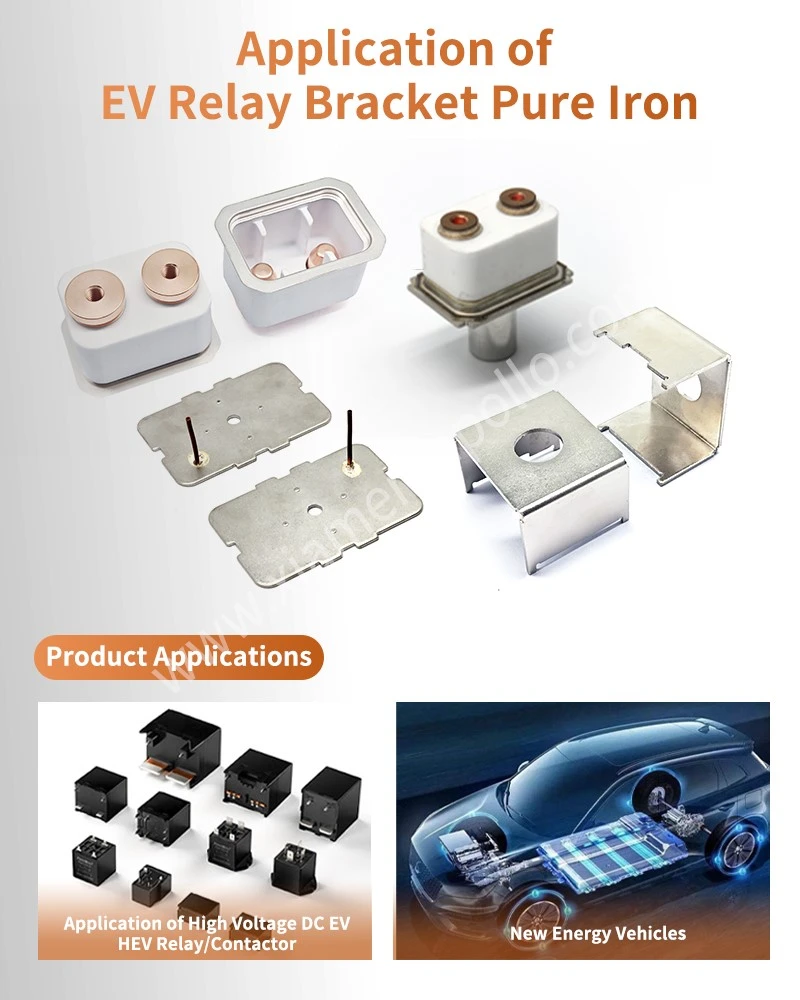

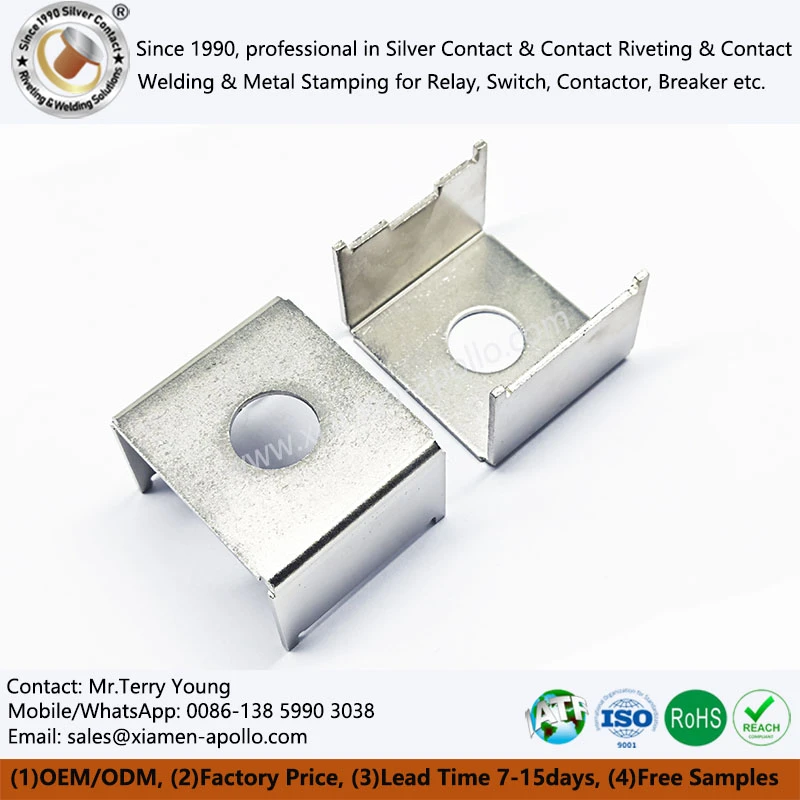

The reliable operation of HVDC systems relies on advanced control and protection systems. These systems monitor the voltage and current status of the entire transmission link in real time and react rapidly in the event of a fault. In this sophisticated electrical architecture, every tiny metal component plays a crucial role. The EV Relay bracket Pure Iron, as the core skeleton of the relay assembly, must possess extremely high fatigue resistance to ensure that it does not deform or break during millions of operating cycles.
With the global energy structure transitioning to clean energy, HVDC technology has become a "power highway" connecting large-scale wind and solar power bases in the west with load centers in the east. As this technology extends downstream, the high-voltage DC system for electric vehicles presents new challenges to the manufacturing processes of components. Electrical Pure Iron Stamping for EV DC Contactor, through advanced cold forging and stamping technology, preserves the continuity of metal fibers and significantly improves the insulation and withstand voltage performance of the contactor under the risk of high voltage breakdown.
If you require professional support regarding iron bracket customization for EV DC Relays or related manufacturing processes, please feel free to contact us. We will provide you with comprehensive technical solutions.
