Upgrading Smart Metering And Energy Consumption Management: An Analysis Of High-Precision Sampling Technology Using Shunts For Magnetic Latching Relays

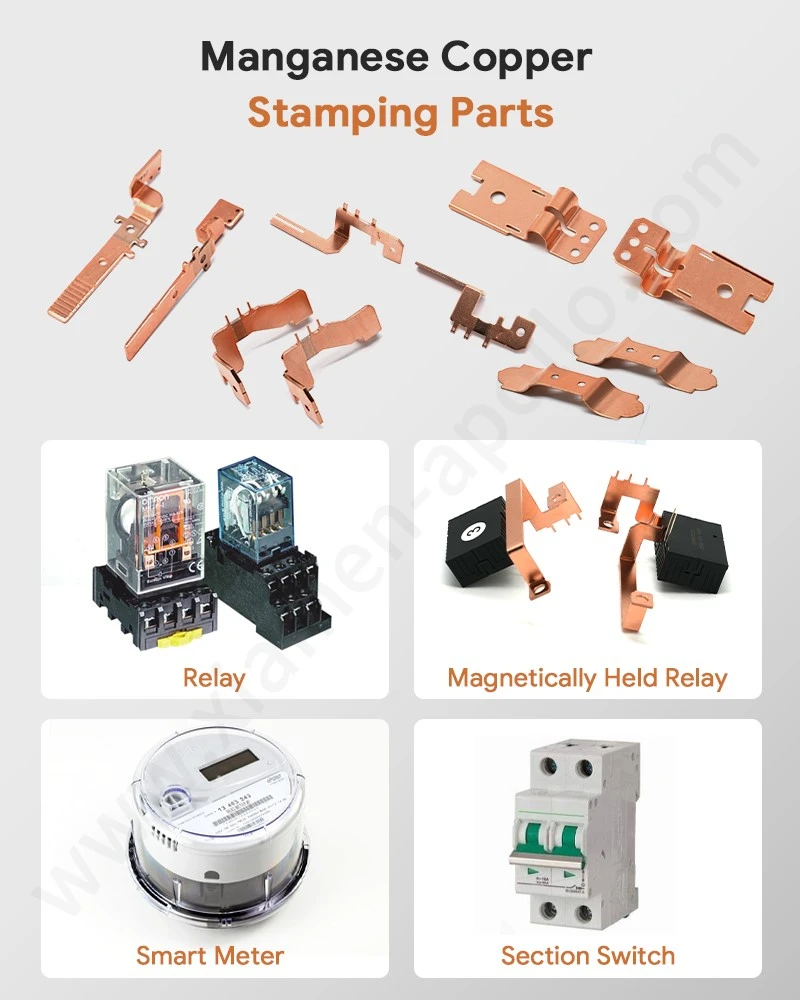

Industry News Brief - With the widespread adoption of smart grids, smart home systems, and low-power industrial control applications, the demand for high-precision current sampling in power metering and load control equipment has surged. As a core component within system control and measurement chains, the magnetic latching relay-characterized by its bistable nature and zero-power holding state-has become the industry standard for smart switches, smart sockets, and electricity meters. However, ensuring the accuracy and stability of current sampling when devices encounter surge currents and electromagnetic interference (EMI) from complex loads has become a critical focus in engineering design.

In this technological evolution, the Mangnetic Latching Relay Shunts play a decisive role. As a high-precision resistive element connecting relay contacts to metering chips, the shunt's temperature coefficient (thermal drift), structural design, and resistance to interference directly determine the metering accuracy and long-term reliability of the entire device.

Smart home and metering devices prioritize ultra-low standby power consumption. The coil of a magnetic latching relay receives a pulse signal only during state transitions; thereafter, it relies on the magnetic force of an internal permanent magnet to maintain the contacts in either a closed or open position. This mechanism eliminates the continuous coil power consumption typical of conventional electromagnetic relays in their normally open or normally closed states.

Nevertheless, the electromagnetic transient response triggered by coil-driving pulses, combined with the impact of complex loads on the relay contacts, places higher demands on current measurement. Smart circuits control a diverse range of loads, which often exhibit the following characteristics:

• Capacitive Inrush Current: Upon activation, loads such as LED drivers and switching power supplies can generate surge currents that are several to dozens of times higher than their steady-state values.
• Inductive Back-EMF: Small motor loads-found in applications like motorized curtains or electronic door locks-can introduce high-amplitude voltage spikes into the circuit during startup or stall conditions.

In such high-dynamic-range current environments, standard sampling resistors are prone to resistance drift caused by localized heating, which subsequently leads to measurement inaccuracies. By utilizing an E-beam Welding Shunt specifically designed for magnetic latching relay structures, engineers can effectively suppress thermal drift. This ensures that resistance values-often in the milliohm or even microohm range-remain precise and stable, even when subjected to high-surge currents.

To ensure the reliability of metering systems throughout their long operational lifecycles, engineering teams must carefully evaluate the following core parameters when integrating EBW Manganese Copper Shunts with magnetic latching relays:

1. Manganin Alloy and Low Temperature Coefficient of Resistance (TCR)

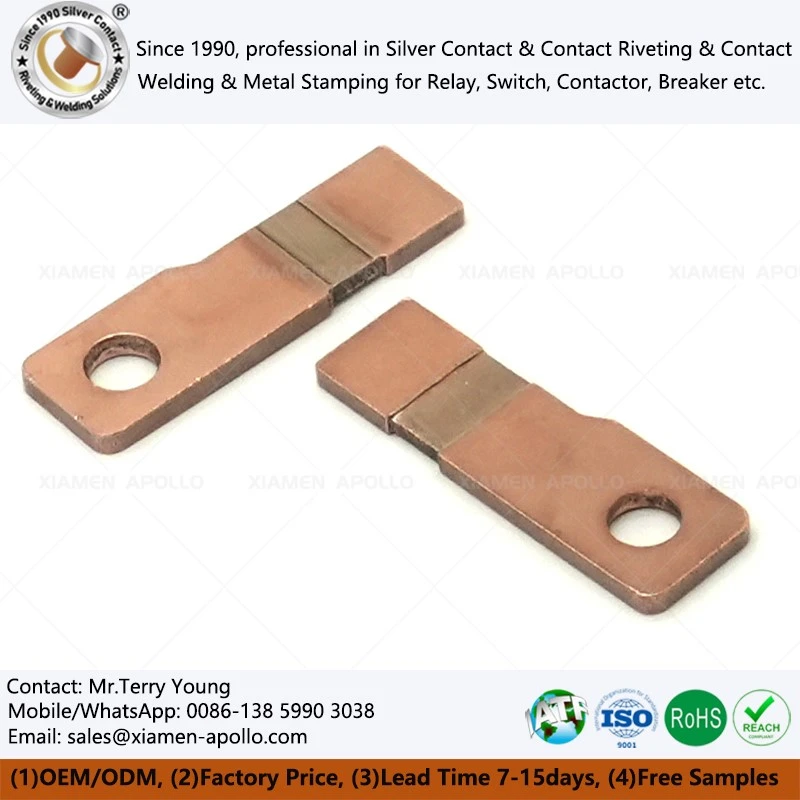

High-quality shunts typically employ electron-beam welding to join a highly stable Manganin alloy with copper terminals. Manganin is characterized by an exceptionally low Temperature Coefficient of Resistance (TCR)-usually less than ±20 ppm/℃-and minimal thermal electromotive force (Thermal EMF). This ensures that resistance remains stable even when temperature rises due to prolonged high-current flow, thereby minimizing non-linear metering errors at the source.

2. Structural Integration and Low Parasitic Inductance

Space within smart switch enclosures and electricity meters is often extremely limited. Terminal Block Manganin Shunts must be precisely welded to the pins or busbars of magnetic latching relays. A modularly designed shunt can be integrated directly with the relay's output terminals; this not only simplifies SMT (Surface Mount Technology) assembly but also significantly shortens the path of the high-current loop, reducing parasitic inductance and enhancing the component's resilience against high-frequency surge currents.

3. Resistance to Strong Magnetic Fields and Electromagnetic Interference (EMI)

In high-density installation environments, the intense pulse current generated during the actuation of a magnetic latching relay can cause radiated interference to nearby wireless communication modules (such as Zigbee, Wi-Fi, or BLE). A well-engineered shunt-utilizing symmetrical sensing traces or a dual-path sensing design-can cancel out external magnetic field interference, ensuring that low-level voltage sensing signals remain unaffected by coupling from the relay's drive pulses.

In many practical applications, relays and shunts within smart devices remain fixed for years, undergoing only a minimal number of switching operations. This long-term static operating mode imposes rigorous requirements on the physical and chemical stability of the components:

• Oxidation Resistance and Environmental Protection: High humidity and the presence of fine dust can easily lead to the oxidation of metal contact surfaces. High-quality Prepayment Meter Shunts feature specialized nickel plating or anti-corrosion coatings, which prevent resistance values ​​from drifting due to surface oxidation.
• Thermal Stress and Mechanical Durability: It is critical that the thermal expansion coefficients of the shunt and the relay pins are well-matched. This ensures that long-term exposure to thermal cycling-fluctuations between high and low temperatures-does not cause solder joint cracking or an increase in contact resistance.

By incorporating magnetic latching relays and Cable Wire Shunt Resistors that have undergone rigorous thermal cycling and full-load aging tests, engineers can significantly reduce post-sales failure rates. This ensures that the system maintains measurement accuracy in compliance with national and international standards (such as ANSI or IEC metering specifications) even after years of operation.

From smart meters to high-density intelligent switches, efficient energy management has become a primary focus in hardware development. Magnetic latching relays address power consumption challenges at the system control level, while Braze Welding Shunt Resistance for Energy Meter ensures accuracy and reliability at the sensing level. The deep integration of these components-in terms of both physical structure and electrical performance-is driving the evolution of a new generation of intelligent terminal hardware.

For hardware architects and procurement decision-makers, the selection of a current-sensing solution should not be based solely on the cost of individual components. Instead, the overall performance of the Primary Wire Manganin Shunt combination should be evaluated holistically:

• Prioritize suppliers that offer integrated, pre-soldered, or pre-assembled E-beam Welding Shunt units to minimize assembly-related errors.
• For applications involving LED inrush currents or motor stall conditions, specifically request data on the shunt's resistance to fusing under high transient currents, as well as its recovery time.
• Verify the PCB layout specifications for the shunt's sensing terminals, ensuring that the sensing signal traces are routed away from the relay's drive coils and high-frequency antenna areas.

By incorporating high-quality Magnetic shunt for latching relays, engineering teams can effectively balance the requirements for low power consumption, compact size, and high precision-ensuring stable, reliable technical support for equipment throughout a multi-year operational lifespan.

Contact our in-house automated manufacturing facility today to request samples and a tailored engineering quote. We will help ensure your Mangnetic Latching Relay Shunt project stays on schedule and clears compliance certification with ease!
