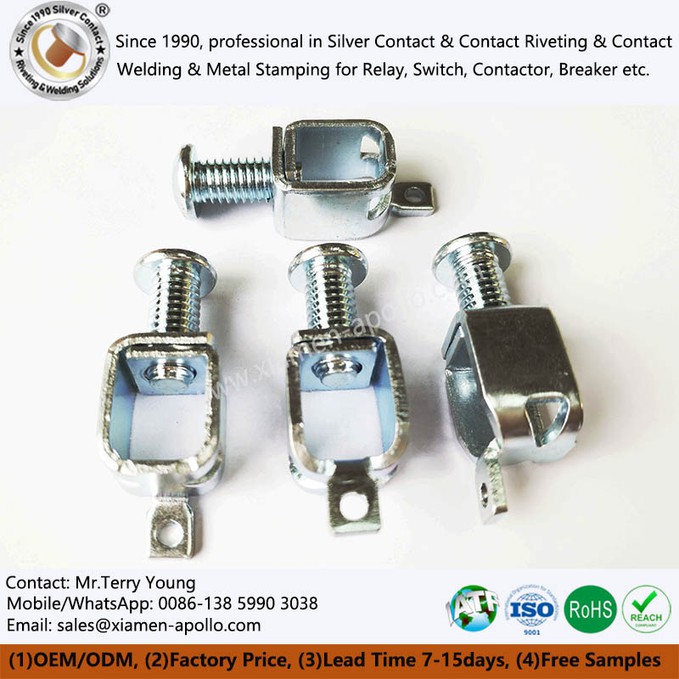

A Wire Clamp Terminal with Screw is an electronic component that achieves wire connection through mechanical fastening. It is widely used in industrial control cabinets and other applications where high power transmission stability is required. Its core function is to use the pressure applied by the screw to firmly fix the wire to the conductive metal plate, thus forming a low-resistance, high-reliability electrical connection. It can accommodate various wire diameters to meet different current and voltage transmission requirements.

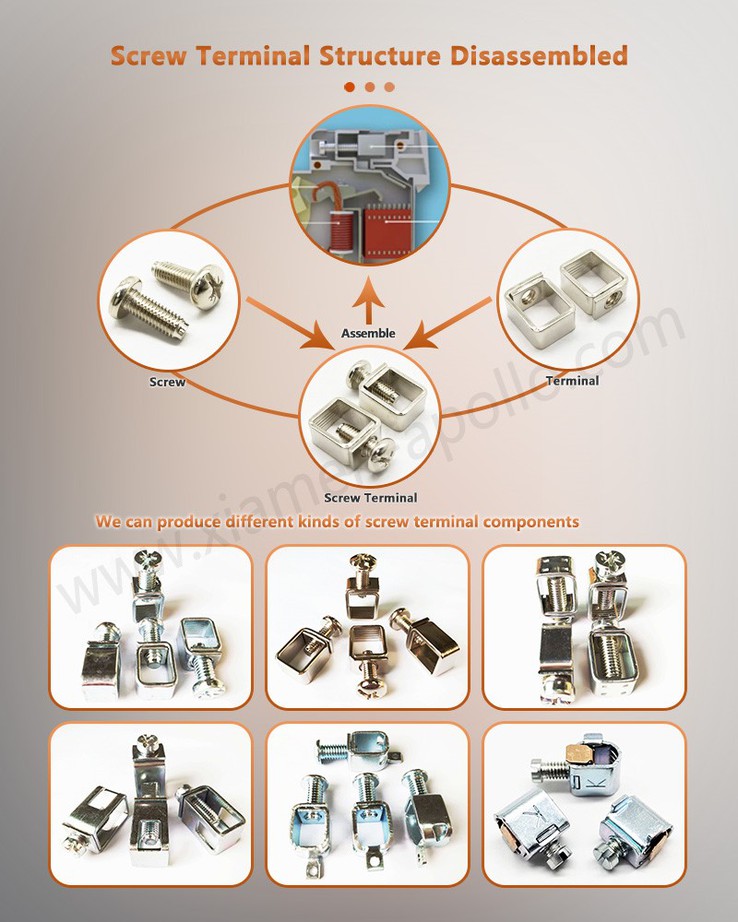

The core structure of a Cage Clamp Screw Terminal consists of three parts: a conductive metal plate, a screw, and an insulating shell. The conductive metal plate is usually made of copper alloy and is typically tin-plated or silver-plated to reduce contact resistance and ensure stable current transmission. The screw, through its threaded engagement with the metal plate, generates axial pressure during rotation, tightly pressing the inserted wire, achieving both mechanical fixation and electrical connection. The insulating shell is made of flame-retardant engineering plastic and has a closed structure, effectively preventing the risk of electric shock and isolating the terminal from external environmental interference such as dust and moisture, ensuring stable operation. These terminals have a withstand voltage of ≥2500V, excellent insulation performance, and can operate stably for extended periods in environments with humidity levels ranging from 5% to 95%.
When using a Pre-Assembled Screw Clamp Terminal, the standard procedure must be followed to ensure a secure connection. First, strip the insulation layer of the wires, with a recommended stripping length of 5-8mm. Then, insert the exposed conductor into the slot of the terminal's metal plate and tighten the screw with a screwdriver. The torque should be controlled between 0.5-0.8 N·m to ensure the wires are fully clamped, and there is no looseness. During operation, avoid excessive force to prevent screw stripping or metal plate deformation, which could affect the connection. Also, check that the wire cross-sectional area matches the terminal specifications. Because the terminal uses a closed structure, no additional insulation treatment is required after connection. However, pay attention to the correct installation orientation to prevent water accumulation due to downward-facing screw holes, which could affect terminal performance.
Compared to other types of terminals, such as spring-loaded and plug-in terminals, the core advantage of the Pre-Fitted Screw Terminal Clamp is its superior connection stability. It secures the wires using mechanical pressure, preventing loosening even under prolonged vibration or temperature variations. Its operating temperature range is typically -40℃ to +105℃, and its lifespan is approximately 10,000 mating cycles. Furthermore, the enclosed structure enhances the terminal's protection against electric shock, making it particularly suitable for applications with high electrical safety requirements, such as industrial control cabinets. Its multi-size compatibility allows it to work with wires of different diameters, effectively reducing replacement costs due to incompatibility and improving ease of use.
Industrial control cabinets are a typical application scenario for Integrated Screw Clamp Terminals, where stringent requirements for long-term stable operation and electrical safety align perfectly with the terminal's performance characteristics. When selecting terminals, three key parameters must be considered: First, the conductor cross-sectional area must match the actual wire diameter used to avoid connection instability due to mismatched diameters. Second, the withstand voltage must be at least 1.5 times higher than the system's highest voltage to ensure electrical safety. Third, the protection rating is crucial; IP20 or higher enclosed structures are recommended for improved environmental adaptability. For use in humid or corrosive environments, metal sheets with protective coatings or waterproof covers can be added to further extend their lifespan.
contact us
Our Wire Clamp Terminal With Screw strictly adheres to the above technical standards and selection requirements. It uses high-quality copper alloy conductive sheets with tin plating, paired with a flame-retardant enclosed insulating shell. It is compatible with multiple wire diameters, meets withstand voltage standards, and offers excellent vibration resistance and temperature resistance, perfectly meeting the robust connection needs of industrial control cabinets and other scenarios. It can directly match various compliant wires for reliable electrical connections.
If you need Terminal Block products and would like to know the specific specifications, applicable scenarios, and detailed parameters of the product, please feel free to contact us. We will provide you with professional solutions and sincerely invite you to place an order.
