Products introduction

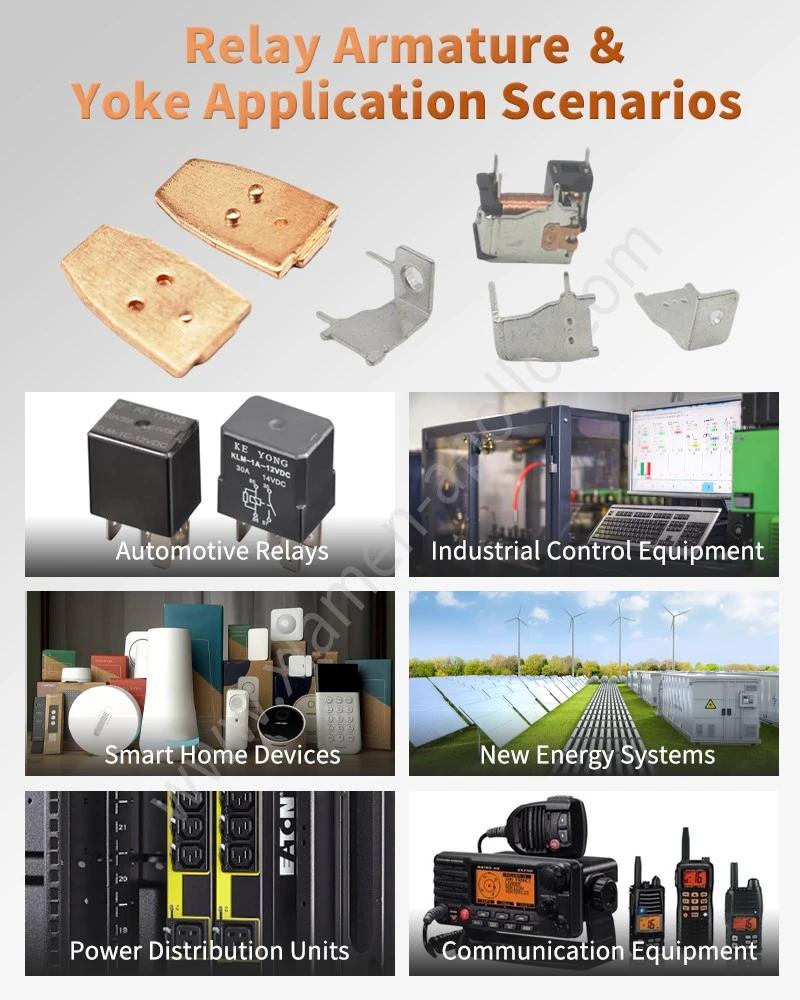

The operational stability of industrial electromagnetic equipment largely depends on the compatibility of its magnetic circuit components. Magnetic Yoke, as the core magnetic conductor of the magnetic circuit, is designed with differentiated structural, material, and performance standards based on the equipment's operating conditions. Key considerations for industry-specific selection include application, magnetic flux density, molding structure, loss control, and stress conditions. Material selection and processing schemes for different equipment require targeted adjustments.
Large hydro-generator sets and high-speed generators utilize rotor components that serve the triple functions of magnetic conduction, torque transmission, and centrifugal force resistance. These components often employ a ring structure made of laminated thin silicon steel sheets. During long-term high-speed operation, the units experience extremely high centrifugal loads, and the magnetic flux values are in the medium range. The laminated structure suppresses eddy current heating. Under these conditions, mechanical strength takes precedence over magnetic performance. The finished product must possess a stable structure resistant to deformation and loosening, which is a typical application of Electrician Pure Iron Yoke in heavy-duty power generation equipment.
Internal components for various asynchronous motors are mainly used to close the stator magnetic circuit, fix the iron core, and buffer operational vibrations. Molding schemes include cast iron integral, welded steel plate, and laminated silicon steel. The internal magnetic flux density of the equipment is relatively low, primarily supporting the main magnetic and leakage flux circuits. In this scenario, the core performance criteria for components are structural rigidity and the ability to close the complete magnetic circuit, thereby reducing motor operating noise and vibration. The structural design of the Relay Yoke Neck directly determines the overall operating comfort of the motor.
The components assembled at both ends of the power frequency transformer and reactor serve to connect the core column and close the main magnetic circuit. The material used is the same as the core column, using stacked silicon steel sheets. The equipment operates continuously with a 50Hz alternating magnetic flux. During production, minimizing iron loss and excitation current is a key focus. Magnetic performance is the primary design indicator for these components, reducing no-load energy consumption and ensuring long-term stable operation of the transformer equipment. The Magnetic Yoke is an indispensable core component for power transformer equipment.
The components used in the non-destructive testing field are portable, solid gantry-type, horseshoe-shaped structures. They do not require silicon steel sheets and rely on AC/DC excitation to achieve localized magnetization of the workpiece, accurately detecting surface cracks in steel. These components do not participate in energy conversion, only focusing the local magnetic field. Research and development focus on portable design and high flaw detection sensitivity. Equipment operating losses do not require strict control. Yoke Bending Plate Sheet Metal Stamping has proprietary design standards for lightweight and high sensitivity in the flaw detection industry.
The core function of assembly components in medium-frequency induction heating and electromagnetic melting equipment is to concentrate the magnetic field and block leakage flux, confining electromagnetic energy to the heating area. A silicon steel lamination process is uniformly used. High-frequency operating conditions easily generate eddy currents, causing component overheating. The design focus of these components is leakage flux shielding, which improves material heating efficiency and prevents overheating failures of surrounding equipment. Relay Coil Yoke's lamination process is key to solving the high-frequency heating problem.

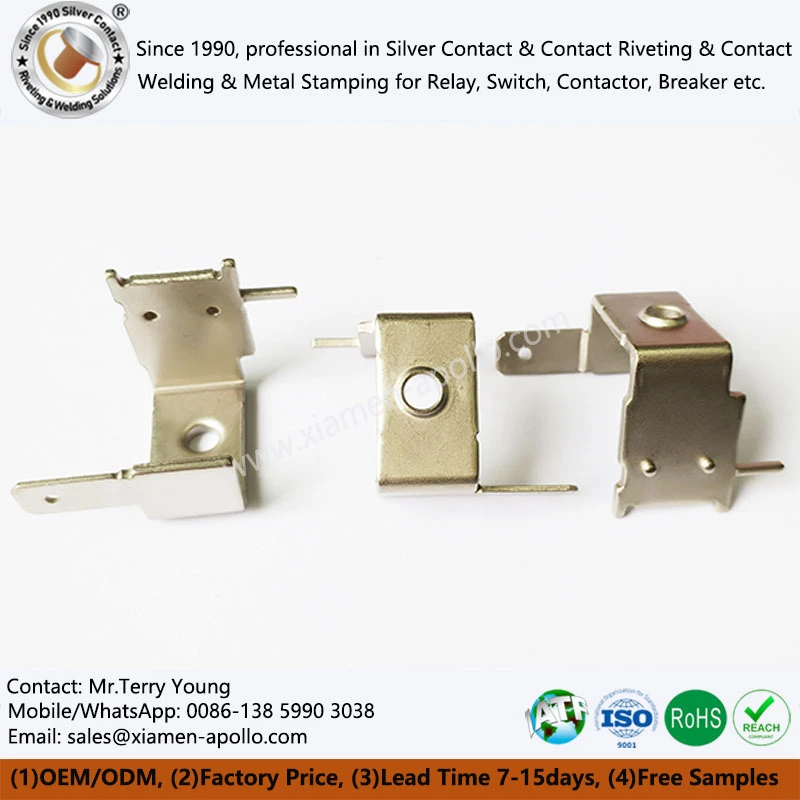

The internal components of low-voltage permanent magnet relays and contactors are solidly stamped from low-carbon steel, responsible for building a complete magnetic circuit and amplifying magnetic force. The equipment mostly operates in static or low-frequency environments with small magnetic flux fluctuations. High-permeability, high-saturation magnetic flux steel is prioritized in production to control overall production costs while ensuring stable electromagnetic attraction. Yoke Mount Kit for Relay is a fundamental component of small, low-voltage electromagnetic components.
our Products
The Relay Yoke Plate, as a key part of electrical equipment, directly affects the overall performance of the equipment. With the acceleration of electrification and the development of new technologies, higher requirements have been put forward for the design and material selection of the Yoke. Our company has developed a series of high-performance yoke products with many years of experience and technical accumulation to meet the needs of modern electrical equipment for high-performance yokes.
Our company not only provides high-quality Magnetic Yoke products but also offers customized solutions to meet customers' specific needs. Our products use pure iron material and are manufactured through a precise stamping process to ensure the size accuracy and shape consistency of the yoke. Our products are widely used in motors, transformers, relays, and other electrical equipment, especially in the fields of electric vehicles, renewable energy, and industrial automation. Our products have performed well and have been highly recognized by customers.
If you have needs for bulk purchases or customized development of Electrician Pure Iron Strip Stamped Yokes for various operating conditions, please feel free to contact us. We can provide complete solutions adapted to different electromagnetic equipment.
