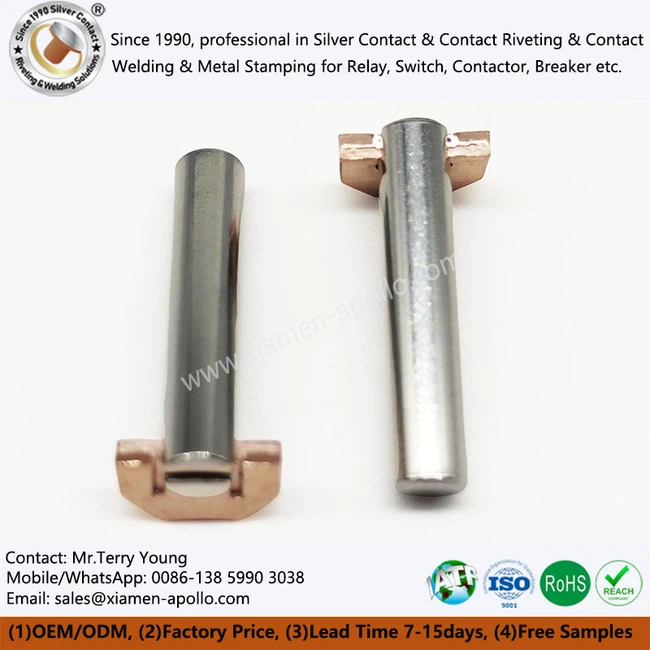

In the field of industrial automation, AC industrial control relays are key electrical components, and their internal structure and working principle have attracted much attention. One of the core components of the relay is the Pure Iron Core AC Relay, which plays a vital role in the electromagnetic system. The AC Rod is usually made of silicon steel sheet material, which can effectively reduce hysteresis loss and circulating current generated by the alternating electromagnetic field, thereby improving the performance and reliability of the relay.
The working principle of the AC relay is based on electromagnetic action. When the coil is energized, the core moves and closes under the action of the electromagnetic force, driving the moving contact to move and realize automatic control of the circuit. This design enables the relay to be flexibly applied in different circuits and maintain stable operation even in the case of large voltage fluctuations.
The working principle of the intermediate relay is similar to that of the AC contactor. Both are composed of a fixed core, a moving core, a spring, a moving contact, a static contact, a coil, a terminal, and a housing. When the coil is energized, the moving iron core moves and closes under the action of the electromagnetic force, driving the moving contact to move, so that the normally closed contact is separated and the normally open contact is closed; when the coil is de-energized, the moving iron core drives the moving contact to reset under the action of the spring.
The internal structure of the AC relay is complex. In addition to the DT4C AC Relay iron core, it also includes components such as contacts and coils. These components work together to achieve circuit conversion and control. In practical applications, the iron core design and material selection of the relay have a direct impact on the performance of the entire system. Therefore, continuously optimizing the material and structure of the iron core is the key to improving the performance of the relay.
In short, the continuous advancement of the iron core technology of AC industrial control relays provides more efficient and reliable electrical control solutions for industrial automation. In the future, with the further development of material science and manufacturing processes, iron core technology will become more mature, bringing more innovations and breakthroughs to the field of industrial automation.
