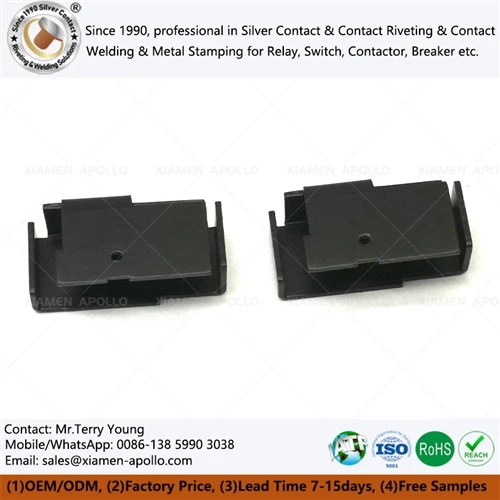

A Magnetic Latching Relay Shield Cover is a ferromagnetic enclosure component used to control magnetic flux around a bistable relay mechanism. Its engineering function is not simply mechanical protection: the cover can redirect external magnetic flux, reduce magnetic leakage from the relay, and help maintain the operating margin of the magnetic circuit when the relay is installed near other current-carrying or magnetically active components.
For relay designs exposed to magnetic-field interference, the material, wall geometry, air gaps, fastening method, and surface treatment must be evaluated together. A Magnetic Latching Relay Shielding Cover with powder coating provides mechanical protection and magnetic flux diversion, while EMC performance must be verified against the actual frequency range and field strength defined by the equipment specification.
Magnetic Latching Relay Shielding Housing Structural Design and Material Performance
Material selection dictates shielding efficiency of Relay EMI Shield Cover. Low‑carbon cold‑rolled steel sheets provide high permeability at moderate magnetic field strengths, while specialized surface treatments ensure long‑term environmental resistance.
| Material Property | Specification / Value |
|---|---|
| Base Material | Carbon Cold‑Rolled Steel (SPCC / DC01) |
| Thickness Range | 0.5 mm‑1.5 mm (±0.02 mm) |
| Surface Treatment | Epoxy Powder Coating |
| Tensile Strength | ≥ 270 MPa |
| Magnetic Permeability | Initial μ ≥ 200, Max μ ≥ 2000 |
Core Engineering Advantages
- Magnetic Flux Precision: Directs stray flux to prevent permanent-magnet saturation, ensuring stable holding force across operating temperatures from −40 °C to +85 °C.
- EMC Compliance: Attenuates radiated emissions and susceptibility, helping assembled devices pass rigorous electromagnetic compatibility testing.
- Structural Protection: Combines Relay Protective Cover electromagnetic shielding with physical enclosure protection, working alongside potting compounds to resist moisture and dust ingress (IP67 compliance).
Critical Application Environments of Relay Shield Cover
Magnetic Latching Relay Shield Housings are deployed across demanding sectors where electrical noise and mechanical reliability are primary design constraints.
- Smart Grid & Smart Meters: Installed in single‑phase and three‑phase smart electricity meters to protect metering relays against high‑intensity magnetic tamper attacks and grid‑side transients.
- New Energy Power Electronics: Utilized in photovoltaic inverters, energy storage systems (ESS), and EV charging stations, the Magnetic Latching Relay Shielding Cover isolates sensitive switching components from high‑frequency magnetic fields generated by power conversion units.
- IoT & Smart Home Automation: Applied in high‑density smart distribution panels to eliminate crosstalk between adjacent latching relays during simultaneous high‑inrush load switching.
Frequently Asked Questions about Relay Shield Housing
What is the standard material thickness tolerance for custom Magnetic Latching Relay Metal Cover?
Our standard progressive die stamping achieves dimensional tolerances of ±0.02 mm to ±0.05 mm, ensuring consistent fit and repeatable magnetic performance across high‑volume production runs.
What material is commonly used for a Relay Shield Cover?
Cold-rolled low-carbon steel is commonly selected because it combines ferromagnetic behavior, stamping capability, and mechanical rigidity.
What information is required when ordering custom Relay Shield Housing?
Provide the material grade, sheet thickness, 2D/3D drawing, critical tolerances, mounting geometry, surface-treatment requirement, relay model or interface dimensions, magnetic/EMC test conditions, annual volume, and required quality documentation.
Can Xiamen Apollo provide material traceability reports and quality certifications for OEM projects?
Yes. As an IATF 16949 and ISO 9001 certified manufacturer, we provide full material test reports (MTR), RoHS compliance documentation, and dimensional inspection reports with every shipment.
contact us
Send your Magnetic Latching Relay Shield Cover drawing today to receive an engineering review and production quotation.
