Manganese Copper Shunts: The Cornerstone Of Current Measurement

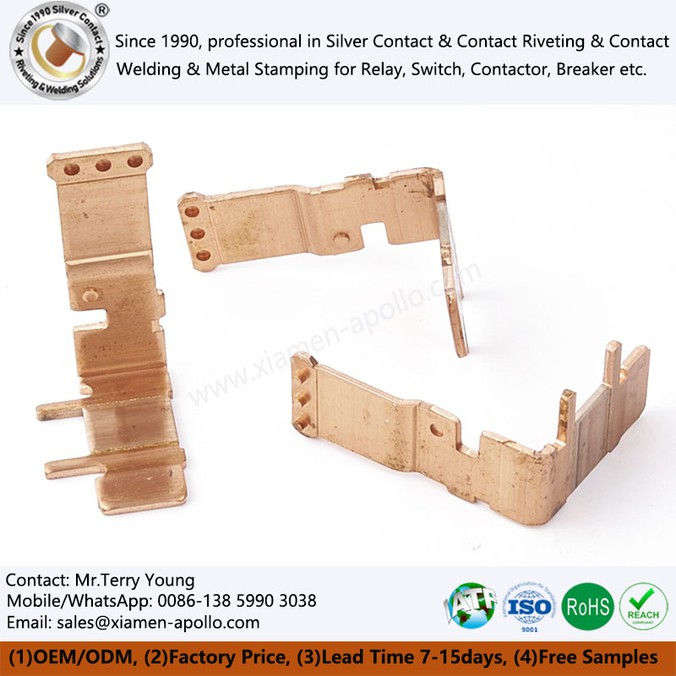

A Manganese Copper Shunt is generally a fixed-value, low-resistance resistor used to extend the current range. Simply put, a shunt is essentially a very low-resistance resistor made of specialized manganese copper sheets. When current flows through it, a voltage drop is generated, which the metering chip uses to collect data. Manganese copper, the core component of a high-quality shunt, possesses excellent electrical conductivity and magnetic permeability. These properties ensure high precision and reliability, enabling accurate current measurement. Furthermore, manganese copper exhibits corrosion and heat resistance, making it suitable for use in diverse environments and extending the life of the shunt.

Material preparation: The first step in making an Electrical Meter Shunt is to prepare the necessary materials. Manganese copper alloy is typically composed of copper, manganese, and trace elements to enhance its conductivity and strength. Selecting the right manganese copper alloy is crucial to ensuring the performance of the shunt. Other supporting materials, such as insulation, connecting wires, and fasteners, are also required.

Material Cutting: After material preparation, the manganese copper alloy is cut. According to the design drawings, the manganese copper material is precisely cut using a laser or water jet cutter to ensure that each Relay Resistor Shunt meets the required size and shape. Care must be taken to protect the manganese copper surface during the cutting process to avoid scratches or damage.

Processing and Forming: After cutting, the Manganin Copper Shunt requires further processing and forming. Stamping, forging, or extrusion are typically used to form the manganese copper material into the desired shape and size. During this process, the physical properties of the manganese copper must be maintained to avoid degradation of the material due to high temperatures.

Surface Treatment: Surface treatment is essential to enhance the corrosion resistance and aesthetics of the Copper Manganin Shunt. Common surface treatment methods include electroplating, spraying, and oxidation. These treatments not only enhance the durability of the shunt but also improve its adaptability to various environments.

Assembly and Testing: After the various components of the Electrical Meter Shunt are machined, the next step is assembly. The surface-treated manganese-copper components are assembled with their supporting materials to ensure that each connection point is secure and reliable. After assembly, electrical testing is performed to ensure that the shunt can properly distribute current under operating conditions.

Quality Inspection: After assembly and testing, the Relay Resistor Shunt undergoes rigorous quality inspection. This process includes dimensional inspection, electrical performance testing, and corrosion resistance testing. Only shunts that pass all inspections are released to the market, ensuring user safety and device stability.

Shunters have a wide range of applications in circuits. For example, in switching power supplies, Manganin Copper Shunts can be used to detect current flow. If the current exceeds the specified value, the power supply automatically shuts off the circuit to protect it from burnout. In motor control, shunts can be used to detect motor current, thereby controlling motor speed and torque. In charging stations, shunts can be used to detect battery charging current, thereby controlling the battery's state of charge.

The production process of Copper Manganin Shunts involves multiple steps, from material preparation to final packaging, and each step is crucial. Through appropriate material selection, precise processing, and strict quality control, high-performance shunts can be produced. These shunts play an essential role in electrical and electronic equipment, ensuring stable operation.

Notably, our company's Manganese Copper Shunts are high-performance shunts manufactured to these stringent standards. Made of high-quality manganese-copper material, they undergo precision processing and rigorous quality testing, ensuring highly accurate and reliable data acquisition for current measurement. Whether used for household electricity metering or industrial power monitoring, our products provide stable and accurate operation, providing strong support for precise metering and making them an indispensable and premium choice for your electricity meter-related equipment.
