Self-Clinching Screw Usage and Manufacturing Process

Fasteners are indispensable basic components in industrial manufacturing systems. Screws, as the most common fastening components, are widely used in many fields such as machinery, electrical sheet metal, and communication equipment. Although small in size and ordinary in appearance, they play a core role in connecting components and fixing structures. The overall assembly stability and service life of a product are often closely related to these small screws. Among the many types of screws, Self-Clinching Screws have become a commonly used accessory in sheet metal processing and precision assembly industries due to their advantages, such as convenient assembly, firm fixing, and strong adaptability. Understanding their correct usage and standardized manufacturing processes has significant practical value for industrial production and processing.

The application of Self-Clinching Bolts originated in the precision manufacturing industry and has long been widely used in the production scenarios of telecommunications equipment, sheet metal chassis, and precision instruments, adapting to the assembly needs of various metal sheet substrates. Their installation method differs from ordinary threaded screws; they do not require traditional drilling, tapping, and nut assembly. They use the principle of physical plastic deformation to achieve fixing, resulting in a simple and efficient overall assembly process.

In actual operation, firstly, standard small holes matching the specifications of the Self-Clinching Compression Screw must be pre-drilled on the metal substrate. The hole diameter must strictly conform to the product parameters to avoid loosening due to being too large or failing to install due to being too small.

Then, the Clinching Screw is smoothly placed into the pre-drilled holes, controlling the installation direction to prevent misalignment. Next, using professional crimping equipment, pressure is applied evenly to the screw head while maintaining a horizontal position. Under pressure, the surrounding substrate metal undergoes plastic deformation, tightly wrapping the screw's retaining structure, forming an irreversible locking effect. This integrates the screw with the substrate, providing strong tensile strength and stability, making it less prone to loosening or falling off.

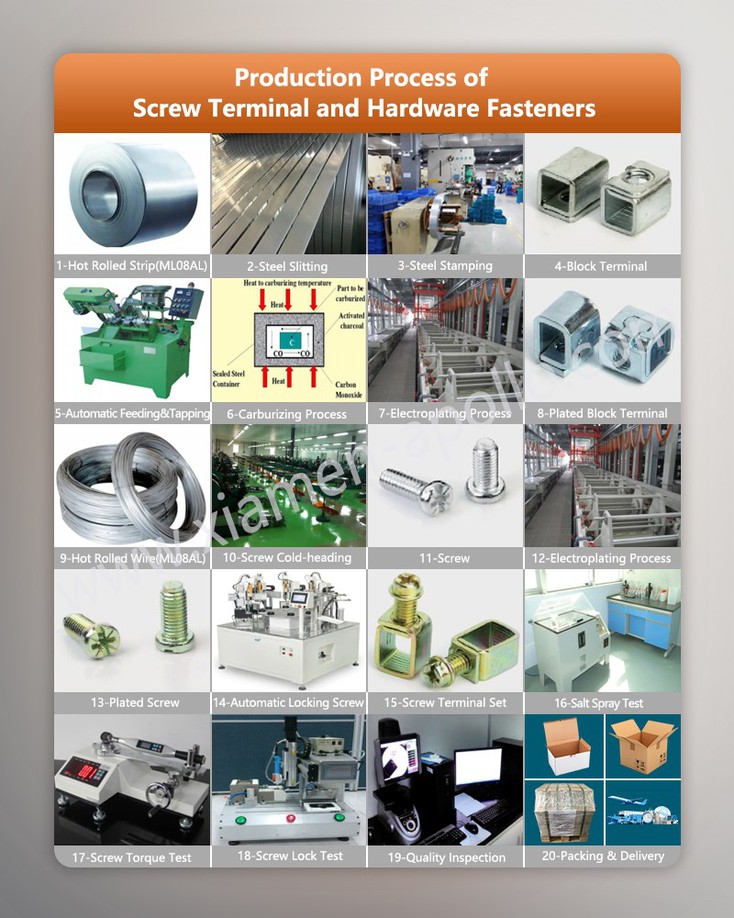

In terms of manufacturing, the Self-Clinching Stud has a mature and standardized process. At the initial stage of production, raw materials are selected based on the application scenario. Commonly used materials include metals such as iron, stainless steel, and copper, with different materials suitable for different requirements, such as general working conditions, corrosion-resistant conditions, and conductive conditions.

After determining the material, key parameters such as the specifications, model, outer diameter, and overall length of the Self-Clinching Threaded Fastener are precisely finalized, providing a standard basis for subsequent production. Once the parameters are determined, a dedicated production mold is matched. Standard specifications can directly use general-purpose molds, while non-standard customized models require separate mold creation to ensure product precision.

Next, cold heading is performed using specialized upsetting equipment to shape the overall shape and structural contour of the Self-Clinching Screw. After forming, the threading process begins, using specialized equipment to process standard threads to ensure thread engagement accuracy. Finally, depending on the usage environment requirements, surface treatments such as electroplating and rust prevention are applied to improve the product's corrosion resistance, oxidation resistance, and extend its service life.

Today, with the continuous development of the sheet metal processing and intelligent equipment industries, the application scenarios of Self-Clinching Bolts are constantly expanding. With its simple assembly method and stable connection performance, it has become an irreplaceable basic fastener in modern industrial assembly. Mastering its usage specifications and production logic has become essential professional knowledge for practitioners in related industries.
